Product Description

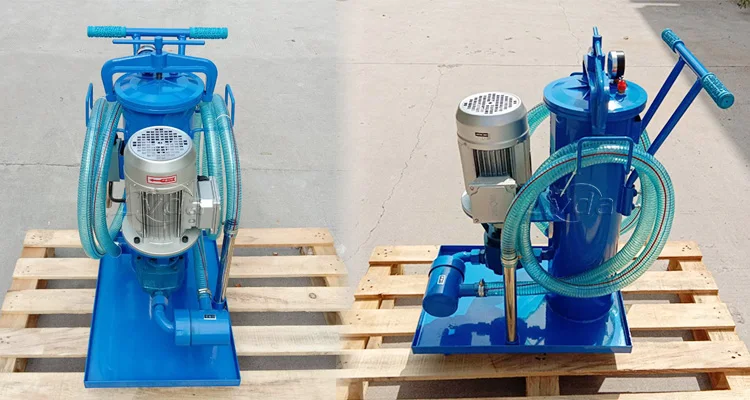

Decolorization oil purification filter machine

The oil purifier includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability, and stable operation. The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system. Use thermal relay protection to prevent motor damage caused by motor overload.

The coarse filter at the suction port protects the oil pump and prolongs the service life of the main filter. There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness. The precision filter can be selected according to the different needs of users with different precisions to meet the required requirements. The oil filter housing adopts a quick-opening structure, and without any tools, the upper cover can be opened quickly and the filter element can be replaced. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the filter element when it is working.

Part number	AOP-M32B	AOP-M50B			AOP-M63B	AOP-M100B
Rated flow	32 L/min	50 L/min			63 L/min	100 L/min
Rated pressure	0.6 Mpa
Original pressure loss	≤0.02 Mpa
Coarse filter accuracy	100 μm
Primary filtration accuracy	10 μm, 20 μm, 40 μm
Secondary filtration accuracy	3 μm, 5 μm, 10 μm
Motor power	0.75 Kw	1.1 Kw		1.5 Kw		2.2 Kw
Voltage	AC 380V three-phase
Weight	78 Kg	96 Kg	102 Kg			120 Kg
Dimensions(mm)	520×350×950	720×680×1020	720×680×1020			720×750×1020

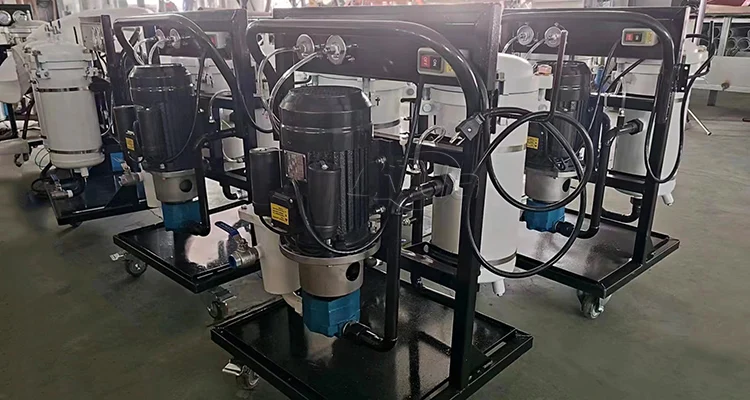

Oil purifier machine

Oil purifier machine, also known as oil filter machine, oil filter cart. Its function is to filter and purify the contaminated oil, restore or improve the properties of the oil itself. Including oil cleanliness, water content, air content, acid value, viscosity, flash point, dielectric strength, color, etc., and can effectively remove impurities in the oil to ensure the safe operation of oil equipment. The hydraulic oil, lubricating oil, and transformer oil used in industrial production will contain many impurities after a period of use, and these impurities will affect the quality of the oil. The use of an oil purifier can effectively remove various impurities in the oil. Users can also choose different oil purifiers according to the types of impurities.

Type of oil purifier we can produce

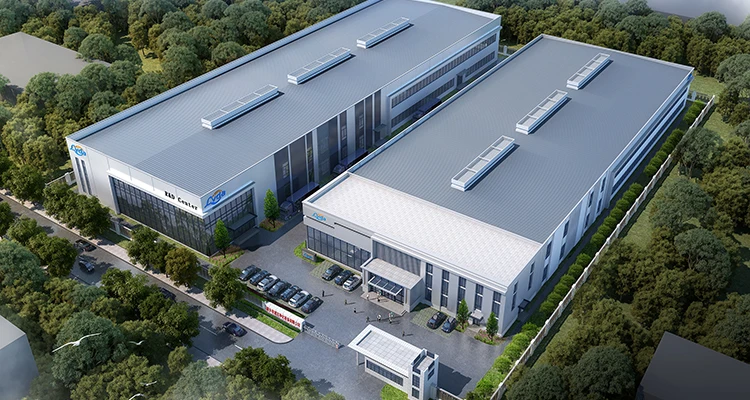

Company Profile

LVDA

Xinxiang Lvda Purification Equipment Co., Ltd. is a factory with more than 20 years of production experience. We specialize in the production, development and sales of filters, hydraulic filter elements, air compressor filters, oil filters, water filters, metal filters, oil filters and other products, and can also be customized according to customer requirements. Customers in more than 100 countries including Asia, Europe, North America, South America, Africa, etc.
lvda has been recognized in the professional field and has been continuously praised by customers.

Certifications

Feedback

Customer Photos

FAQ

1. Do you accept OEM?
A: Yes. we can produce according to your requirement.

2. Can you print my company logo and package?How long does it take to produce?
A: Yes, of course we can print your company loge and package, you just show your logo to me, and then we will
do it for you.
Normally, we produce it need 4-6 working days.

3. What is your MOQ?
A: We can accept 1pcs sample. If more quantities, more favorable price.

4. Payments accepted
A: Bank-transfer, Creditcard, Paypal, Telegraphic Transfer Remittance (TT).

5. What is our shipping ways?
a. By sea and by air.
b. If you always import goods from different city in China, we suggest you to cooperate with a shipping agency to
collect goods for you from different location. If it's necessary, we can recommend someone for you.

6. How long is your Delivery Time?
A:If there has stock, the delivery time is about 5 working days after receiving your payment.

Order Tips
If you are not sure about the filter needed exactly,please advise its exact working environment and usage.We help you choose certain suitable filter.
