Single Bag Filter Housing SS Water Filter Housing

(11 Lượt)

Wuxi Ewater Water Treatment Co., Ltd.

Nhà sản xuất, chế tạo • 2 năm

Giá

4,200,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Single Bag Filter Housing SS Water Filter Housing

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Single Bag Filter Housing SS Water Filter Housing

Nhà cung cấp

Wuxi Ewater Water Treatment Co., Ltd.

Thông tin nha cung cấp của bạn

Wuxi Ewater Water Treatment Co., Ltd.

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Category

PRODUCT CATEGORIES

FRP TANK

Cartridge and Bag Filter Housing

Cartrige and Ro Membrane

Product Description

0.22micron Pleated Cartridge 20inch Clear Water Filter Housing

Housing body material:SS304, SS316L, nice and high quality.

SS multi cartridge filter housing

Cartridge filter, also known as security filters, generally set before the pressure vessel to remove the tiny particles whose turbidity above 1 degree, to meet the requirements of the follow-up process of water; sometimes, it is also set at the end of the entire water system to prevent small particles (such as broken resin) into the finished water.

We also customized filter housings according to requirement.

Working Principle

Multi cartridge filter housing Working Principle

Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria.Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter.Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.

Technical Parameter

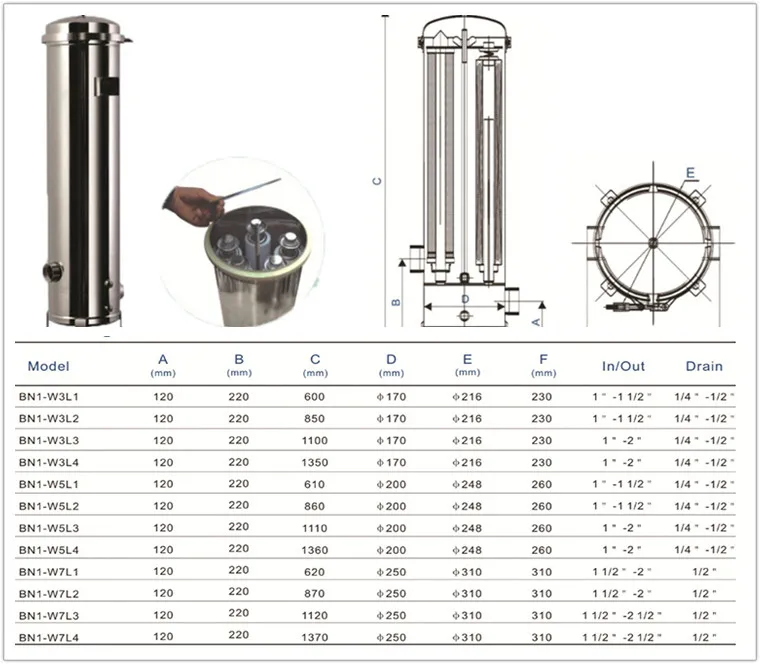

Parameter of Multi cartridge filter housing

Working pressure:	0.6 / 1.0 / 1.6Mpa
Body Material:	Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
Operating temperature:	5 ~ 40 ℃ (exceed 60 ℃ to be informed)
Design temperature:	5 ℃ -100 ℃
Replace the pressure:	0.05Mpa-0.07MPA
Filter interface:	flat compression, plug-in
Cylinder and base connection mode:	quick opening, flanged
Filtration accuracy:	1μm ~ 100μm
Cartridge Quantity:	1 core to 180 cores
Filter Length:	10 "~ 40"
Seal type:	O-ring or flat washer
Seal Material:	PTFE, rubber.
Outside treating :	matte jet beads, mirror electrolytic polishing.
Sealing material:	nitrile rubber, silicone, Viton, standard configuration for the silicone seal.
Interface Type:	GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.
Flange Standard:	GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)
Manufacturing, testing standard:	GB150 standard, or user-specified criteria.
