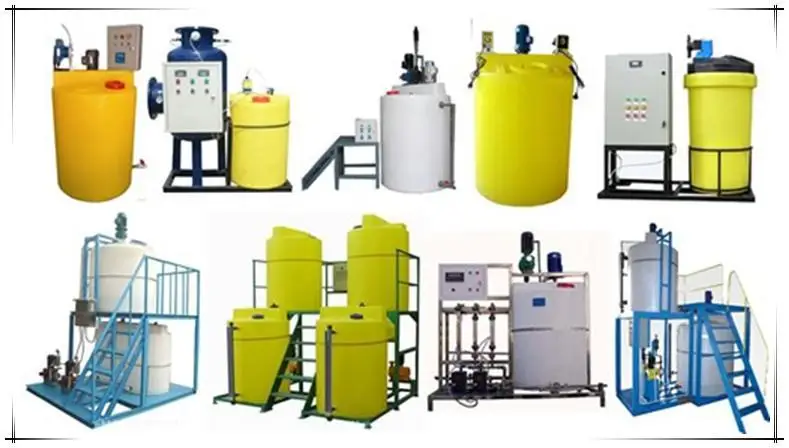

Chemical 100L LLDPE Dosing Tank with Scale Markings for Dosing System

Chemical 100L LLDPE Dosing Tank with Scale Markings for Dosing System
Các đề xuất khác cho doanh nghiệp của bạn
Những điểm chính về sản phẩm
Thuộc tính cụ thể của ngành
Các thuộc tính khác
Mô tả sản phẩm từ nhà cung cấp
Mô tả sản phẩm
best seller potable water storage chemical dosing tank plastic white container low price
1. Major Material: LLDPE food-grade raw plastic
2. Process: Rotational Molding
3. Common color: White, black, red, orange, blue, and yellow
4. Uniform wall thickness.
5. Thickness and weight can be varied for extra strength requirements.
6. Excellent material guarantee the long period of useful life.
7. Performance:
One-piece rotomolding product,
No welds or joints to fail.
Advantage:
Theproductistough,flexible,anti-impactandcorrosion-resistant.Thematchingmixerisdividedofdirectstirandsidestir,thedirectmixerrequiresmatchedstrengtheningboardandtanks,whilethesidemixercanbeequipwithfixedmounttoimproveitsstireffectandtankbodyservicelife.Thetypesofstirrermaterialisstainlesssteel.
Applyscope:
Inwatertreatmentmainlyusedinallkindsofagentiamixing,dissolve,storage,thenpassbymeteringpumptodosesolution.
Maincomponents:
1.Meteringpump
-Mechanicalactuateddiaphragm,no-leakagestructure
-PVC,PTFE,PVDF,304,316isavailableasthepumpheadmaterial
-flowcanbeadjustedduringoperation,therangeis0.5~500L/hPressurerange:0.2~1Mpa
-Automaticcontrolwhocanaccpet4~20mAisavailable(JWM-ADseries)
-Motor:standard220V/380V,50Hz Regulatingmode:manual/automatic
2.Mixer
Ratedpower: 0.18~11kW;
mixerdiameter:0.4~3m
mixingspeed: 60~200rpm
3.Solution dosingt tank
Material: LLDPE
Volume:40L to 2000L
Mixerpower:
0.18KW/0.37KW/0.55KW/0.75KW/1.1KW/1.5KW/2.2KW/3KW/4KW/5.5KW
Model | Size(MM) | WeightKG | ||
Diameter | Height | |||
Dosingtank | MC-500L | 790 | 1170 | 16 |
MC-1000L | 1020 | 1400 | 25 | |
MC-300L | 710 | 980 | 14 | |
MC-200L | 580 | 960 | 8 | |
MC-100L | 460 | 795 | 4.5 | |
MC-80L | 460 | 610 | 4 | |
MC-40L | 315 | 418 | 2.5 | |
KC-200L | 565*565 | 790 | 12 | |
KC-120L | 375*430 | 790 | 6.5 | |
KC-80L | 390*340 | 690 | 4.5 | |
KC-40L | 390*340 | 410 | 2.5 |
We are proud of our Partner/Customer’s success, as the success of our Partner/Customer "Jieming International Trading Dubai" in the Middle East. We want much more "Jieming" successes all over the world with our support, THAT ONLY IS OUR SUCCESS!
