Manufacturer Water Treatment Stainless Steel Cartridge Filter Housing

(13 Lượt)

Wuxi Ewater Water Treatment Co., Ltd.

Nhà sản xuất, chế tạo • 2 năm

Giá

7,200,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Manufacturer Water Treatment Stainless Steel Cartridge Filter Housing

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Manufacturer Water Treatment Stainless Steel Cartridge Filter Housing

Nhà cung cấp

Wuxi Ewater Water Treatment Co., Ltd.

Thông tin nha cung cấp của bạn

Wuxi Ewater Water Treatment Co., Ltd.

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Manufacturer Water Treatment Stainless Steel Cartridge Filter Housing

Product Paramenters

Model	Working Pressure	Filter Housing Size	Cartridge Length	Flow Rate
BN1-W3L2	100PSI	φ219*850	20"	3
BN1-W3L3			φ219*1100	30"	4.5
BN1-W3L4			φ219*1350	40"	6
BN1-W5L2			φ248*860	20"	5
BN1-W5L3			φ248*1100	30"	7.5
BN1-W5L4			φ248*1360	40"	10
BN1-W7L2			φ310*870	20"	7
BN1-W7L3			φ310*1120	30"	105
BN1-W7L4			φ310*1370	40"	14
BN4-W5L3	150PSI	φ200*1250	30"	7.5
BN4-W5L4			φ200*1500	40"	10
BN4-W7L3			φ250*1300	30"	10.5
BN4-W7L4			φ250*1550	40"	14
BN4-W11L4			φ300*1620	40"	22
BN4-W15L3			φ350*1420	30"	22.5
BN4-W15L4			φ350*1660	40"	30
BN4-W20L4			φ400*1700	40"	40
BN4-W27L4			φ450*1770	40"	54

Product Description

Stainless steel filter housing is known asPrecision filter,The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria.

Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter,micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the sameform of filter,it is divided into different models by their dimensions.

Main Features

1.High filtration precision, uniform pore size filter.
2.Small filtration resistance, flux, interception capability, long service life.
3.Filter is clean and no second pollution to the filter media.
4.It also can filter acid, alkali and other chemical agents.
5.High-intensity,heat-resistant,deformation resistance.
6.Low price, low running costs, easy to clean, filter can be replaced.

Applications

1.Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process.
2. Pharmaceutical industry: sterile water, oral, infusion and injection water treatment.
3. Electronics industry: water preparation semiconductors, instruments, picture tubes and other production plants, wash water
filtration bar.
4. Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
5. Oil industry: oil field water injection preparation and so on.
6. Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater
treatment.
7. Seawater, brackish water desalination water treatment, hotels, apartments water treatment.
8. Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices

Details Images

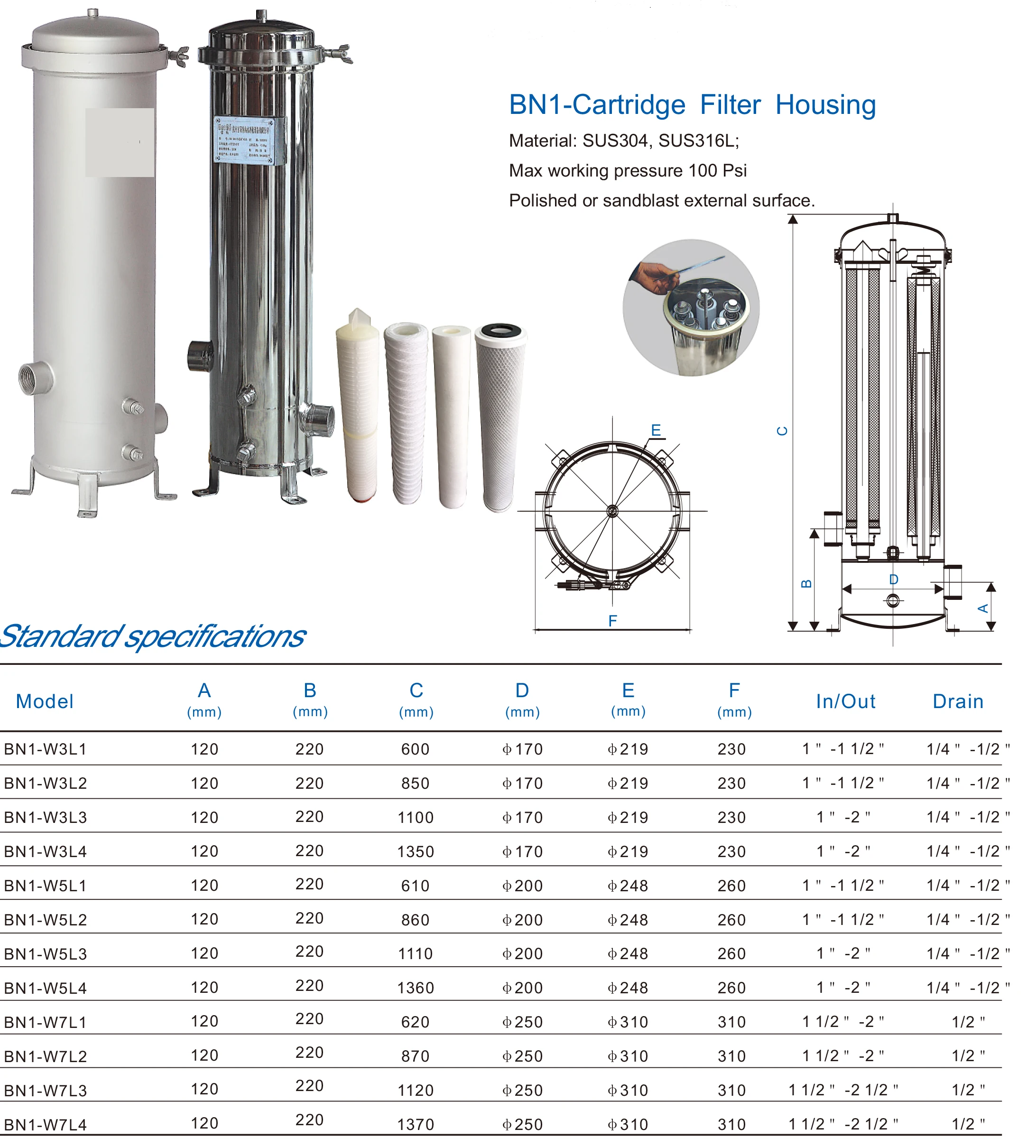

1.Cartridge Filter Housing

Cartridge filter, also known as security filters, generally set before the pressure vessel to remove the tiny particles whose turbidity above 1 degree, to meet the requirements of the follow-up process of water; sometimes, it is also set at the end of the entire water system to prevent small particles (such as broken resin) into the finished water.

Commonly used wound filter and meltblown filter
Wound filter (also known as honeycomb filter), there are two types: one is polyp
ropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 ℃; the other is cotton fiber - stainless steel frame filter, the maximum temperature 120 ℃.
Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 ℃. Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.

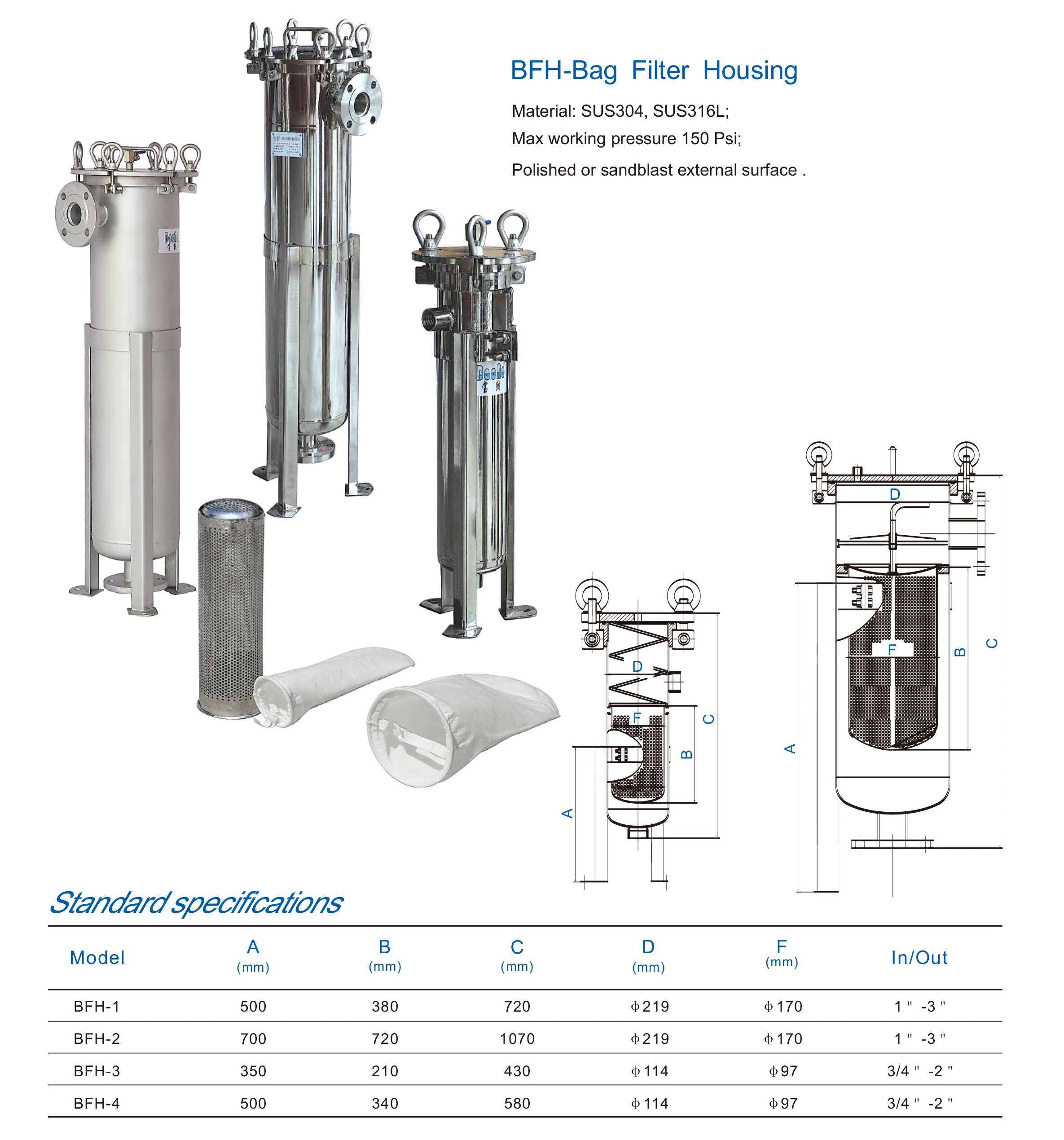

2.Bag Filter Housing

Filter Housing for water filtration system Style:Single Bag,Multi-Bag,Duplex , Movable Single Filter Bag Housing for water filtration system.
1.Material:SS304,SS316L bags Single Filter Bag Housing
2.Design vessel pressure :0.6-1.0Mpa bags filter housing
3.Operate temperature:-20-140°C bags Single Filter Bag Housing
4.Filtering accuracy: 0.1-20um bags Single Filter Bag Housing
5.Filter Bag type:#1,#2,#3,#4bags Single Filter Bag Housing
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter bags Single Filter Bag Housing
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry, Electronic Industry and So On.

●#1 flow rate --15T/H

●#2 flow rate --30T/H

●#3 flow rate --5T/H

●#4 flow rate --8T/H

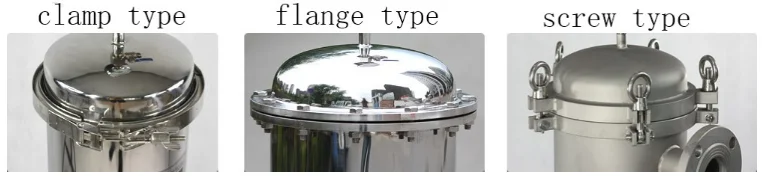

Structural classification

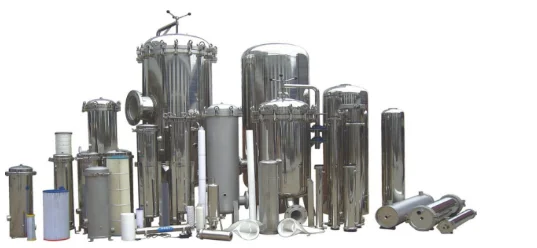

Recommend Products

More Related Products

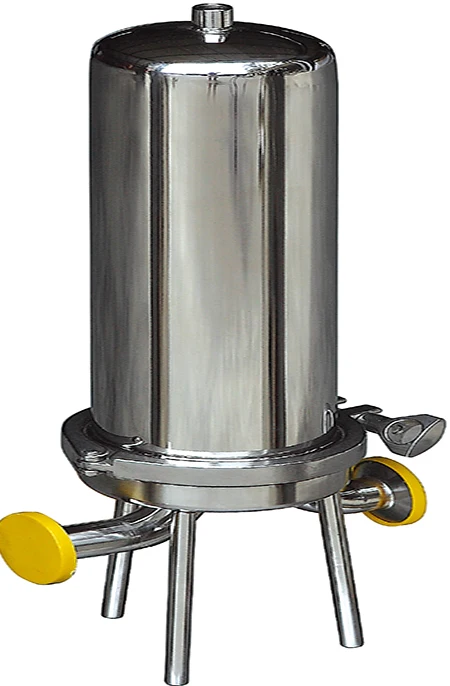

This Sanitary filter can be used to filter wine /beer /juice .Appreciated more questions.

Product packaging

Wooden case is the best and most safe way to pack the filter housing,or according to customer requirements.

Company Profile

Wuxi EWATER Water Treatment Co.Ltd. is a one-stop purchasing, exporting, delivering service provider in Water industry field, located in International Environmental Protection Zone,Yixing,China. Facilitated with the largest manufacturer of FRP Tank---Canature Huayu Environmental Products Co,.Ltd(the founder’s co-owned factory), and plentiful manufacturers of water treatment products in China, we provide the most cost- effective products and considerately customized service for our customers like Engineering Company /Water treatment product distributor and Users in water treatment industry all over the world. We are proud of our Partner/Customer’s success, as the success of our Partner/Customer “Jieming International Trading Dubai” in the Middle East, we want much more “Jieming” successes all over the world with our support, THAT ONLY IS OUR SUCCESS!

Our Advantages

Professional marketingpersonnel 1. At least 2 months of technical product training before work. 2. Reply your inquiries in 5 minutes; submit the competitive price in 2 hours. 3. Business English major and Communicate smoothly. Professional design team

1. Custom-built filters to meet your project requirements. 2. Design in 2 hours for free. 3. After sales service engineers available to service machinery overseas or making phone calls. Solving problems in 1hour.

4.Strictly follow the standards certified by ASMI to produce filter and accessories details, and strictly control the quality and after-sales service.
