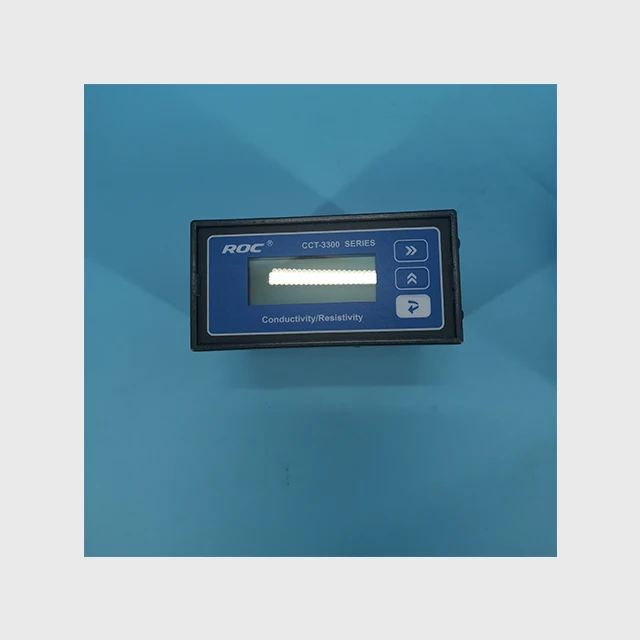

High Precision CCT-3320 Online Conductivity TDS Meter Tester With 4-20MA Signal and Relay

(6 Lượt)

Wuxi Ewater Water Treatment Co., Ltd.

Nhà sản xuất, chế tạo

1 yrs

High Precision CCT-3320 Online Conductivity TDS Meter Tester With 4-20MA Signal and Relay

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

High Precision CCT-3320 Online Conductivity TDS Meter Tester With 4-20MA Signal and Relay

Nhà cung cấp

Wuxi Ewater Water Treatment Co., Ltd.

Thông tin nha cung cấp của bạn

Wuxi Ewater Water Treatment Co., Ltd.

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Specification

CCT-3320

CCT-3320 series is a new developed conductivity/resistivity integration controller.

Please select the suitable electrode in application. You could only set the electrode type in the menu, and the instrument could run in conductivity or resistivity measurement automatically.

The engineer unit could be selected according to your requirement without any announcement when you place an order.

Measuring range：0~2000 mu S/cm, divided into 0 to 20 S/cm, 0 to 200 S/cm, 0~2000 S/cm three range.
Display mode：31/2 bit, 0.5 "LCD conductivity direct reading display (with backlit display)
Temperature compensation：Automatic temperature compensation, compensation base 25℃, compensation range 0~60 C
Measurement accuracy：±2%（F·S）
Electrode configuration：1.00cm-1 plastic foil gold electrode. 4'pipe thread connection, the length of wire is 5 meters
Signal output：4 ~ 20mA current signal (optional)
Shape size:Ambient temperature: 0-40 C, relative humidity: less than 85%, medium temperature: 0~50 C
Product inspection basis: JB/T6855
Signal line length: 5

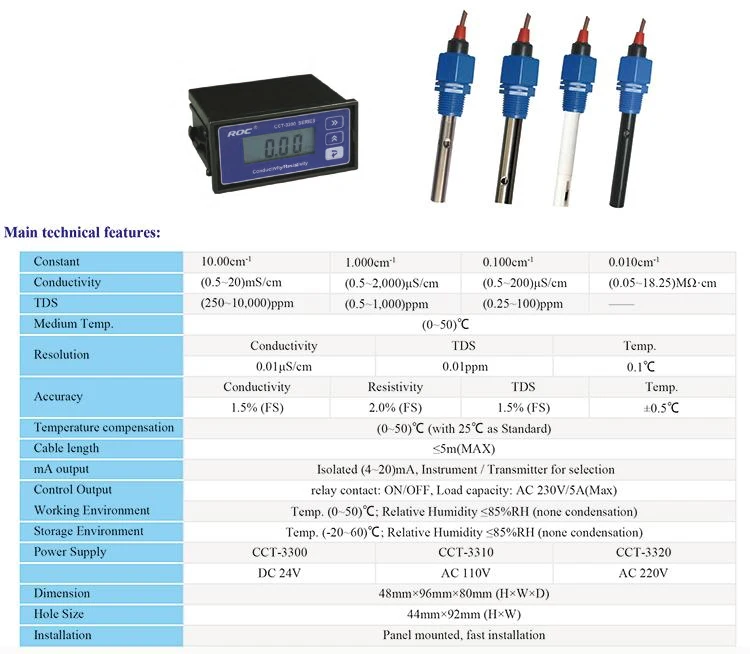

Conductivity/TDS Meter	relay	4-20mA	Sensor	Measurement range
CCT-3320V （AC220V）	×	×	1.0cm-1 plastic CON1134-13 Cable length:3M	Conductivity: 0-2000μs/cm TDS:0-2000ppm
CCT-3320T （AC220V)	×	√	1.0cm-1 plastic CON1134-13 Cable length:5M	Conductivity: 0-2000μs/cm TDS:0-2000ppm
CCT-3320 （AC220V）	√	√	0.01cm-1 st.st CON3131-13 Cable length:10M	Resistivity: 0-18.25MΩ·cm
					0.1m-1 st.st CON3133-13 Cable length:5M	Conductivity: 0-200μs/cm TDS:0-100ppm
					1.0cm-1 plastic CON1134-13 Cable length:5M	Conductivity: 0-2000μs/cm TDS:0-1000ppm
					10.0cm-1 graphite CON2136-13 Cable length:5M	Conductivity: 0-20000μs/cm TDS:0-10000ppm

Packing & Delivery

Installtion of electrode:

Please strictly select installation position and installation mode. Since the incorrect installation will cause the reading error.
