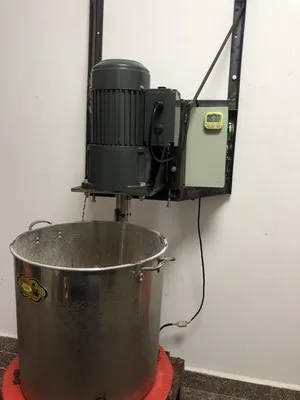

Adjustable Speed Industry Liquid Chemical Soap Agitator Mixer For Food and Soap Oil


Technical parameters: Power: 0.1KW-2.2KW
Range speed regulation
Speed ratio 3 speed range: 194-821r/min
Speed ratio 60 speed range: 10-41r/min
Speed ratio 200 speed range: 3-12r/min


Applyscope:


Maincomponents:
1.Meteringpump
-Mechanicalactuateddiaphragm,no-leakagestructure
-PVC,PTFE,PVDF,304,316isavailableasthepumpheadmaterial
-flowcanbeadjustedduringoperation,therangeis0.5~500L/hPressurerange:0.2~1Mpa
-Automaticcontrolwhocanaccpet4~20mAisavailable(JWM-ADseries)
-Motor:standard220V/380V,50Hz Regulatingmode:manual/automatic

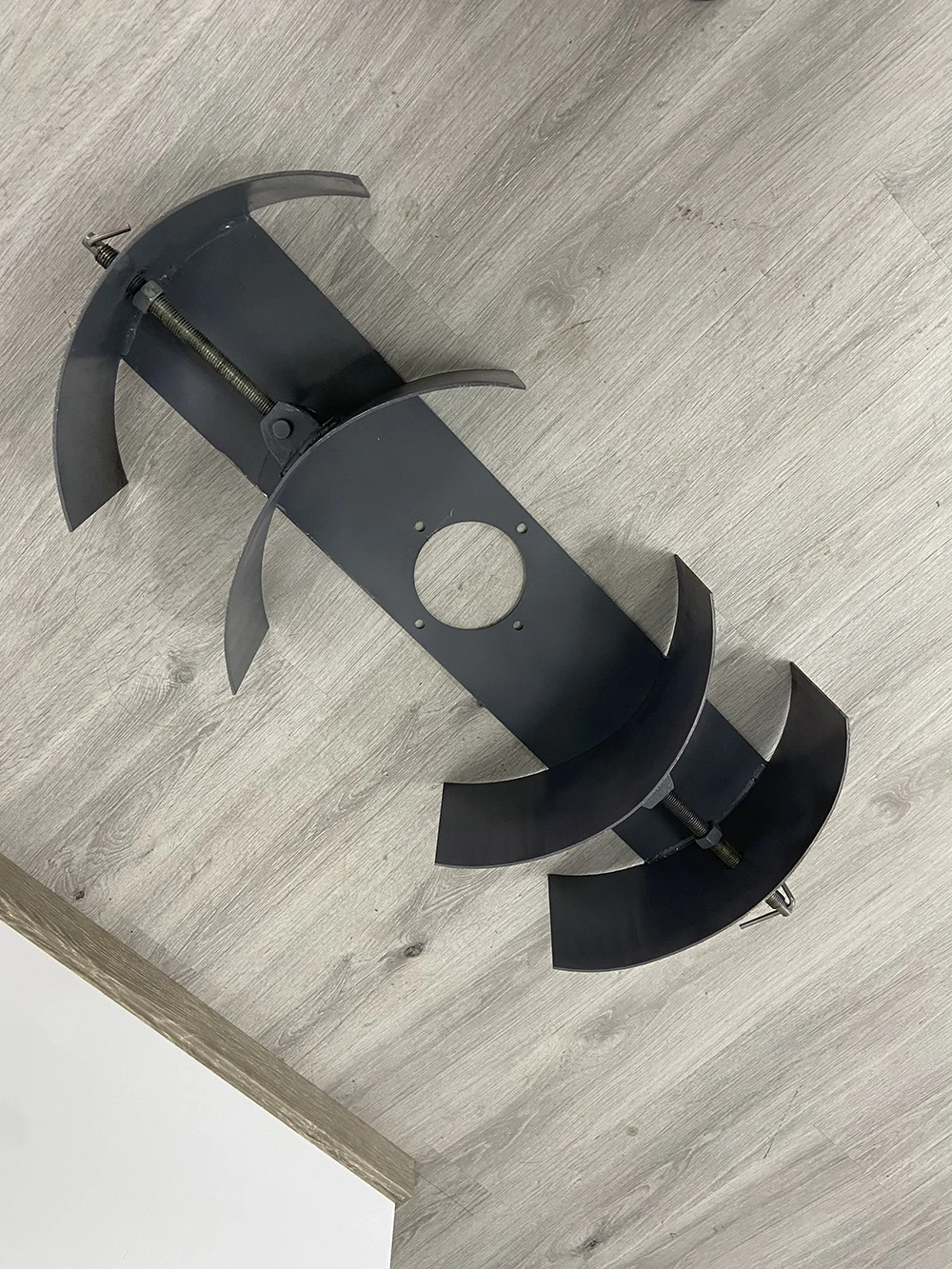

2.Mixer
Ratedpower: 0.18~11kW;
mixerdiameter:0.4~3m
mixingspeed: 60~200rpm
3.Solution dosingt tank
Material: LLDPE
Volume:40L to 2000L
Mixerpower:
0.1KW/0.2KW/0.4KW/0.75KW/1.5KW/2.2KW
| Model | Size(MM) | WeightKG | ||
| Diameter | Height | |||
| Dosingtank | MC-500L | 790 | 1170 | 16 |
| MC-1000L | 1020 | 1400 | 25 | |
| MC-300L | 710 | 980 | 14 | |
| MC-200L | 580 | 960 | 8 | |
| MC-100L | 460 | 795 | 4.5 | |
| MC-80L | 460 | 610 | 4 | |
| MC-40L | 315 | 418 | 2.5 | |
| KC-200L | 565*565 | 790 | 12 | |
| KC-120L | 375*430 | 790 | 6.5 | |
| KC-80L | 390*340 | 690 | 4.5 | |
| KC-40L | 390*340 | 410 | 2.5 | |


We are proud of our Partner/Customer’s success, as the success of our Partner/Customer "Jieming International Trading Dubai" in the Middle East. We want much more "Jieming" successes all over the world with our support, THAT ONLY IS OUR SUCCESS!
