Safety Fire Resistant Insulation Fiberglass Fabric Welding Blanket

(5 Lượt)

Shandong Rondy Composite Materials Co., Ltd.

Nhà sản xuất, chế tạo

1 yrs

Giá

50,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Safety Fire Resistant Insulation Fiberglass Fabric Welding Blanket

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Safety Fire Resistant Insulation Fiberglass Fabric Welding Blanket

Nhà cung cấp

Shandong Rondy Composite Materials Co., Ltd.

Thông tin nha cung cấp của bạn

Shandong Rondy Composite Materials Co., Ltd.

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

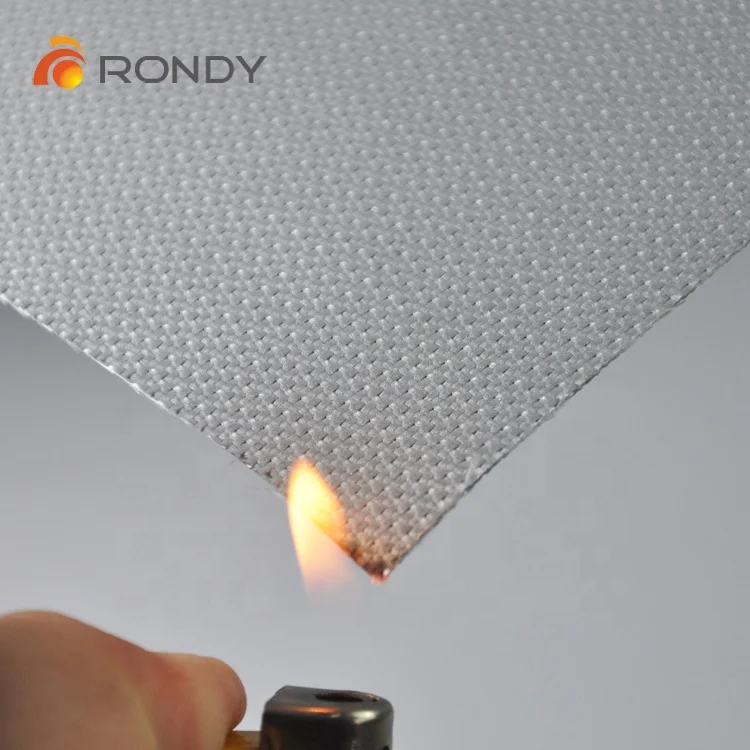

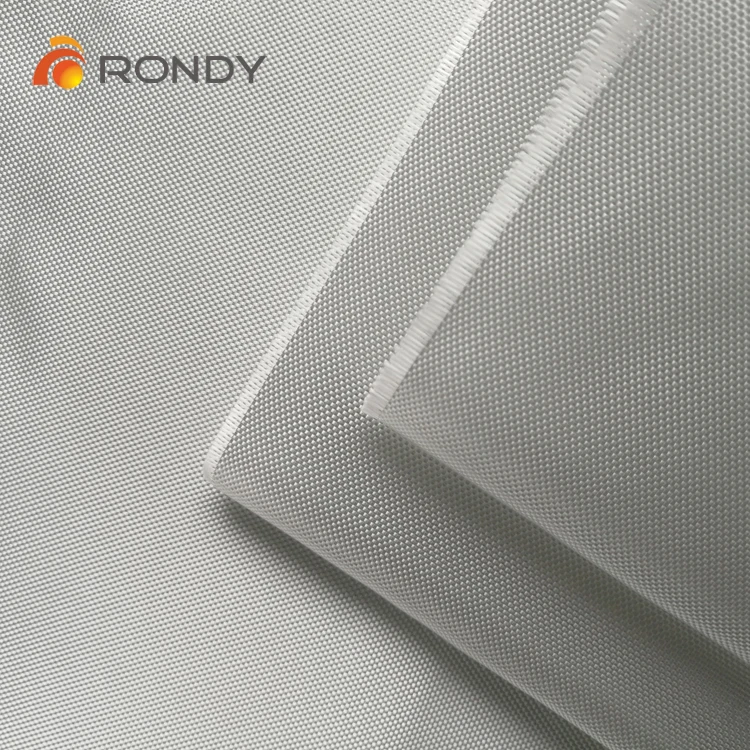

WELDING BLANKET
SERVICE TEMPERATURE : 550 C --- 1100 C

Welding blanket are made of fiberglass fabric,silica fabric or fiberglass fabric with all kinds of coating . The fabric has excellent properties due to its perfect structure and therefore offering high temperature resistance,thermal insulation and anti oxidation.

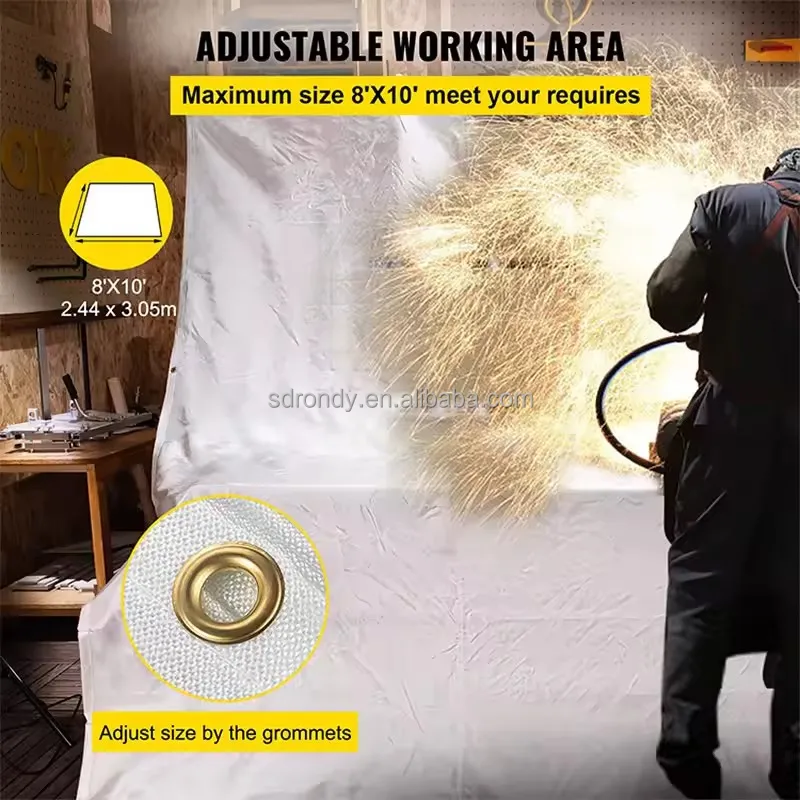

It can protect the welder from sparks,spatter and slag, ad also provide a safe and clean environment during the welding and metal cutting work. Different treatment and sizes are available on request. Eyelet or Velcro can be installed on customers’need .

These specialty welding blanket provide temperature protection from 180℃ ~ 1200℃（300˚F ~2300˚F）. Welding fire blanket can be subjected to various treatments and coatings such PVC,silicone,PU,vermiculte,acrylic etc.

0.45mm/HT800/1.7MM Fiberglass Cloth Fire Blanket

HT3788 1.7mm Fiberglass Fire Blanket

Product Code	Weave	Density counts/cm			Weight (±5%)			Thickness(±10%)		Color
Product Code	Weave			Warp	Weft	g/m2	Oz/yd2	mm	inch	Color
RD200A	Plain	18	12	200	5.9	0.2	0.008	White
RD200B	Plain	12	8	200	5.9	0.2	0.008	White
RD280	Plain	12	9	280	8.3	0.3	0.012	White
RD310	Plain	12	10	310	9.1	0.32	0.013	White
RD3732	Twill	18	10	430	12.7	0.43	0.017	White/Tan
RD600	Plain pane	15	14	600	17.7	0.6	0.023	White/Tan
RD3784	8H Satin	18	12	840	24.8	0.8	0.03	White/Tan
RD3788	12H Satin	18	12	1650	50.1	1.65	0.067	White/Tan

Silicone Coated Fiberglass Welding Blanket

Silicone coated fiberglass welding blanket is constructed from a fiberglass base cloth and coated one side or both sides with a specially compounded silicone rubber. Due to silicone rubber physiological inert, not only increase the strength, thermal insulation, fireproof , insulating properties, but also has the ozone resistance, oxygen aging, light aging, climate aging , oil resistance and other properties.

Product Code	Weave	Finish	Coating g/m2	Weight (±5%)			Thickness(±10%)			Color
Product Code	Weave	Finish	Coating g/m2					g/m2	Oz/yd2	Color	mm	inch
RD7628SO	Plain	one side	80	280	8	0.2	0.008	Grey/Red
RD7628ST	Plain	two sides	160	360	11	0.2	0.008	Grey/Red
RD3732SO	Twill	one side	80	510	15	0.45	0.018	Grey/Red
RD3732ST	Twill	two sides	160	590	18	0.45	0.018	Grey/Red
RD666ST	8H Satin	two sides	250	910	27	0.65	0.025	Grey/Red
RD3784ST	8H Satin	two sides	300	1140	34	0.9	0.035	Grey/Red

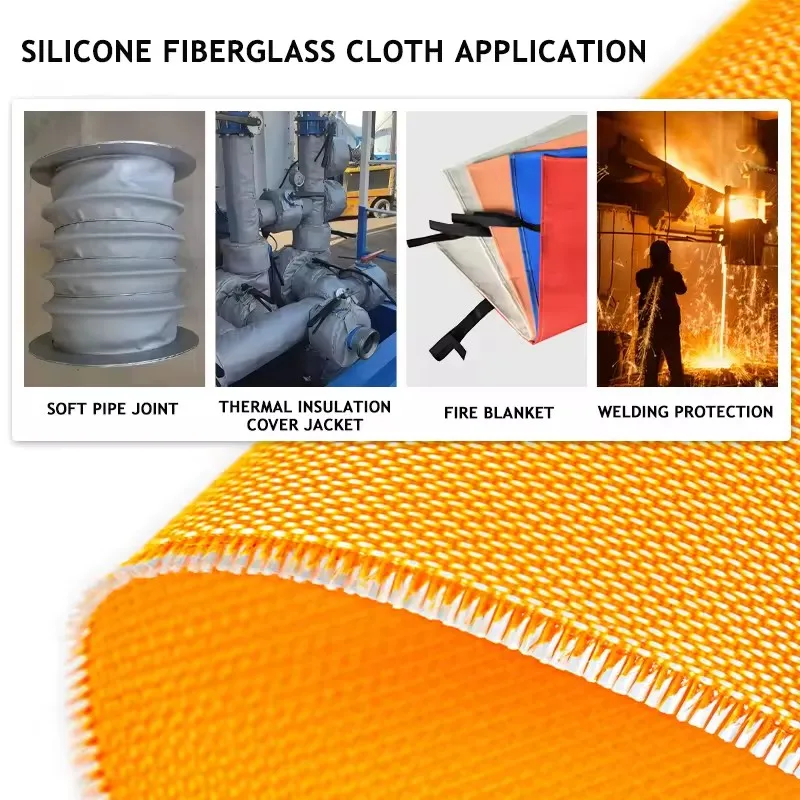

Application

Fabric expansion joints
Insulation jackets, mattress and pad
Fire doors & Fire curtains
Equipment covers
Welding/fire blankets
High temperature protection and electric insulation

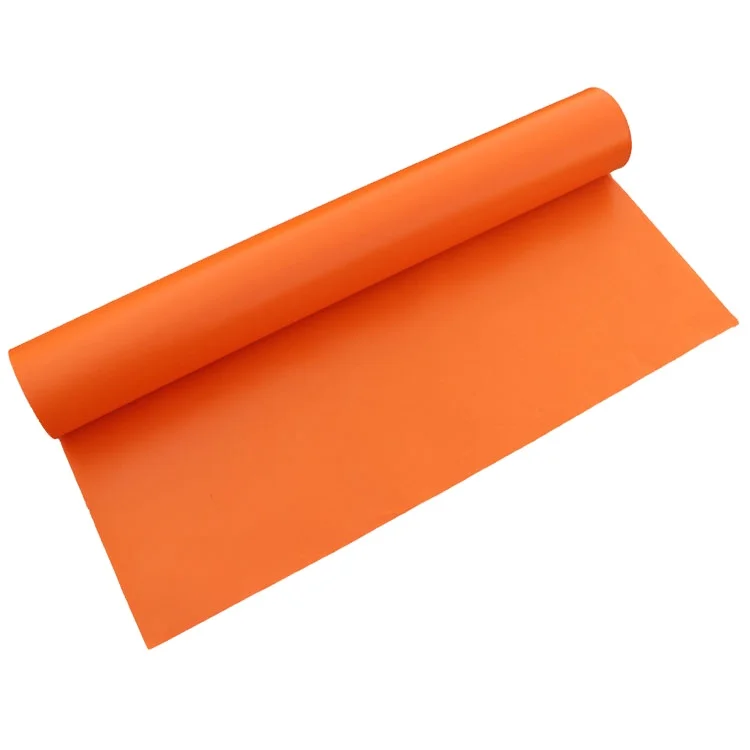

PVC Coated Fiberglass Welding Blanket

PVC coated fiberglass welding blanket is made of fiberglass basic cloth coated with PVC. It has good properties of fire resistance, weather proof and excellent water repellence. It is also ultraviolet-proofing, cold-proofing and easy to cut,mildew-proofing and corrosion-proofing; seasoning resistant; easy washing; high temperature resistant(180), good capability of heat maintaining.

Product Code	Weave	Finish	PVC g/m2	Weight (±5%)			Thickness(±10%)			Color
Product Code	Weave	Finish	PVC g/m2					g/m2	Oz/yd2	Color	mm	inch
RD200PC	Plain	PVC	150	350	10	0.2	0.008	Orange/Red
RD280PC	Plain	PVC	220	500	15	0.32	0.013	Orange/Grey
RD430PC	Twill	PVC	200	620	18	0.4	0.015	Orange/Grey
RD666PC	8H Satin	PVC	400	1000	30	0.7	0.027	Orange/Grey
RD840PC	8H Satin	PVC	400	1200	35	0.8	0.03	Orange/Grey

PU Coated Fiberglass Welding Blanket

PU Coated Fiberglass Fabric (PU coated fiberglass welding blanket ) is made of fiberglass fabric coated with Polyurethane, and composite materials with multiple functions,This offers high abrasion and fire resistance for use in many applications.
It features good rebound resilience, toughness, softness, bright in color, superior resistance to wear, cold, oil, water, aging
and weather. It also has the function of an anti bacterium, and can also be used for mould proofing, heat-insulation and
anti-ultraviolet.

Product Code

Weave

Finish

Coating g/m2

Weight (±5%)

Thickness(±10%)

Color

g/m2

Oz/yd2

inch

RD3732PO

Twill

one side

450

0.43

0.017

Grey

RD3732PO

Twill

one side

480

0.43

0.017

Grey

RD3732PT

Twill

two sides

480

0.45

0.018

Grey

RD3784PT

8H Satin

two sides

100

940

0.8

0.03

Grey

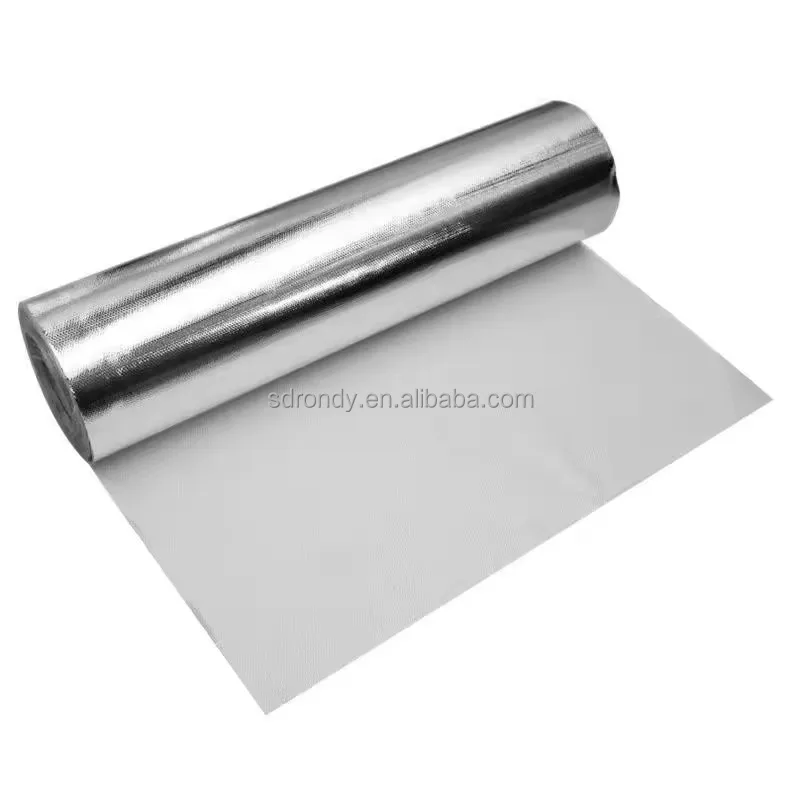

Aluminum Foil Laminated Fiberglass Welding Blanket

Aluminum foil laminated fiberglass fabrics are made of fiberglass fabrics laminated an aluminum foil or film on one side. It can resistant radiant heat, and has a smooth surface, high strength, good luminous reflectance, sealing insulation, gas-proof and water proof. The thickness of aluminum foils is from 7micro to 25 micro.

Product Code

Weave

Finish

Foil μm

Weight (±5%)

Thickness(±10%)

Color

g/m2

Oz/yd2

inch

RD3732AL

Twill

one side

440

0.45

0.018

Aluminum

RD3784AL

8H Satin

one side

860

0.8

0.03

Aluminum

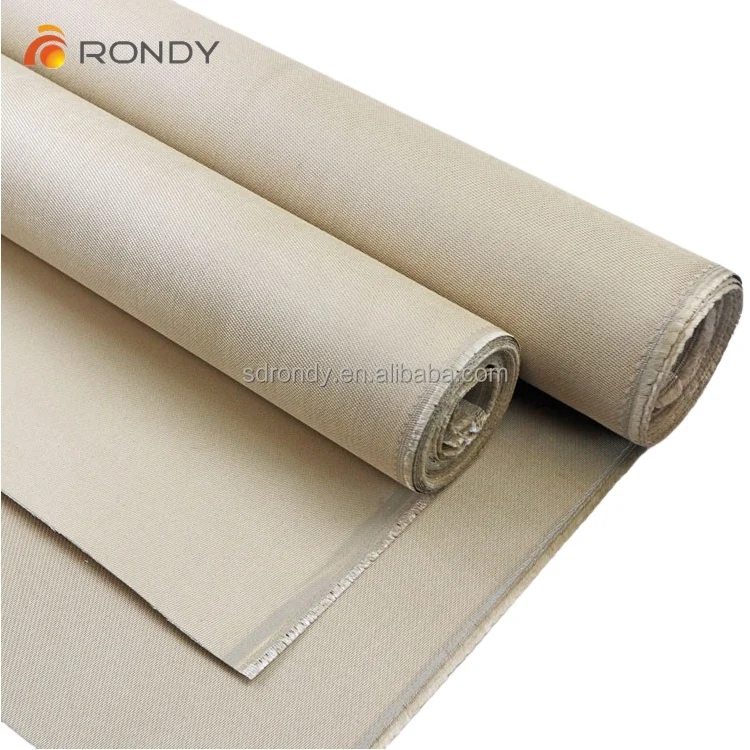

Vermiculite Coated Fiberglass Welding Blanket

Vermiculite coated fiberglass welding blanket offer high temperature and abrasion resistance. The Vermiculite coating greatly improves the fiberglass fabrics resistance to extreme temperatures. The fabrics offer a continuous operating temperature of up to 800°C with a maximum of 1000°C. Under direct flame, the fabric is odorless and virtually smokeless.

Product Code	Weave	Finish	Coating g/m2	Weight (±5%)			Thickness(±10%)			Color
Product Code	Weave	Finish	Coating g/m2					g/m2	Oz/yd2	Color	mm	inch
RD2025V	Plain	two sides	50	650	19	0.8	0.03	Tan/Black
RDM24V	Plain	two sides	50	900	26	1.2	0.05	Tan/Black
RDM30	Plain	two sides	100	1100	32	1.5	0.06	Tab/Black
RD600HSVE	8H Satin	two sides	100	660	20	0.7	0.028	Tab/Black
RD1200HSVE	12H Satin	two sides	100	1250	37	1.35	0.05	Tab/Black

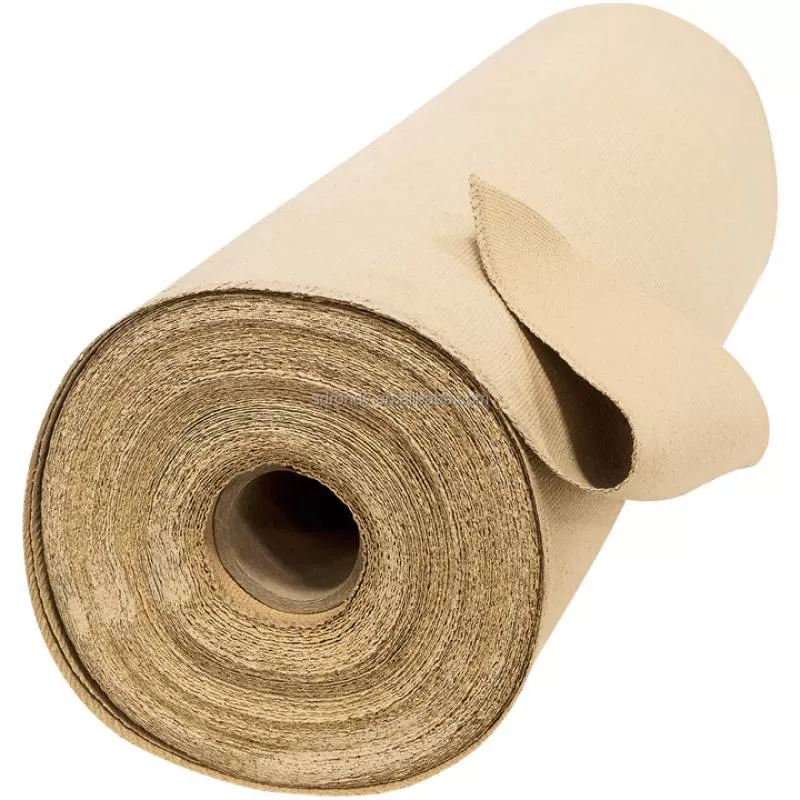

HIGH SILICA CLOTH

Highgrade 96% SiO2 silica cloth can be effectively used at steady state temperature to 1100 ℃℃（2000 ℉℉) for a long period of time,and for a short time at higher temperatures up to 1400 ℃. It has good chemical stability,high temperature resistance and good electrical insulation. According to the actual demand can add vermiculite,silicone coating . Burn Loss :3.0% Max WorkingTemperature:1100 Instantaneous temperature:1700 15minute temperature :1400 purpose Used for welding/cutting protection Molten metal splash protection Heat and flame shielding, stress relief insulation Hose and cable protection and emergency fire blankets

Product Code	Weave	Thickness（mm）	Sio2 %	Unit Weight(g/㎡)
RD600HS	920	0.6	96%	600
RD1200HS	920	1.36	96%	1200

Certifications

Product Application

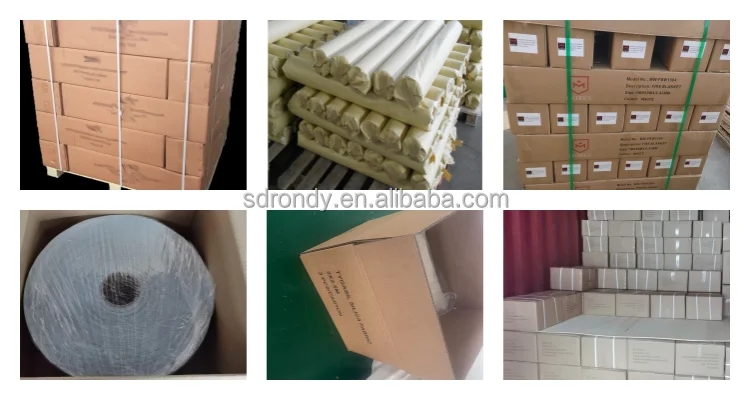

Product packaging

Inner Packing: Plastic bag

Outer packing : carton , carton on pallet

The packing detail , label and print can be customized

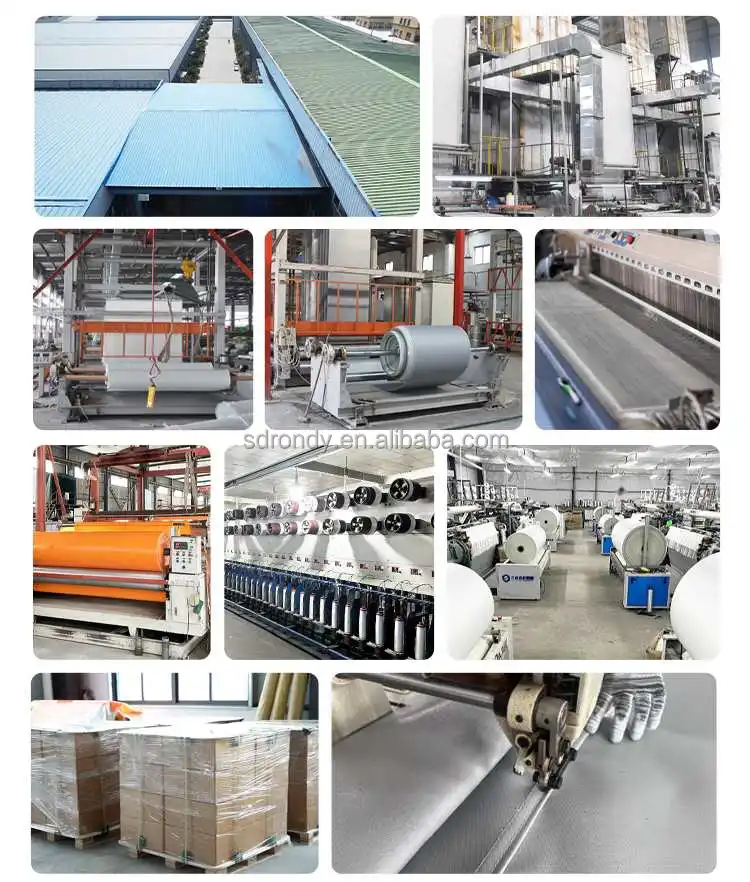

Company Profile

ABOUT US
RONDY is the professional manufacturer and exporter of hot work fabric in China .
Quality Policy Statement
We will strive to meet or exceed our customers' expections. Rondy is committed to continually improving our products ,service and the effectiveness of the quality management system to make our customers totally stisfied .
High Quality
Our service is counious and professional
Our production starts from raw material production, integrates production control, and manages production and testing according to the quality management system
Competitive
Our product and services provide exception value for our customers
