HFT650 All-in-one machine for curbstone and Terrazzo tile slab pressing color stone marble tile making machine Terrazzo tile polisher,HFT650 terrazzo tile slab making machine 1200*620 mm terrazzo floor tile press machine for sale cement tiles colored stone slabcement curbstone block making machine road edge granite step stone making machine

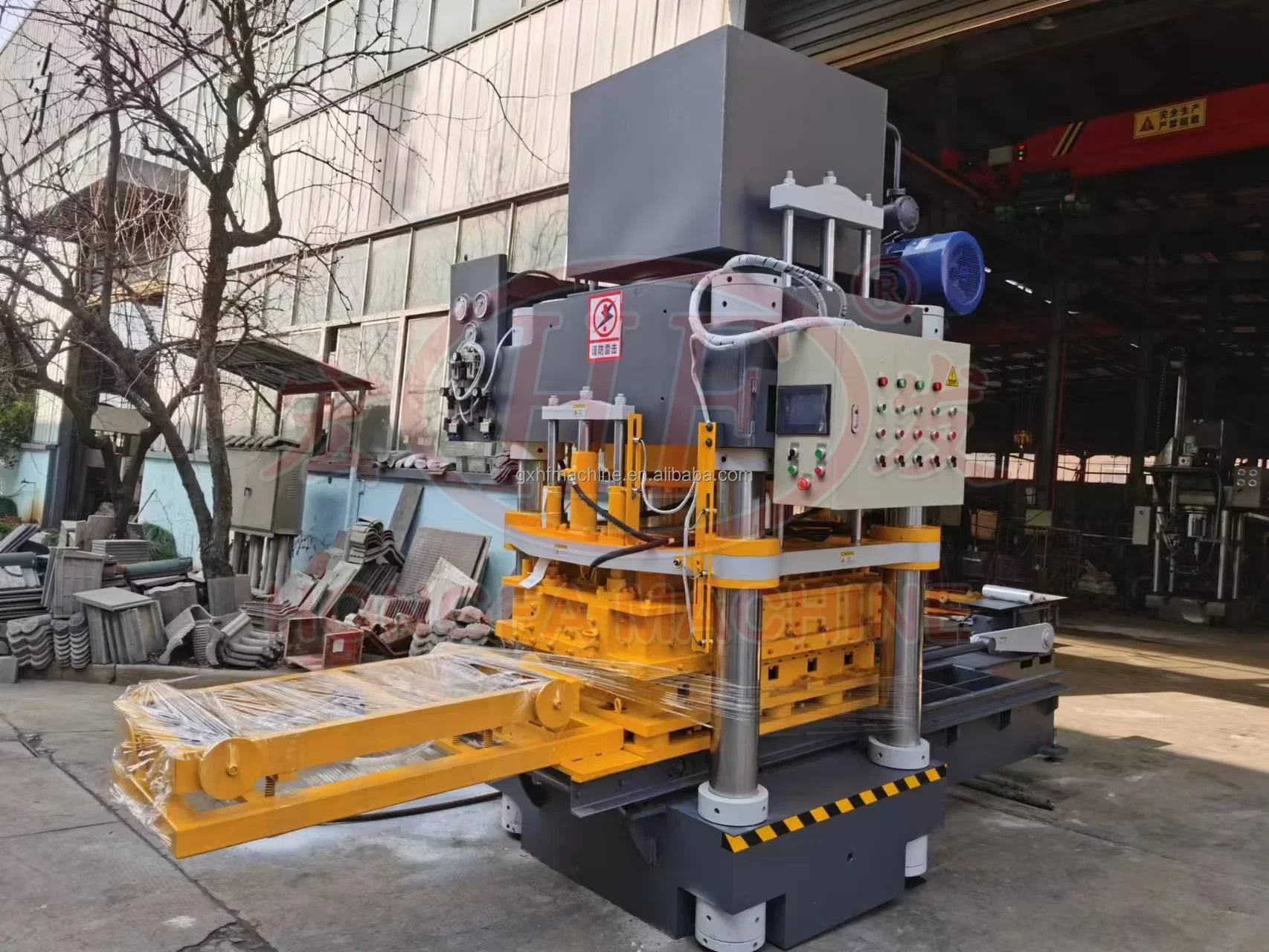

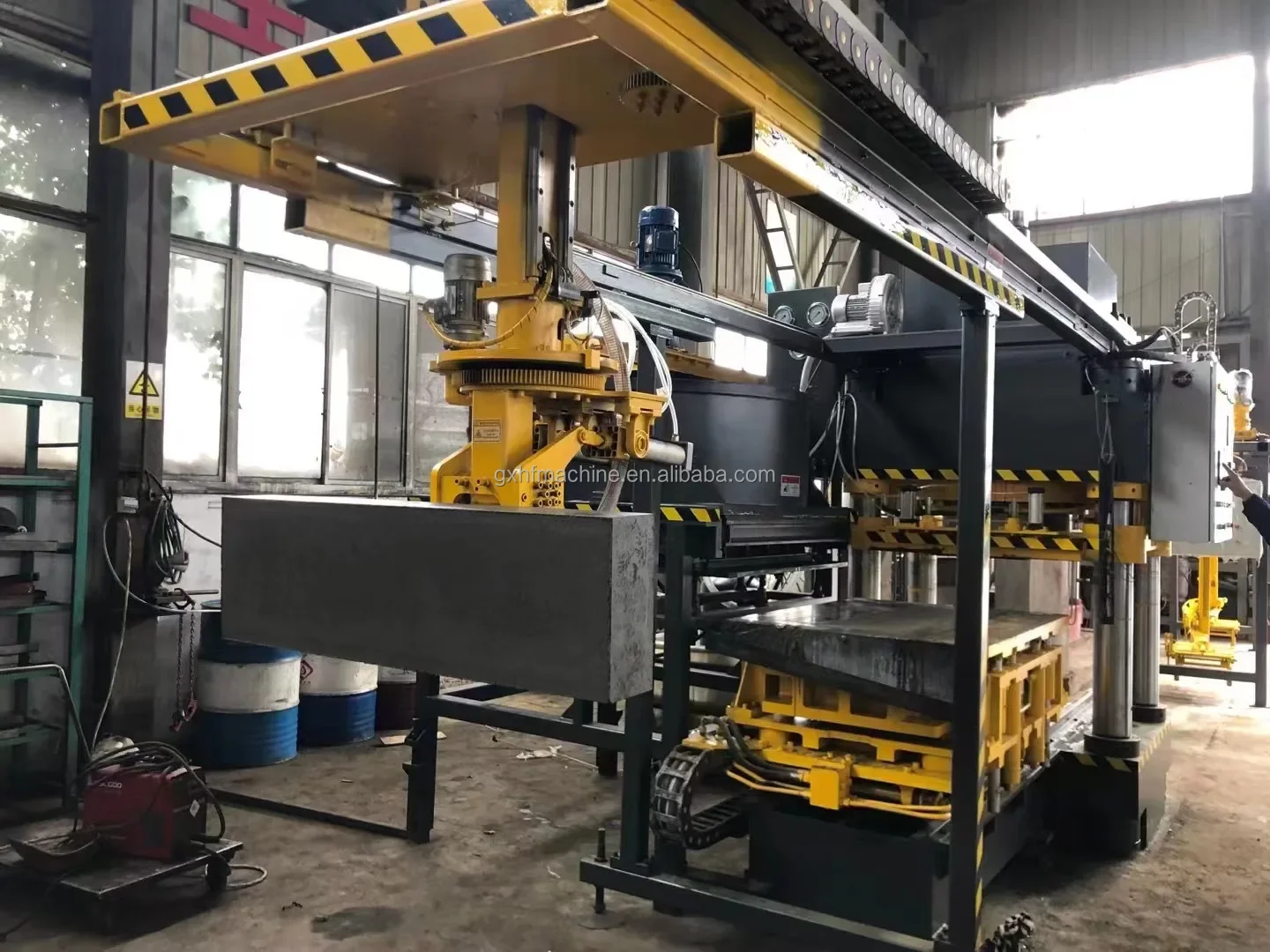

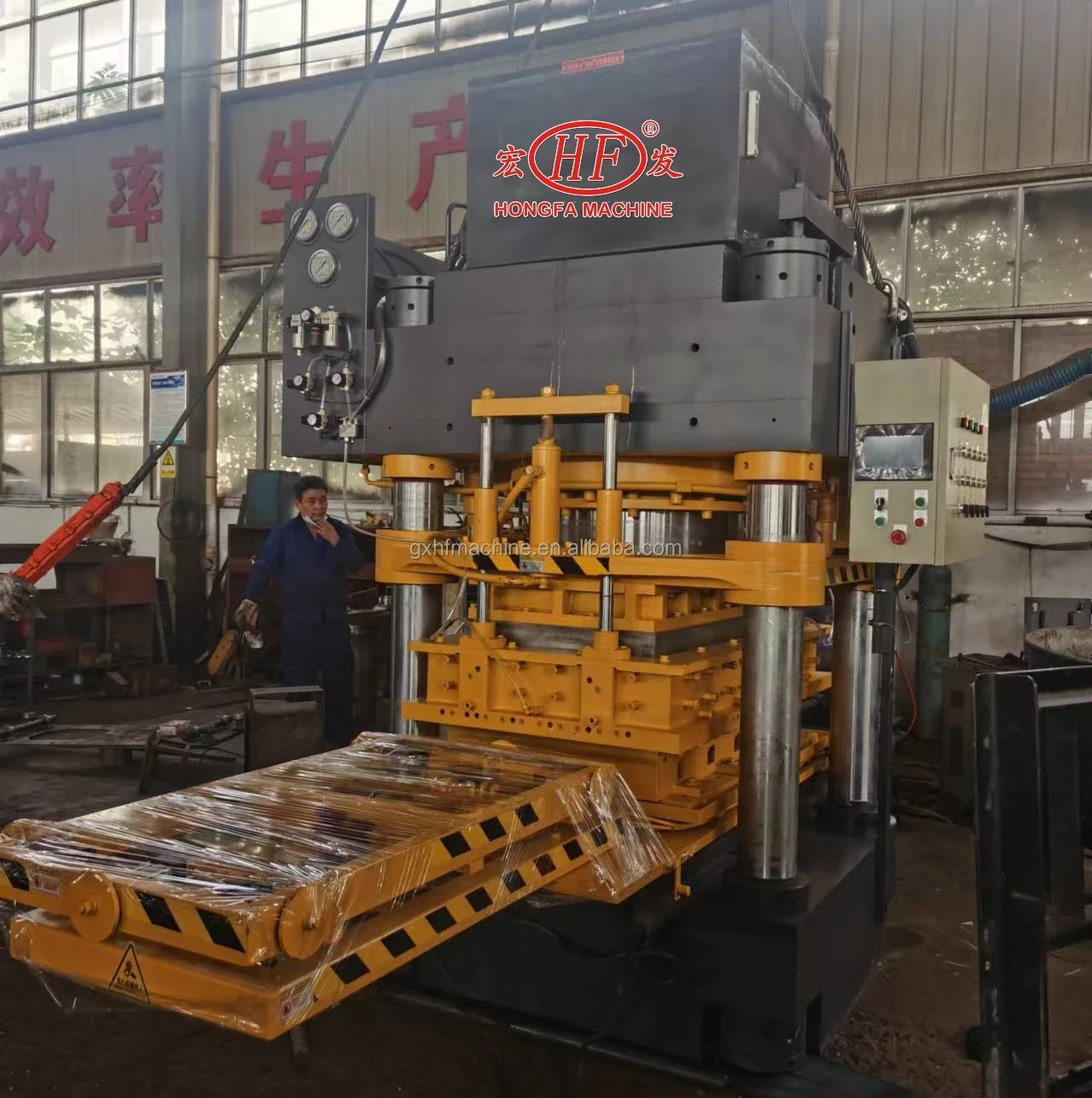

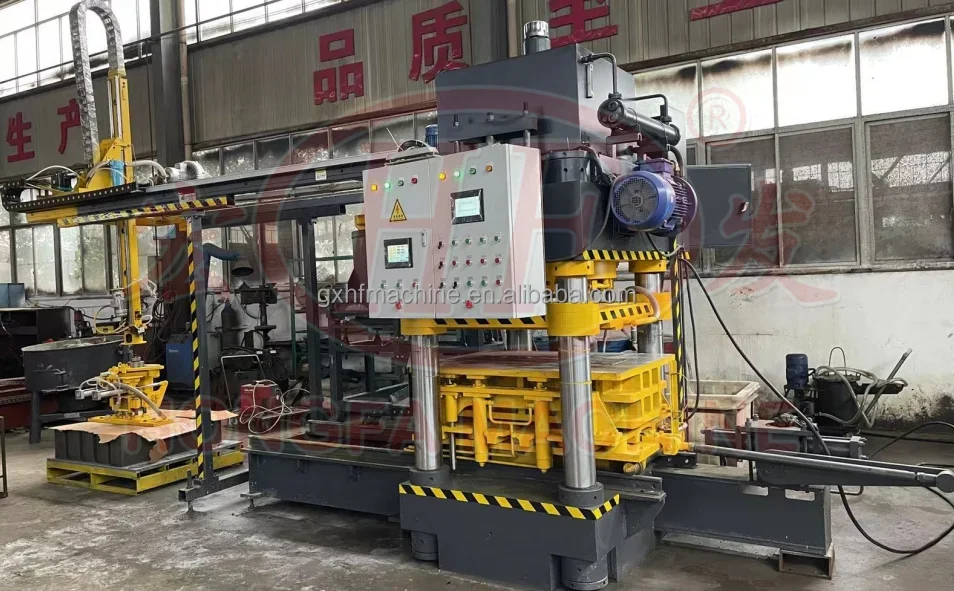

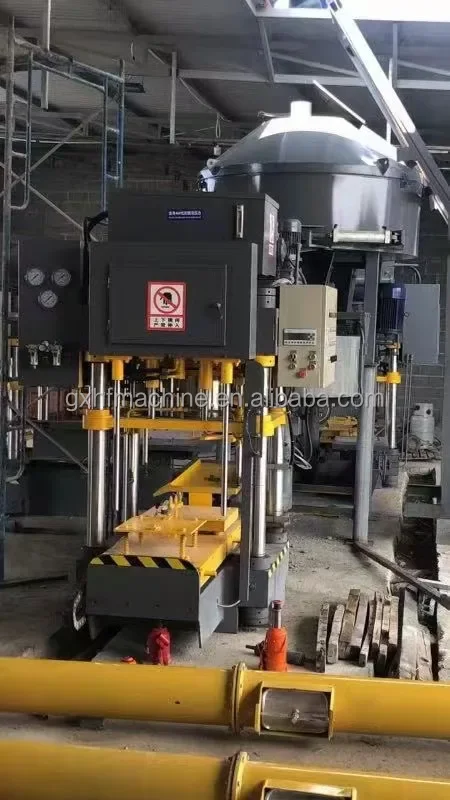

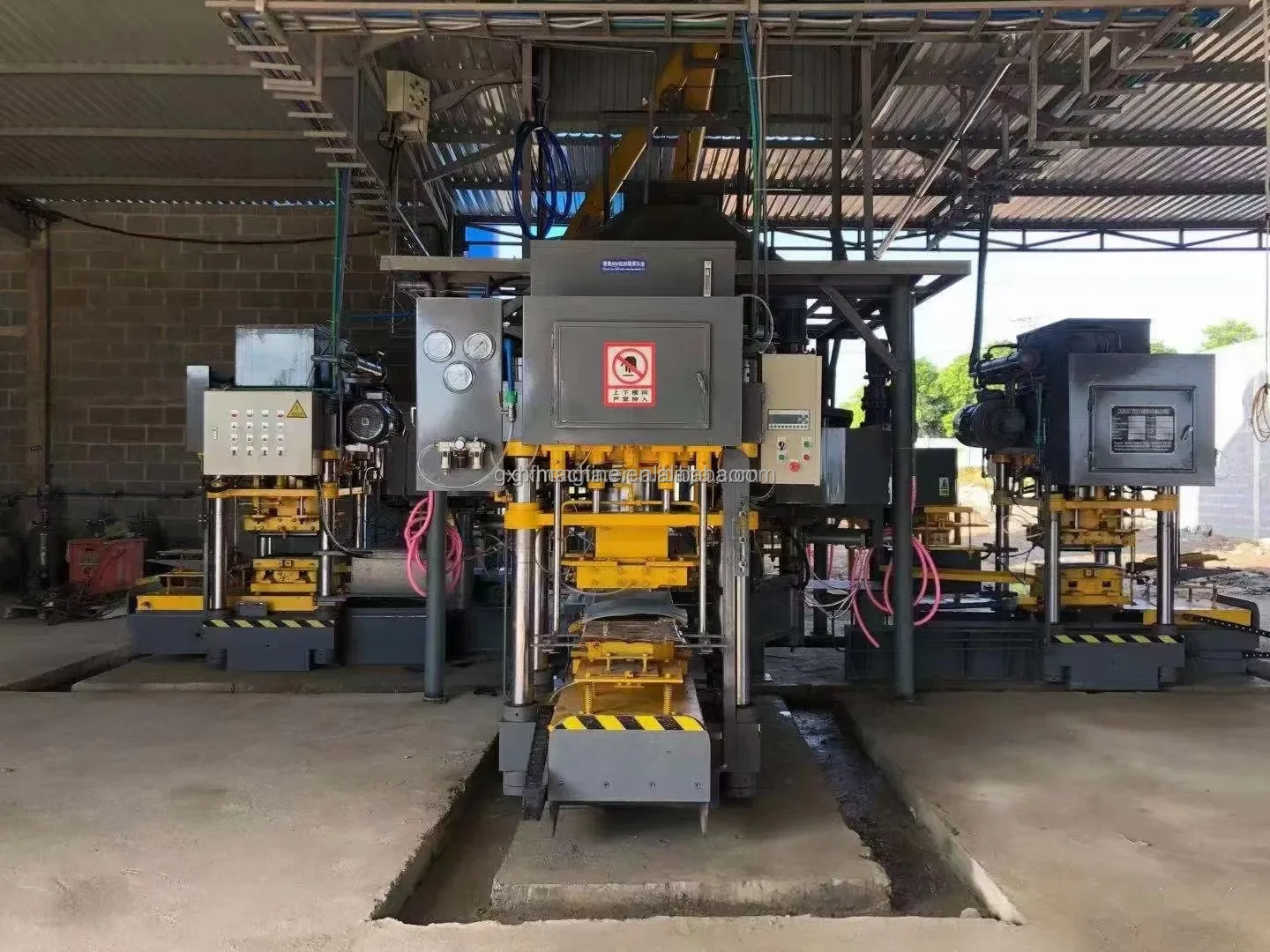

HFT650 Terrazzo tile machine,curbstone machine,tile slab machine Features

-The molding process uses a high-pressure filter press molding process, which can comprehensively improve product quality and strength while ensuring rapid production;

-The equipment is fully controlled by PLC computer, which can control all the actions of the equipment, oil circuit and gas circuit system through the computer, reducing labor costs and improving production efficiency;

- Lifting mold frame, without changing the mold, by adjusting the limit of the frame, it can produce curb stone products with different thicknesses;

-The main cylinder, base, guide column and other frame parts of the main engine are all made of integral castings, which can greatly extend the life of the main engine. Under natural circumstances, the castings can be guaranteed for 20 years.

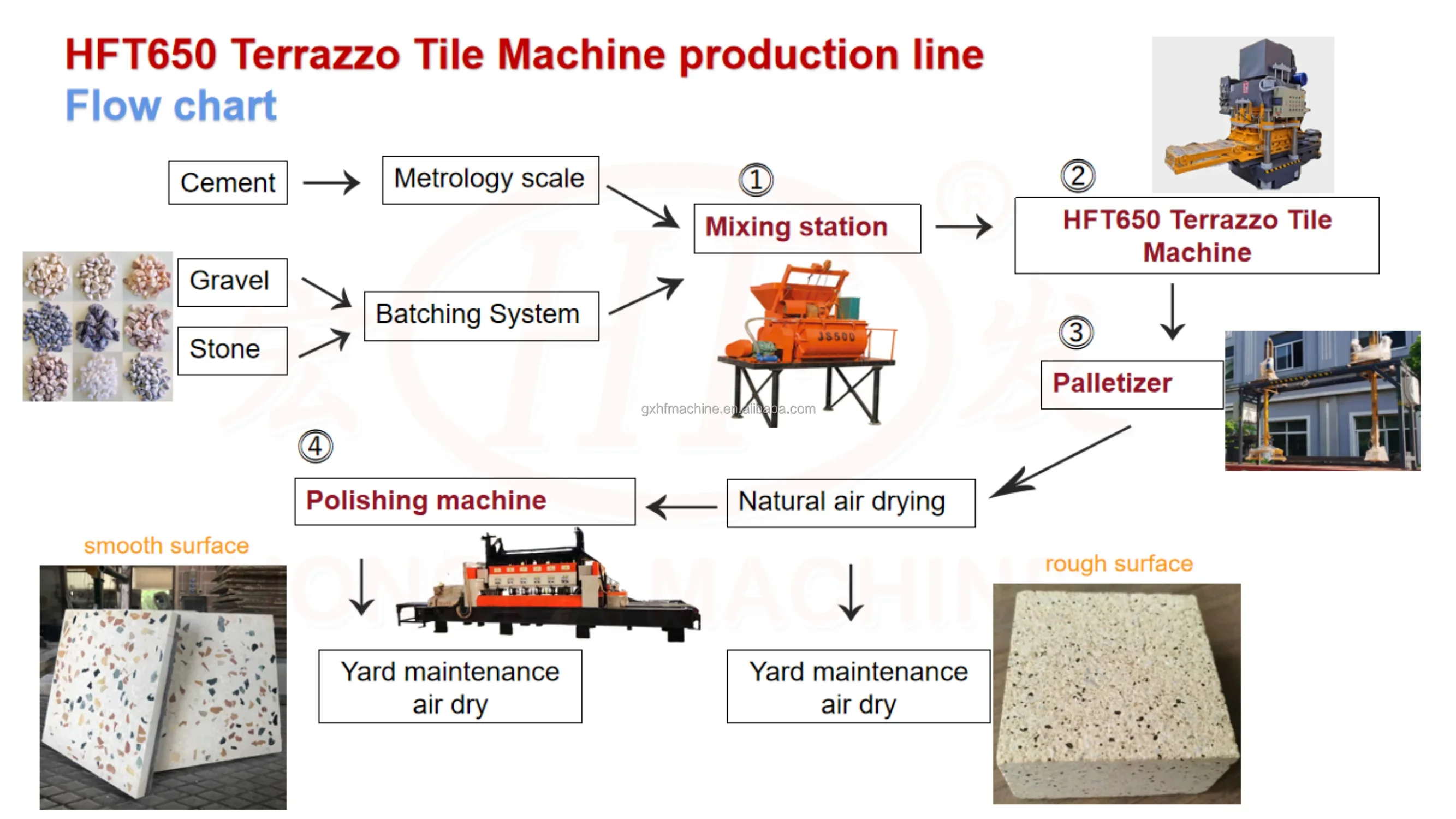

Description of molding process

- HFT650 concrete slab making machine, the forming process adopted is a forming process used to form the concrete slurry by high pressure pressing. It is characterized in that during the pressing process, the water in the slurry can be squeezed out so that the green body can be quickly formed and demoulded, and in the process of squeezing out the water, the concrete slurry is locked so that it will not be lost together with the water. To preserve the strength of the finished product.

Advantages

The advantage of this process is that it can be pressed with wet concrete slurry, the finished product has less air holes, and has a relatively good degree of bonding between cement and sand; at the same time, it has a looser ratio in moisture control than dry hardness. (15%-20%, dry hardness 6%-8%); at the same time, no vibration is involved in the molding process, so the noise is relatively small during mechanical operation.

Mold Features

- The mold is a combined structure of mold core, frame, liner and socket, which is easy to repair and replace

- The main part of the mold is made of integral pouring material, and the mold has a long service life

- The upper head and the lower mold core are equipped with drainage holes and auxiliary drainage grooves, which are convenient for quickly filtering out water during the molding process

- The indenter and core are equipped with a detachable filter layer for filtering mud, which is easy to disassemble, wash and replace.

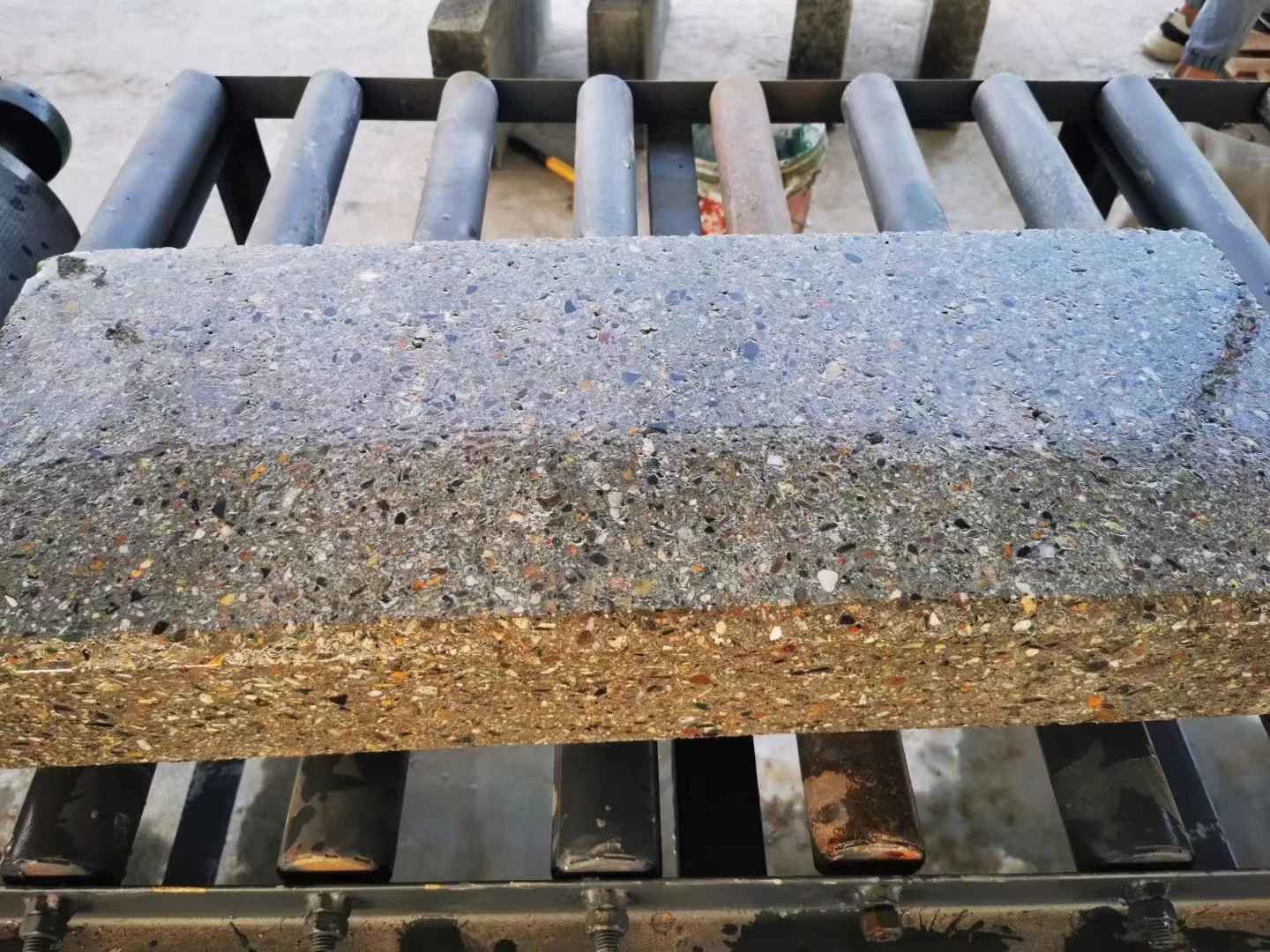

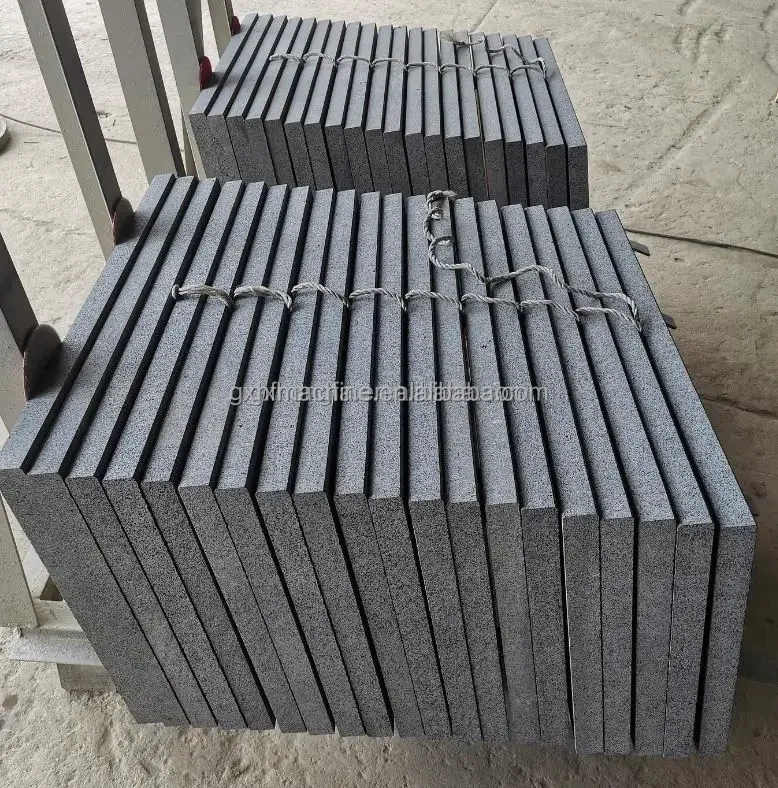

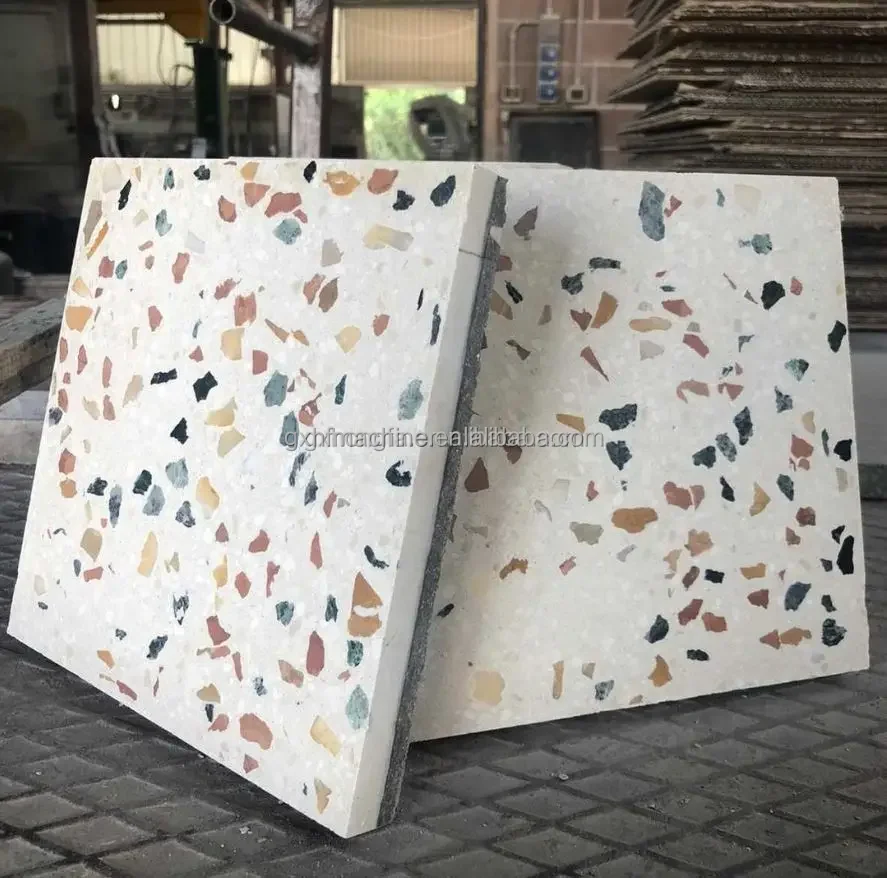

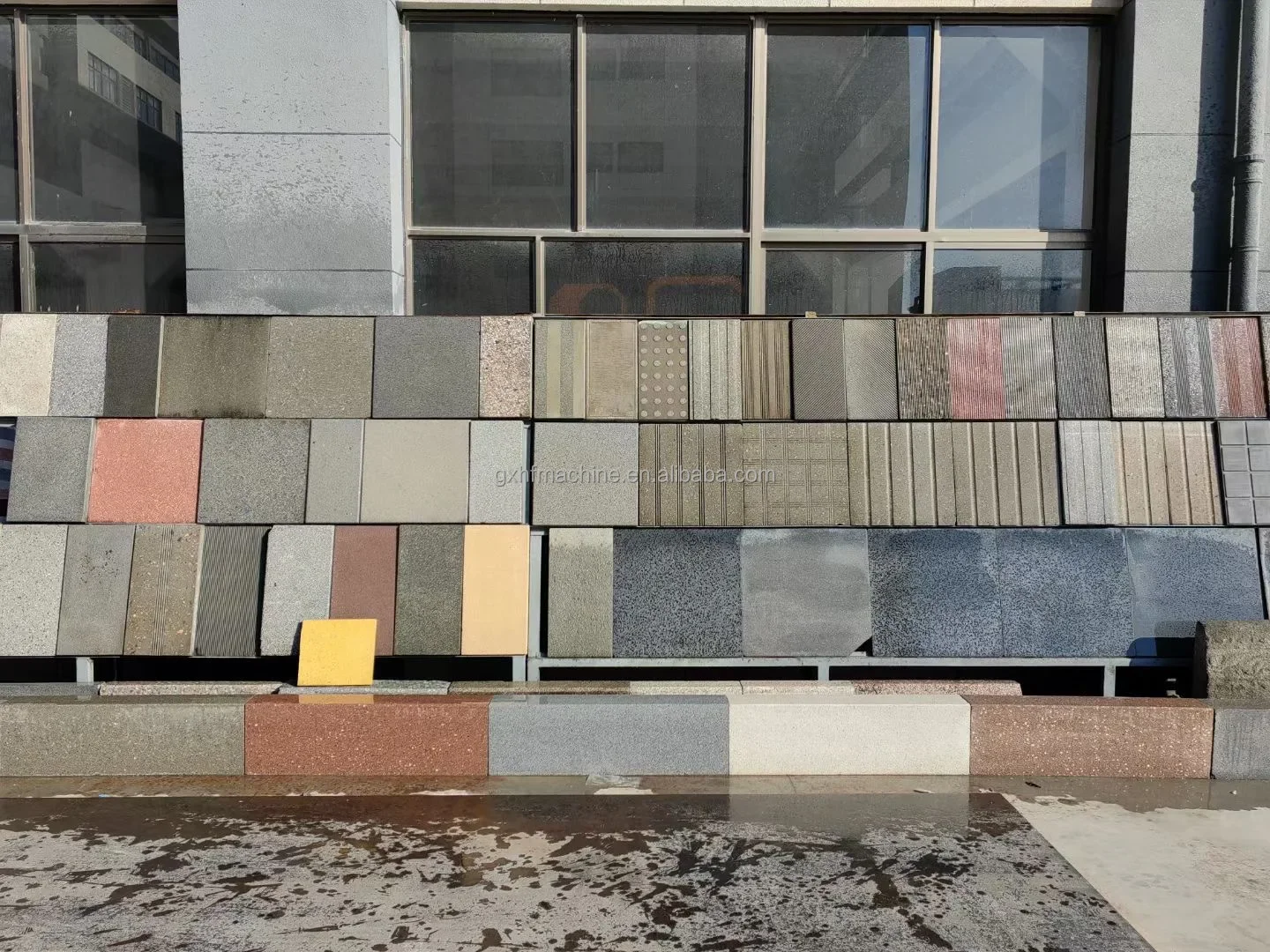

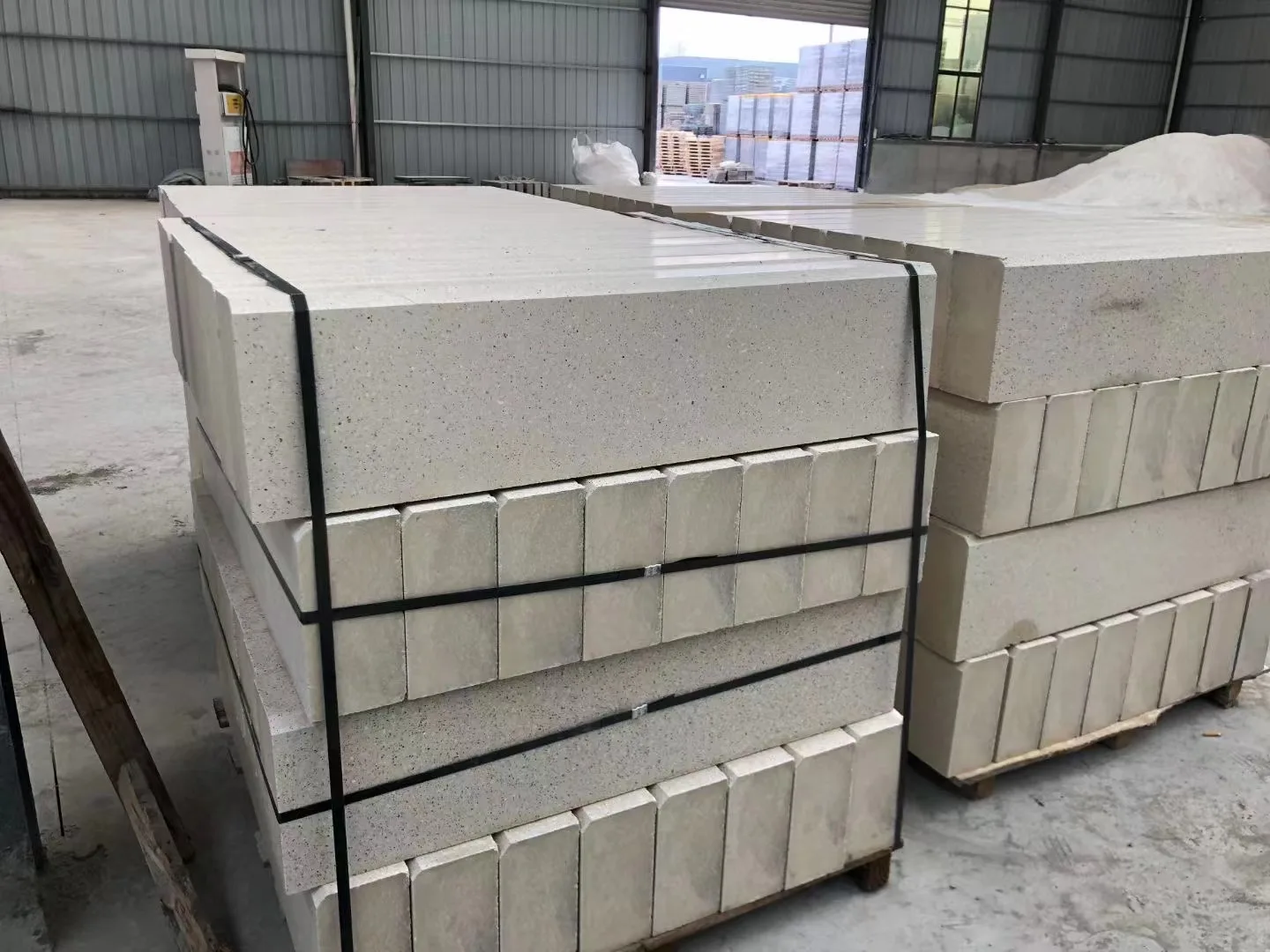

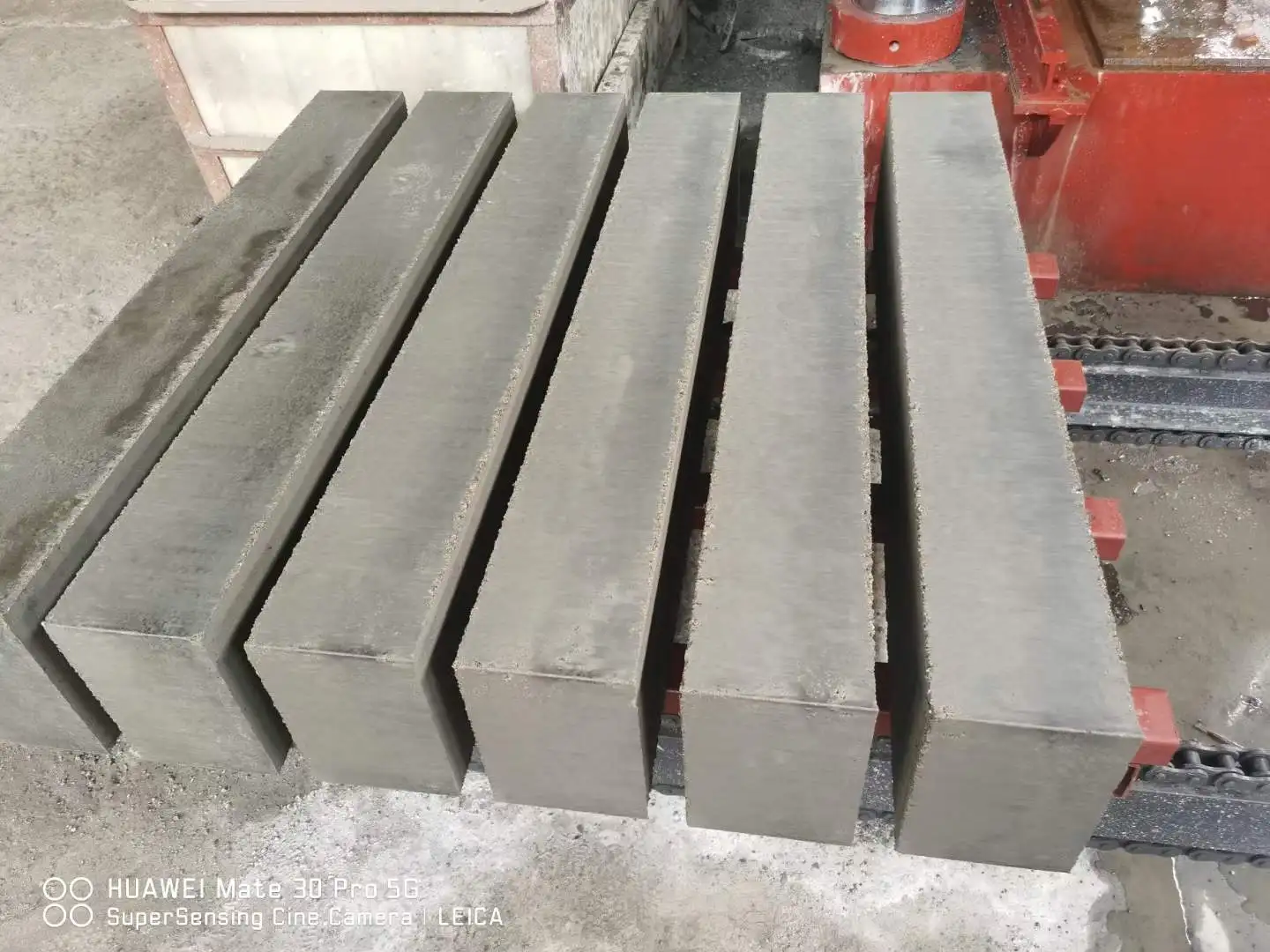

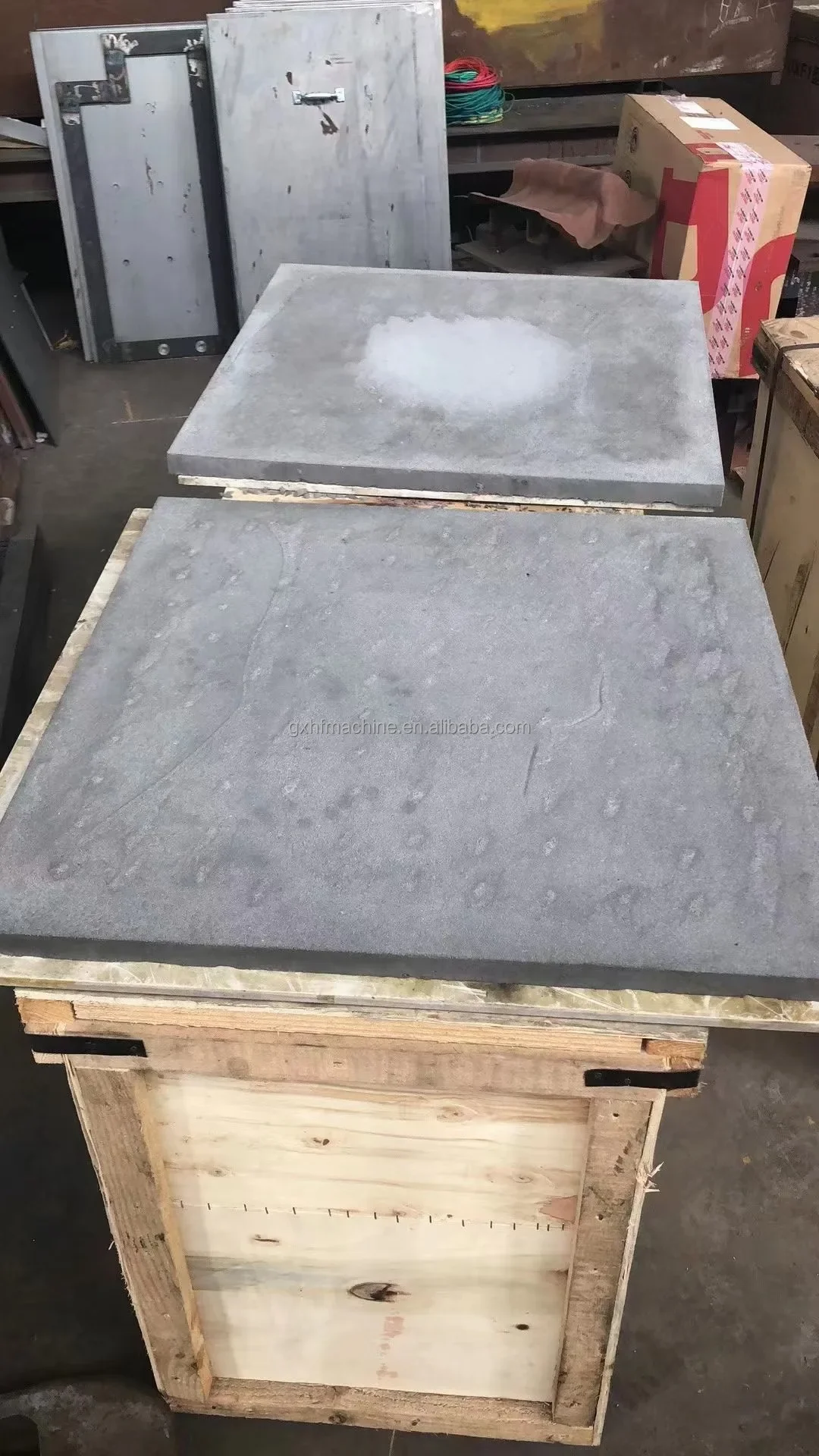

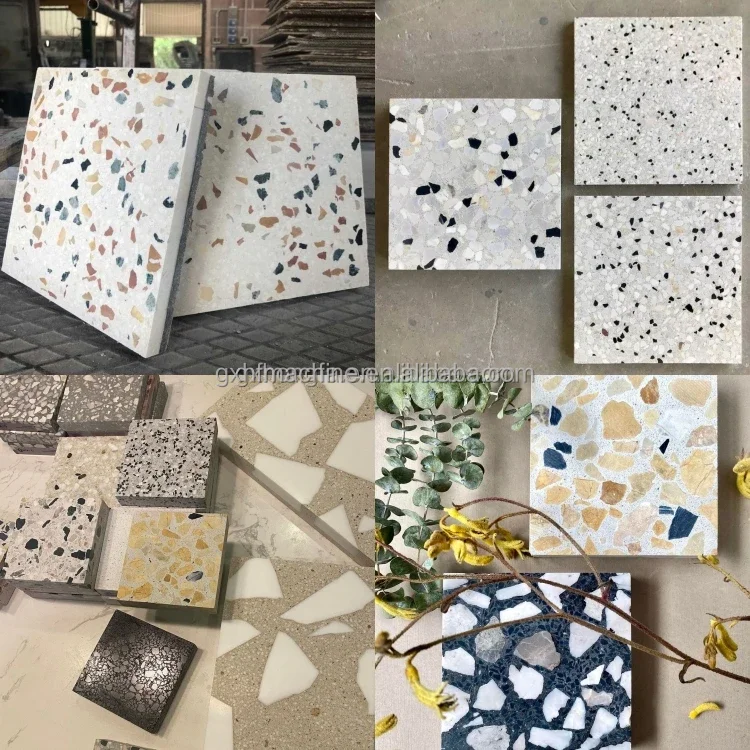

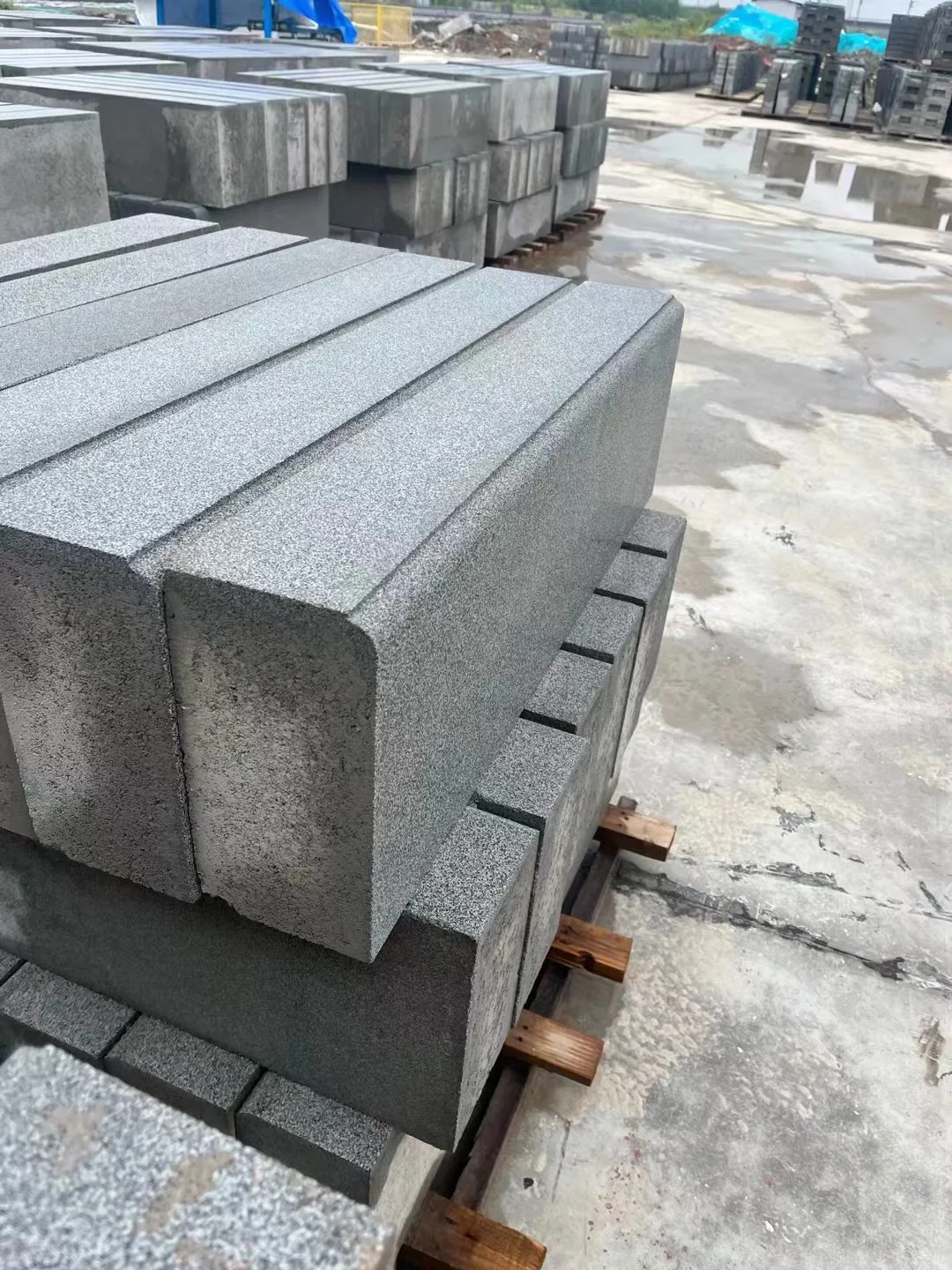

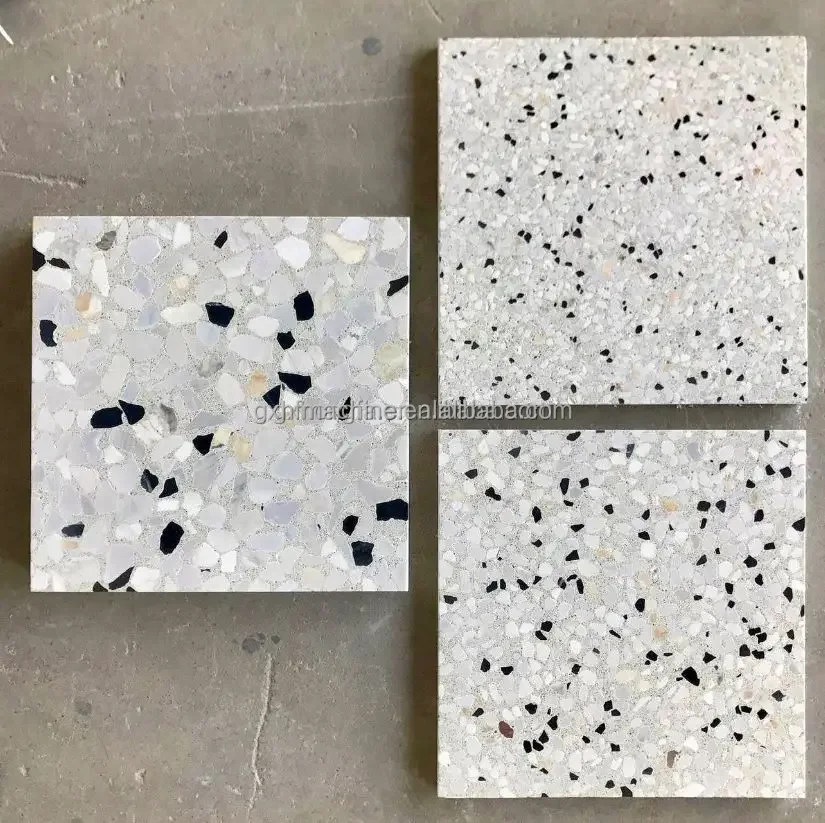

Finished products

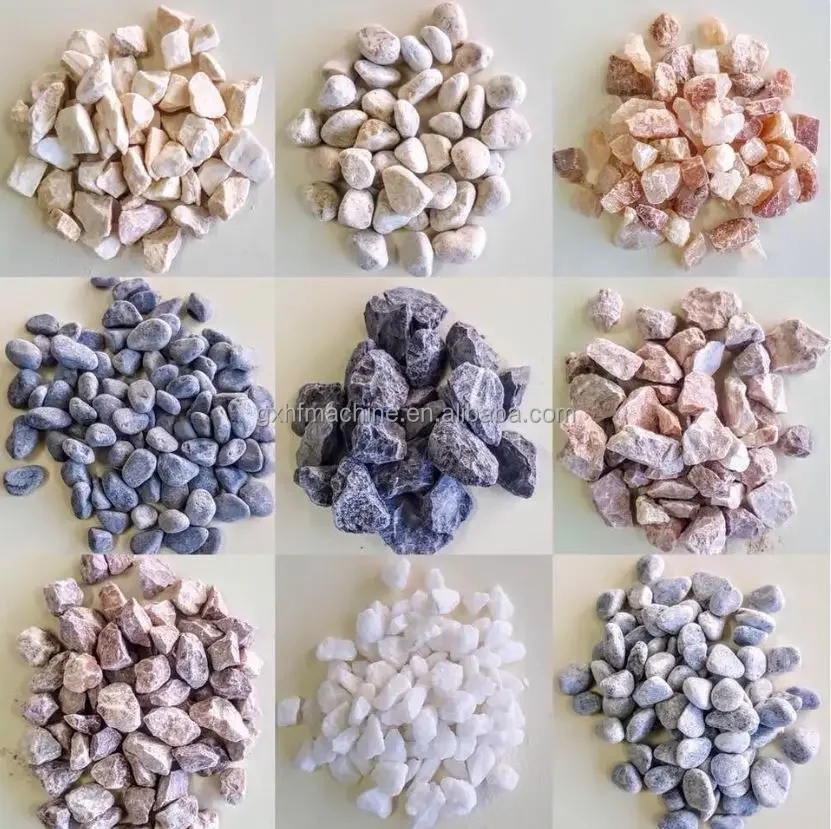

Raw materials

Polishing machine
