Những điểm chính về sản phẩm
Thuộc tính cụ thể của ngành
Các thuộc tính khác
Khu vực
Thương hiệu
Mã sản phẩm
Tên sản phẩm
Precast Concrete Block House Precast Concrete Hollow Core Cement Wall Panel Making Machine Sandwich Panel Production Line Price
Nhà cung cấp
Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa
Thông tin nha cung cấp của bạn
1 yrs
Vị trí tại VN
Mô tả sản phẩm từ nhà cung cấp
Mô tả sản phẩm
Product Overview
precast concrete block house precast concrete hollow core cement wall panel making machine sandwich panel production line price
Equipped with advanced facilities, Hongfa Group provides solutions of the best panel plant for EPS panel, gysum board, foam cement panel, and precast concrete panel,etc.The annual output can be customized from 50,000 to 1,000,000 m2.
What is the Concrete Lightweight Wall Panel?

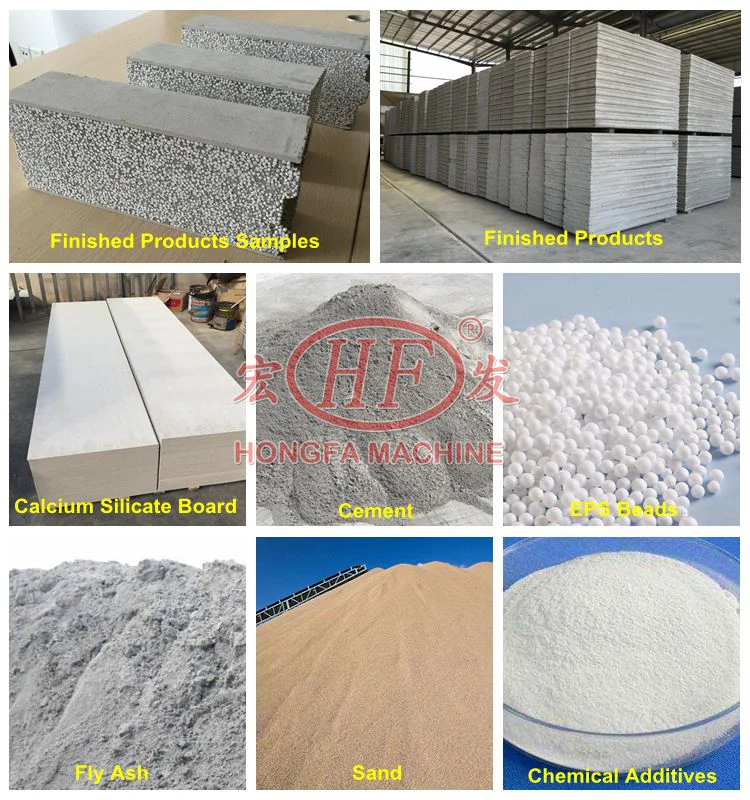

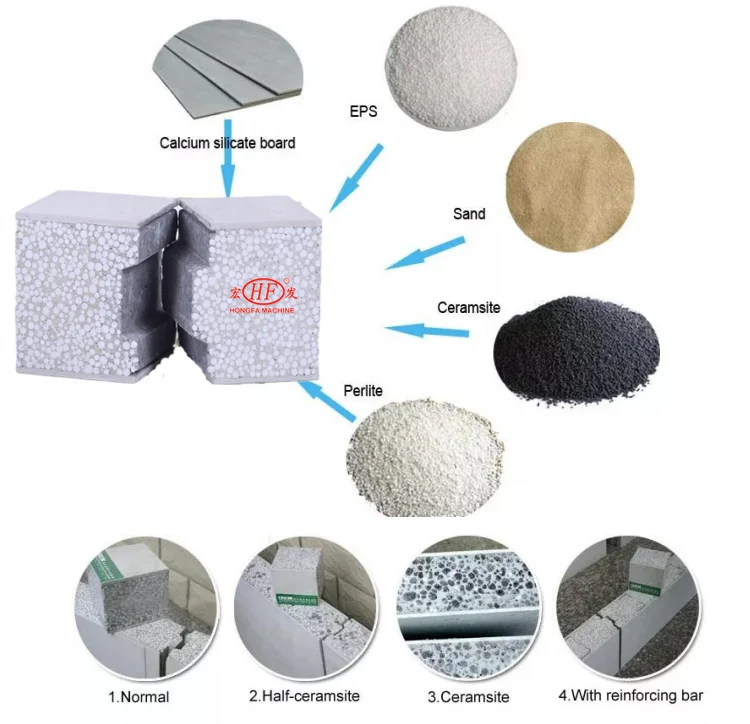

Materials of Hongfa Brand EPS Wall Panel
1) Outside (with side board or without)
- Calcium silicate board,Cement fiber board.
- Also can be without the side board.
2) Inside (core material)
- Cement, Foam EPS ,Gypsum, Fly Ash, Sand , Ceramsite, Other lightweight aggregates, Additives, etc.
- Calcium silicate board,Cement fiber board.
- Also can be without the side board.
2) Inside (core material)
- Cement, Foam EPS ,Gypsum, Fly Ash, Sand , Ceramsite, Other lightweight aggregates, Additives, etc.

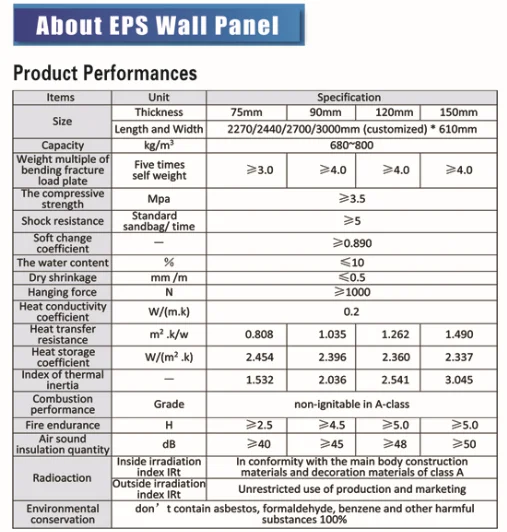

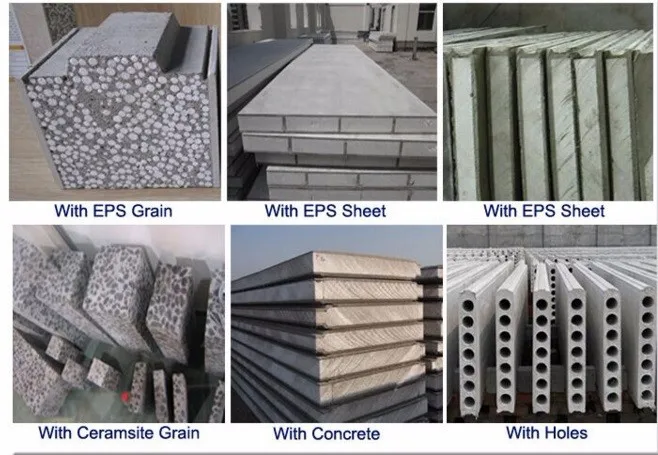

Product size and type (Flexible) of wall panel
The Regular Size are: Length 2270/ 2440mm(Max.3000mm) | Width 610mm
Thickness 60 - 250mm (Other sizes can also be customized according to customer requirements, the price is negotiated separately).

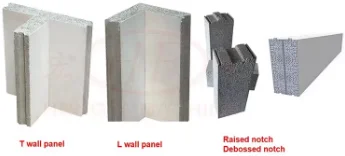

Type: Hollow/Solid/Corner such as L,T shape.
Thickness 60 - 250mm (Other sizes can also be customized according to customer requirements, the price is negotiated separately).
Type: Hollow/Solid/Corner such as L,T shape.
Our Services

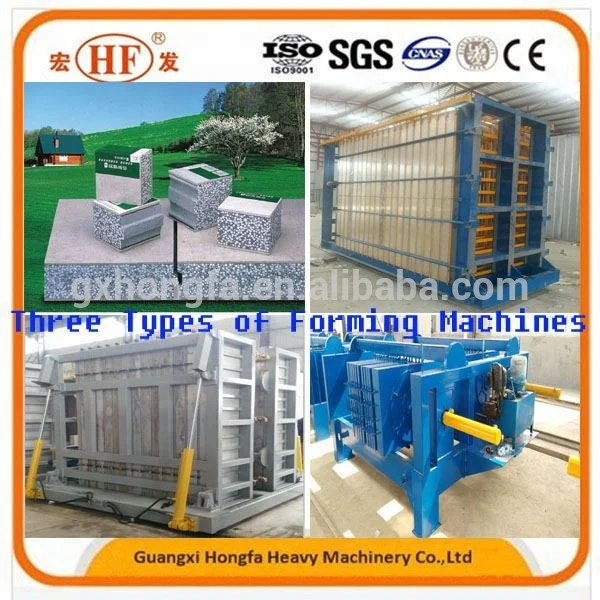

We have three types of wall panel machinery for you to choose from.
If you need more details contact Wendy,wechat/whatsapp/tel.+86 17776611790
precast concrete block house precast concrete hollow core cement wall panel making machine sandwich panel production line price

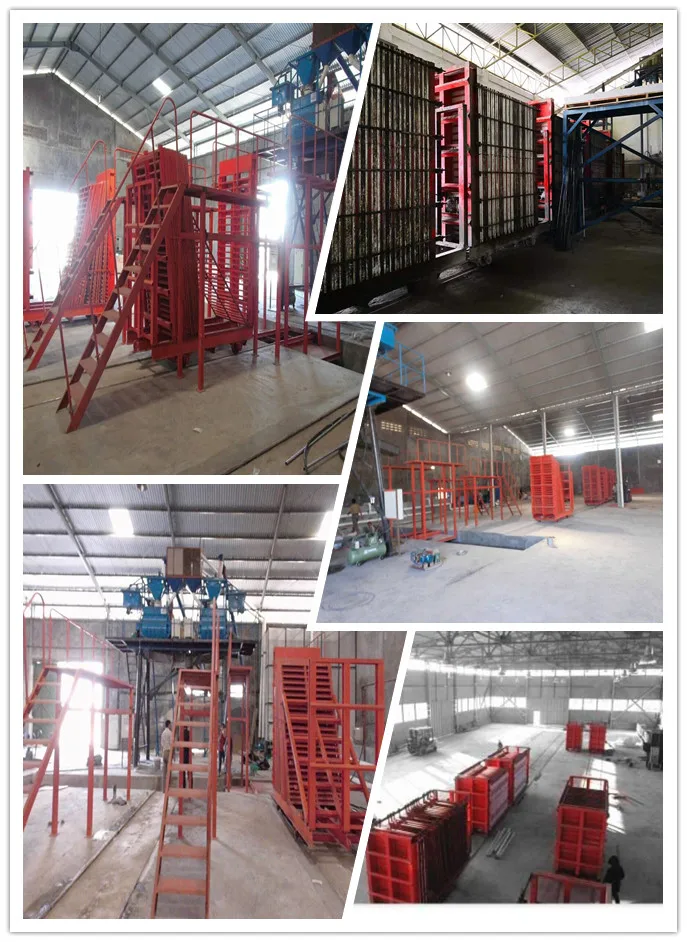

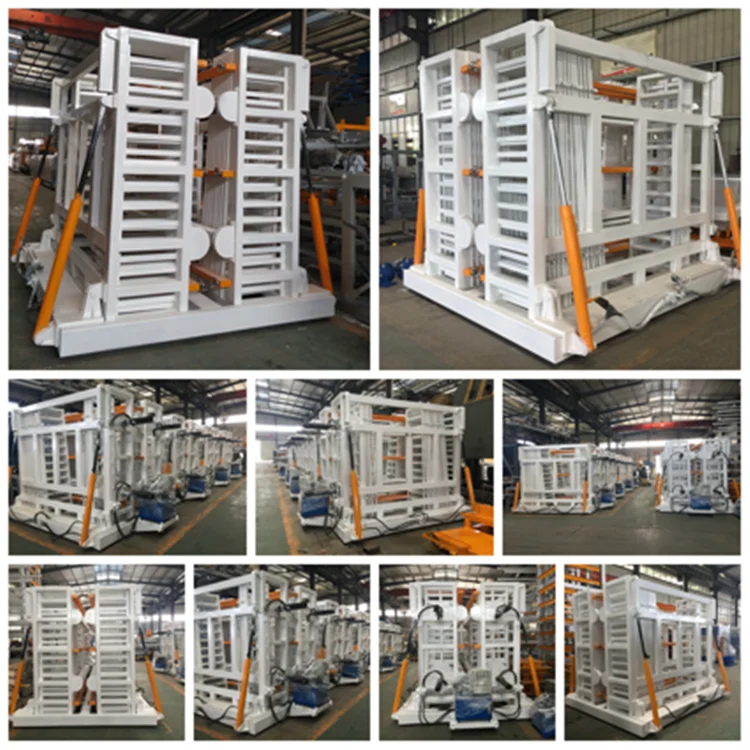

1.Manual vertical type wall panel making machine: Manual operation,the highest output amount the three types, low investment,but requires more workers.
Overall dimensions mm | Output/pieces per mould | ||||||||||
60mm | 75mm | 90mm | 100mm | 120mm | 150mm | ||||||
3600*1320*2800 | 58pcs | 50pcs | 42pcs | 40pcs | 34pcs | 28pcs | |||||
precast concrete block house precast concrete hollow core cement wall panel making machine sandwich panel production line price
If you need more details contact Wendy,wechat/whatsapp/tel.+86 17776611790
2:.Automatic vertical type wall panel making machine: automatic operation,high output,fewer workers required.
Overall dimensions mm | Power/kw | Output/pieces per mould | ||||||||||
60mm | 75mm | 90mm | 100mm | 120mm | 150mm | |||||||
3380*3200*2680 | 4kw | 40pcs | 36pcs | 32pcs | 30pcs | 26pcs | 22pcs | |||||
precast concrete block house precast concrete hollow core cement wall panel making machine sandwich panel production line price
If you need more details contact Wendy,wechat/whatsapp/tel.+86 17776611790
3.Automatic horizontal type wall panel making machine: high level of automatic operation,fewer workers required.
Overall dimensions mm | Power/kw | Output/pieces per mould | ||||||||||
60mm | 75mm | 90mm | 100mm | 120mm | 150mm | |||||||
2750*2504*1359 | 3kw | 16pcs | 14pcs | 12pcs | 12pcs | 10pcs | 8pcs | |||||
precast concrete block house precast concrete hollow core cement wall panel making machine sandwich panel production line price
If you need more details contact Wendy,wechat/whatsapp/tel.+86 17776611790

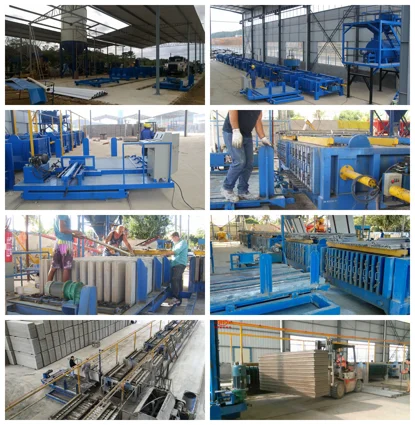

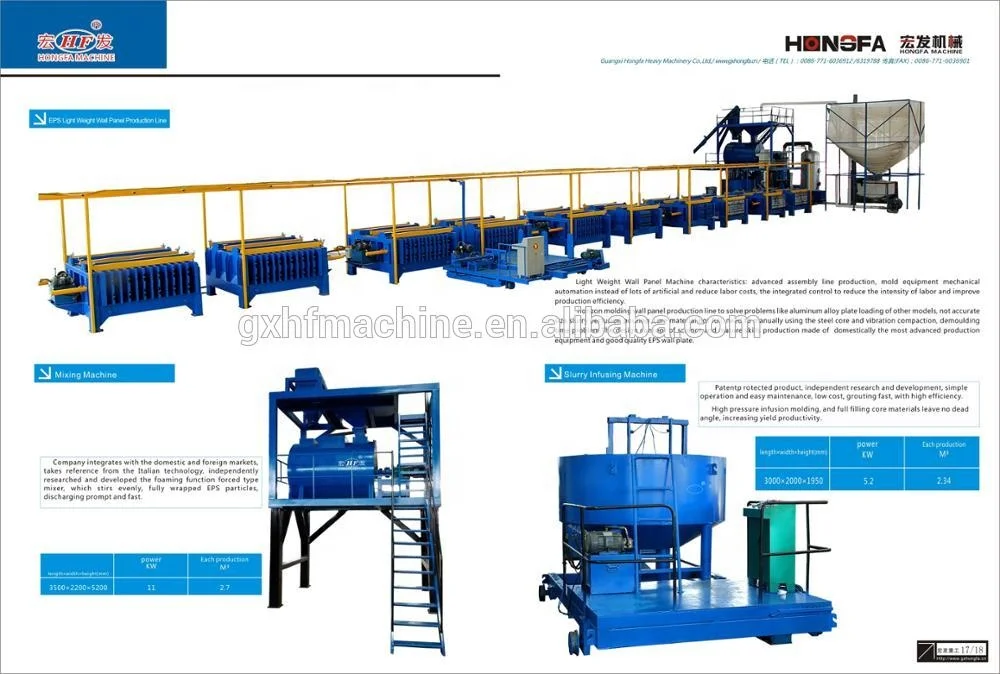

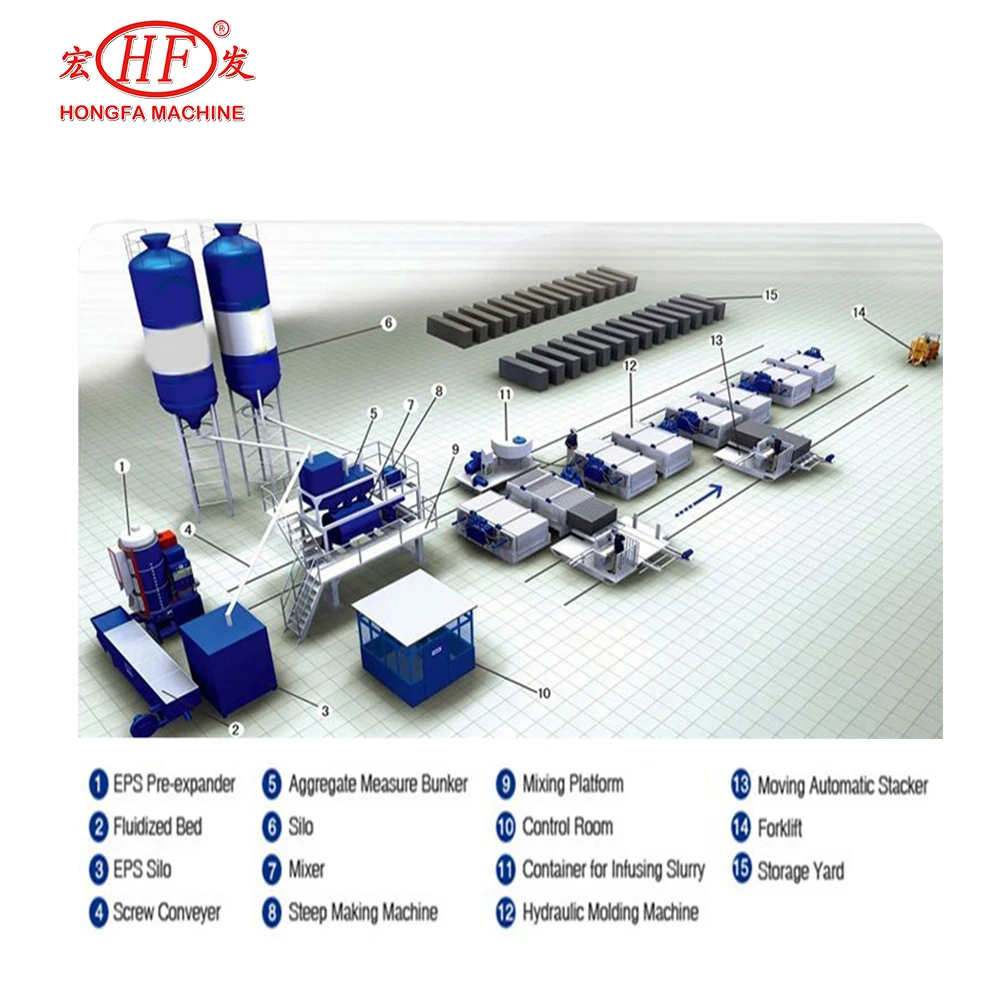

A simple layout is shown below(Our engineers can help you design the layout according to your land, we need you to give us your site drawings, don't worry)
FEATURES AT A GLANCE

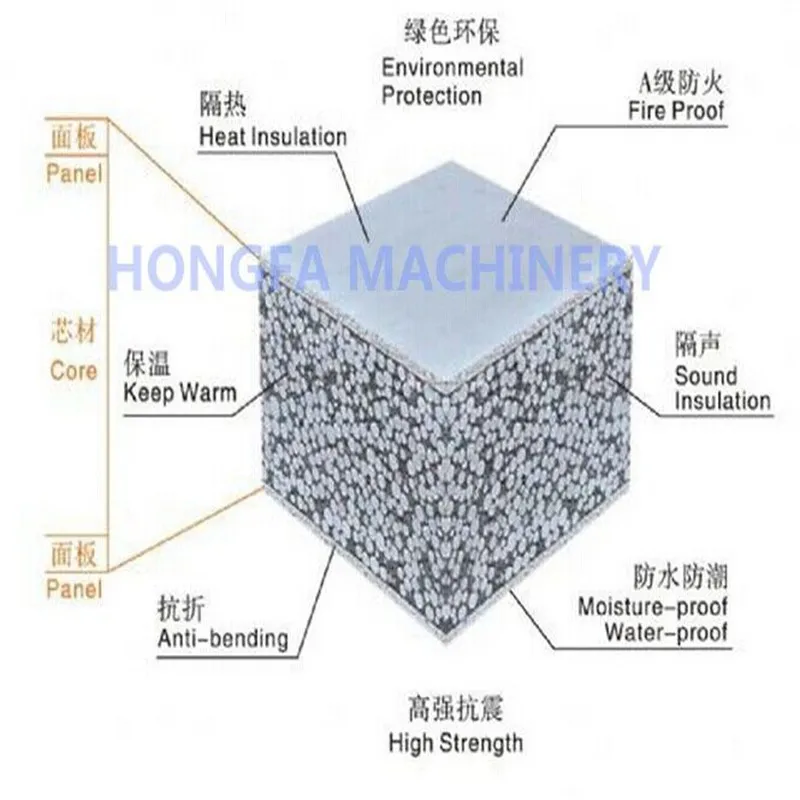

Advantage of wall panel
(A) Lightweight: The raw materials used are Lightweight aggregates, fly ash,etc, non-reinforced concrete, gravel and other heavy feedstock. So it has the characteristics of lightweight, which is only 1/16 weight of the brick and concrete structure.
(B)Insulation Resistance: As this new wall panel is core of EPS insulation materials, which insulation performance is extremely advantageous and meet the building energy efficiency design standards, and rank first among similar products.
(B)Insulation Resistance: As this new wall panel is core of EPS insulation materials, which insulation performance is extremely advantageous and meet the building energy efficiency design standards, and rank first among similar products.
(C)Permeability Resistance: The bibulous rate of this new wall panel is only 3.3%,which has reached the international advanced level in the same industry.
(D) Fireproof performance: this kind of wall panel is non-burning, and according to the testing, it is reasonable fireproof materials, for the 90mm thickness wall panel, the fireproof performance can be more 3 hours.
(E)Soundproofing: As new wall panel is using EPS as core, it has good sound insulation and air aspiration, which is more than 40 db sound insulation.
(D) Fireproof performance: this kind of wall panel is non-burning, and according to the testing, it is reasonable fireproof materials, for the 90mm thickness wall panel, the fireproof performance can be more 3 hours.
(E)Soundproofing: As new wall panel is using EPS as core, it has good sound insulation and air aspiration, which is more than 40 db sound insulation.
precast concrete block house precast concrete hollow core cement wall panel making machine sandwich panel production line price
If you need more details contact Wendy,wechat/whatsapp/tel.+86 17776611790

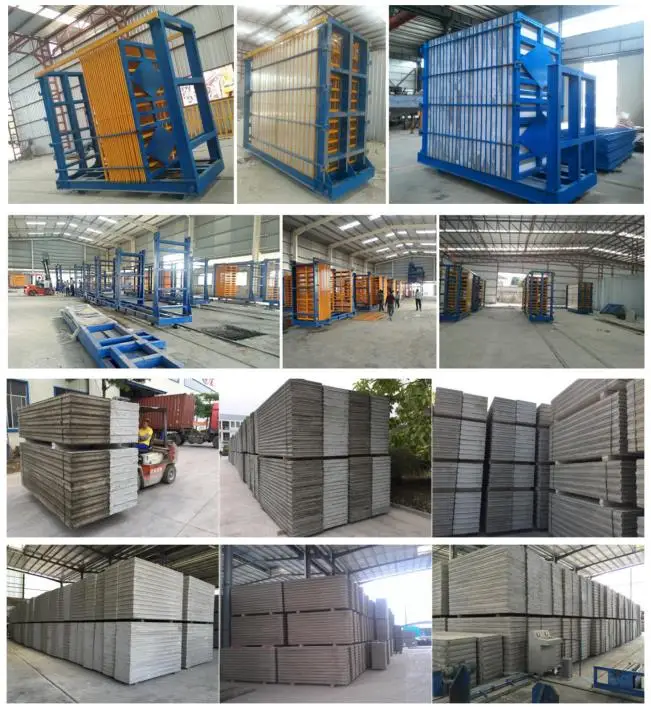

In China, our company is also engaged in building materials business, so we also use and produce .
(This production line has been used for more than 10 years in our factory, welcome to visit our factory)
If you need,our factory also sell wall panel.Welcome to contact me,thanks.
If you need,our factory also sell wall panel.Welcome to contact me,thanks.
SALES AND SERVICE NETWORK
Successful Project
Project in Brazil
SIMILAR PRODUCTS
FAQ
Shipping port: Qingdao or Qinzhou Port China.
Payment:30% as down deposit by T/T ,70% as the balance paid before loading
Guarantee Period: Three year after installation finished at buyer's factory.
Are your company is the manufacturer or trading company?
We are the direct factory,Hongfa company is the leading and the most influential manufacturer of the EPS light weight wall panel making machine,concrete block making machine and other wall building materials in China from the 1990s.
Hongfa provides our clients one-stop solution for the EPS sandwich wall panel production line;from us the clients can share our best quality machines and the most updated technology in the wall panel making industry.
When you plan to purchase a certain machine, suggesting to take care below points:
1. What is the materials they used? Manganese steel or A3 steel? (We use Manganese steel which stronger than A3 steel)
2. What is the lifetime of the mold? ( our mold can use 900,000 - 1200,000 times)
3.The price cover to what equipment?( pls refer to our quotation list)
Payment:30% as down deposit by T/T ,70% as the balance paid before loading
Guarantee Period: Three year after installation finished at buyer's factory.
Are your company is the manufacturer or trading company?
We are the direct factory,Hongfa company is the leading and the most influential manufacturer of the EPS light weight wall panel making machine,concrete block making machine and other wall building materials in China from the 1990s.
Hongfa provides our clients one-stop solution for the EPS sandwich wall panel production line;from us the clients can share our best quality machines and the most updated technology in the wall panel making industry.
When you plan to purchase a certain machine, suggesting to take care below points:
1. What is the materials they used? Manganese steel or A3 steel? (We use Manganese steel which stronger than A3 steel)
2. What is the lifetime of the mold? ( our mold can use 900,000 - 1200,000 times)
3.The price cover to what equipment?( pls refer to our quotation list)
Please not hesitate to contact us if you are interested in any kinds of products.
Contact Information:
Foreign Trade Dept. :Wendy Deng
Guangxi Hongfa Heavy Machinery Co.,Ltd.
Wesite:http://www.gxhongfa.cn
Foreign Trade Dept. :Wendy Deng
Guangxi Hongfa Heavy Machinery Co.,Ltd.
Wesite:http://www.gxhongfa.cn
Tel:0086-17776611790
0086-771-5672282
0086-771-6036912
Fax: 0086-771-6036901
Factory add: Linyi city, Shandong province & Nanning city, Guangxi Province, China
0086-771-5672282
0086-771-6036912
Fax: 0086-771-6036901
Factory add: Linyi city, Shandong province & Nanning city, Guangxi Province, China
