Oversea Engineer Installation Automatic Steel Reinforced Concrete Culvert Pipe Making Machine New Pipe Production Line

(4 Lượt)

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Nhà sản xuất, chế tạo • 1 năm

Giá

162,500,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Oversea Engineer Installation Automatic Steel Reinforced Concrete Culvert Pipe Making Machine New Pipe Production Line

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Oversea Engineer Installation Automatic Steel Reinforced Concrete Culvert Pipe Making Machine New Pipe Production Line

Nhà cung cấp

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Thông tin nha cung cấp của bạn

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Automatic Steel Reinforced Concrete Cement Pipe Making Machine with oversea engineer installation

Brief introduce

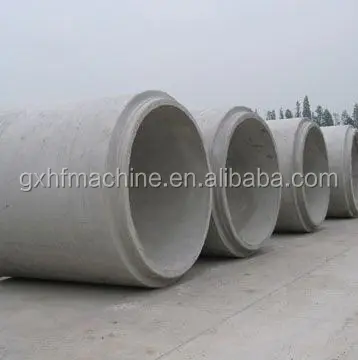

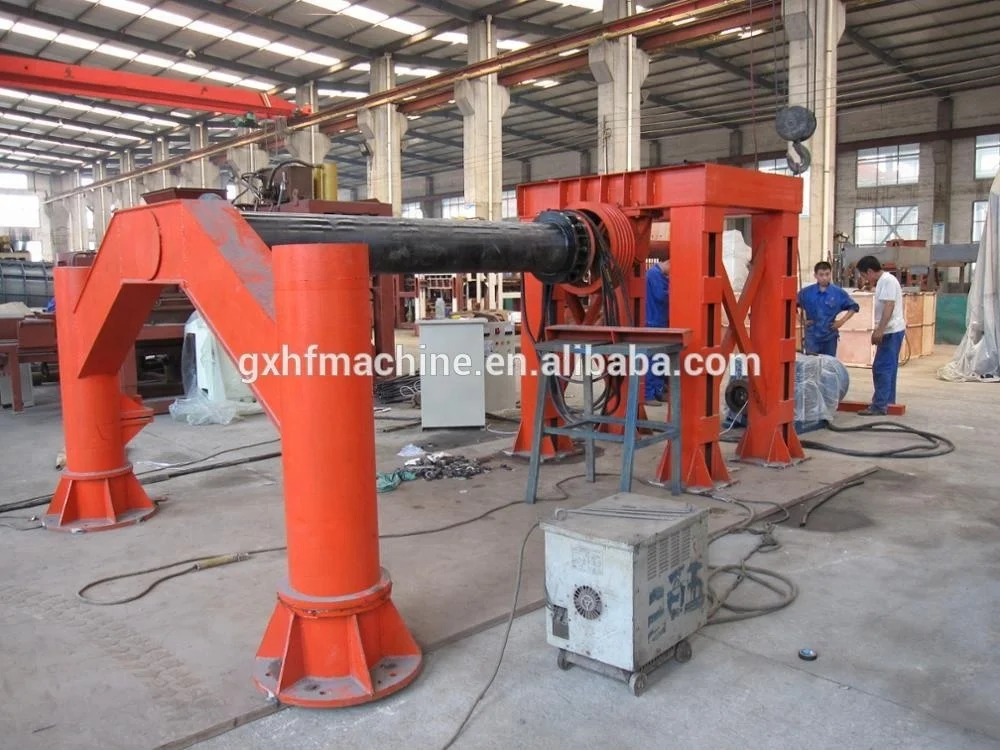

Suspension roller type concrete pipe machine is a kind of perfect machine and equipment to produce reinforced concrete pipes and pre-stressed concrete pipe. This machine is capable to make pipes with diameter from 300-2000mm and with length from 2000-4000mm.
We can design many kinds of the pipe joint, including flush joint, socket & spigot joint And all the concrete pipes are widely
used in administrative drainage, agricultural field irrigation, road culvert and deep water well.

Concrete Drainage Pipe Machine Mold Cement Concrete Pipe Moulds Concrete Drainage Pipe Making Machine

Main Features

Pipe Diameter: range:200mm to 2500mm diameter, length: 1m-5m
· With hard dry casting concrete, high intensity, and better strength
· We can design many kinds of pipe joint, including flush joints (flat mouth type), groove joints, socket, and spigot joints (socket
and plug mouth type) etc
· The concrete pipes are widely used in administrating drainage, agricultural fields, roof culverts, and deepwater well

Concrete Drainage Pipe Machine Mold Cement Concrete Pipe Moulds Concrete Drainage Pipe Making Machine

Advantages for pipes

· High density and high intensity of concrete pipes
· Performance steady, lowest malfunction rate
· No waste slurry for using dry-hard concrete material
· Variable frequency speed control motor and a frequency conversion controller
· Field installation, commissioning and training, Free spare parts, Field maintenance, and repair service

Technical Parameter

Model	XG600	XG1200	XG1500
Pipe Length (mm)	300-600	800-1500600-1200	800-1500
Pipe Diameter (mm)	2000	2000	2000
Motor Power (KW)	15	30	55
Model of Motor	YCT-2254B	YCT-3154A	YCT-3354A
Roller Thickness (mm)	25	30	35
Roller Rotation Speed	83-833 (R/Min)	69-687 (R/Min)	65-653 (R/Min)

Items	XG 200-600	XG 800-1200	XG 1000-1500	XG 4M
Diameter	200-600mm	800-1200mm	1000-1500mm	300-2000mm
Length	2000mm	2000mm	2000mm	1000-4000mm
power of motor	15kw	45kw	90kw	110kw
Capacity	10-15pc/h	8-12pc/h	6-10pc/h	6-8 pc/h
Labor demand without feeding machine	4-5	4-5	4-5	4-5
labor demand with feeding machine	3-4	3-4	3-4	3-4
Joint	Plain,socket and spigot,male and female	plain,socket and spigot ,male and female	plain,socket and spigot ,tongue and groove	plain,socket and spigot,tongue and groove

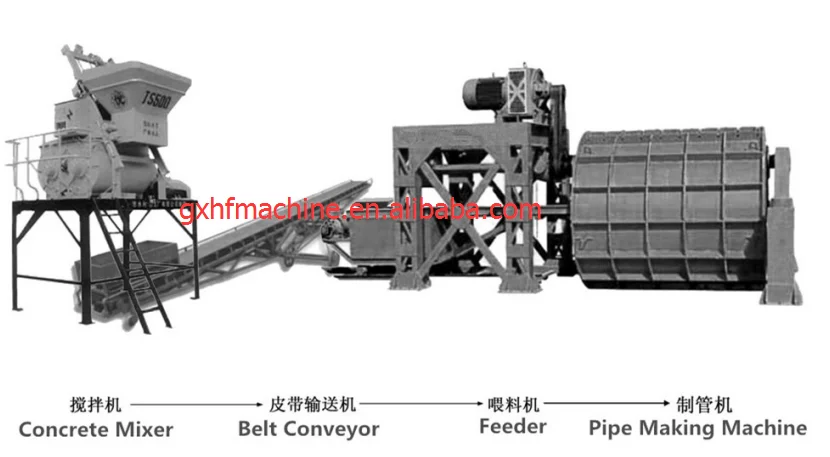

production line

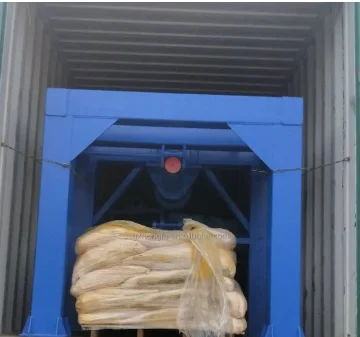

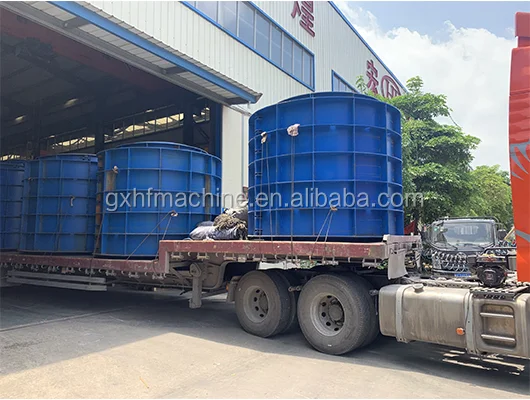

Packing and Shipping

Concrete Drainage Pipe Machine Mold Cement Concrete Pipe Moulds Concrete Drainage Pipe Making Machine Land: Truck&railway.

Ocean: Container&bulk goods.

Our service

Our Services.

---Consulting & Planning ---Designing & Manufacturing ---Technology Instructing ---Installation Guiding ---Training&Commissioning ---After-Sales Services Providing

Why Choose Us

1. Won many international awards and recognition due to our performance. 2. All products and machineryare produced as per international standards and duly certified by international agencies and test houses. 3. We are possibly the only company that manufactures everything in the House and not an assembly house. 4. We have our own Testing and Research lab where we keep doing tests to arrive at the best solutions for the problems in products and processes. 5. We provide 24x7 service to our International clients. 6. More than 200 plants working domestic market and the world over made by us of different products. 7. In-house final product production to study the day-to-day problems of the clients and solve them. 8. Provide full technical support to clients in terms of formulations and production. 9. International warranty for the plants supplied by us. 10. In-house or on-the-spot training of the local staff by our trained engineers at clients' cost of course. We are confident that you will surely be happy to join our family of HONGFAand make use of this opportunity

Our Company

Company Profile.

GUANGXIHONGFA HEAVY MACHINERY CO.,LTDis a leading name in research,design,develop,manufacture of environmental friendly building materials production line machines from the early 1990s. Main products: Light Weight Cement EPS Wall Panel Production Line Machine, Autoclave Aerated Concrete (AAC)Block Production Line, Concrete Batching Plant, Fully Automatic Concrete Block/Brick Production Line Machine, Concrete Tile Making Machine, Concrete Pipe Making Machine, Non-Vibration Hydraulic Brick Making Machine,Artificial Quartz Stone Production Line Machine,etc. Our strength: has four production factories and a large Research and Development center. The plant area is 440,000 ㎡ employing 1500 including 40 engineers and 150 assistant engineers. The annual sale is approx. 100 Million USD covering more than 132 countries such as the United States, Russia, Australia, Brazil, India, Vietnam, Thailand, Sudan, North Korea, Angola, Bangladesh,South Africa,Saudi Arabia,Lebanon,Qatar, etc.

Hongfa machinery Honors and Recognition.

-One of Top Ten Influential Brands in China for Brick & Tile Industry -AAA Grade Credit Enterprise. -Star Enterprise with China Patent -China National Enterprise-abiding Contract & Good Faith -Quality and Credibility of the Dual-protection Demonstration Unit -Advance Quality Management Unit -High and New Technology Enterprise -Famous Trademark of China -Consumer Satisfaction Unit -One of Top Ten Good Faith Units -Advanced Exporter in China

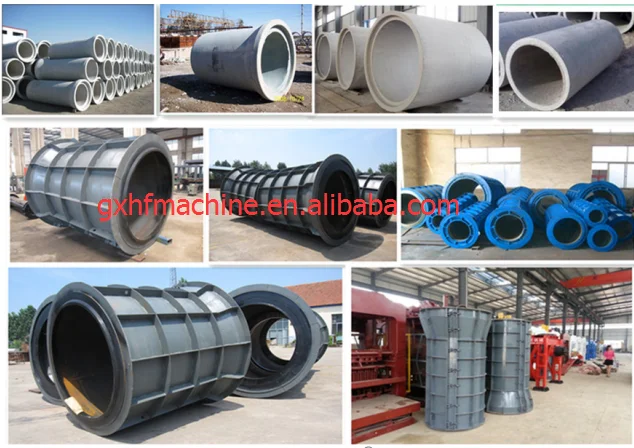

Customer Photos

FAQ.

Q1.Are your company is the manufacture or trading company? A1. We are Direct factory,not agent or trading company,and the quality and after-sale services is quaranteed.

Q2. When do you delivery the goods? A2. Normally 30 days after receipt of deposit and moulds confirmation from Buyer

Q3. What about the payment? A3. 30% as down deposit by T/T, 70% as the balance paid by T/T before loading(L/C is also acceptable).

Contact Miss. Frida Fu

Sales Manager & Marketing Director
Mobile/WhatsApp: +86 188 7799 1859
Guangxi Hongfa Heavy Machinery Co., Ltd.
Add: Yiling Yan Industrial Zone, Nanning, China
