Hongfa Wall Formwork/prefab House Sandwich Panel Machine/precast Concrete Mold Eps Lightweight Cement Wall Panel Production Line

(10 Lượt)

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Nhà sản xuất, chế tạo • 1 năm

Giá

471,700,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Hongfa Wall Formwork/prefab House Sandwich Panel Machine/precast Concrete Mold Eps Lightweight Cement Wall Panel Production Line

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Hongfa Wall Formwork/prefab House Sandwich Panel Machine/precast Concrete Mold Eps Lightweight Cement Wall Panel Production Line

Nhà cung cấp

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Thông tin nha cung cấp của bạn

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

China HFP530A 3d wall panel machine, concrete wall panels making machine, lightweight wall panel making machine concrete wall panel forming machine 3d precast concrete hollow core wall panel machinesprecast concrete hollow core wall panel machine3d wall panel machines Machine For Precast Concrete Farm Fencing Wall Cement Fencing Pole Making MachineChina GUANGXI HONGFA fully automatic Vertical double open lightweight cement eps wall panel machine sandwich panel machinery

1.Patentprotectedproduct
2.Labor-savingandAdvancedTechnology
3.Doublesideopeningandhighercapacity
4.ISO9001-2015
5.Adoptstouchscreencontrol,automaticfilling,electronicweighing,temperaturecontrol,

materiallevelcontroltorealizeautomaticproduction.
6.Easytomaintainence,Easytoclean.

Other equipment of the wall panel production line

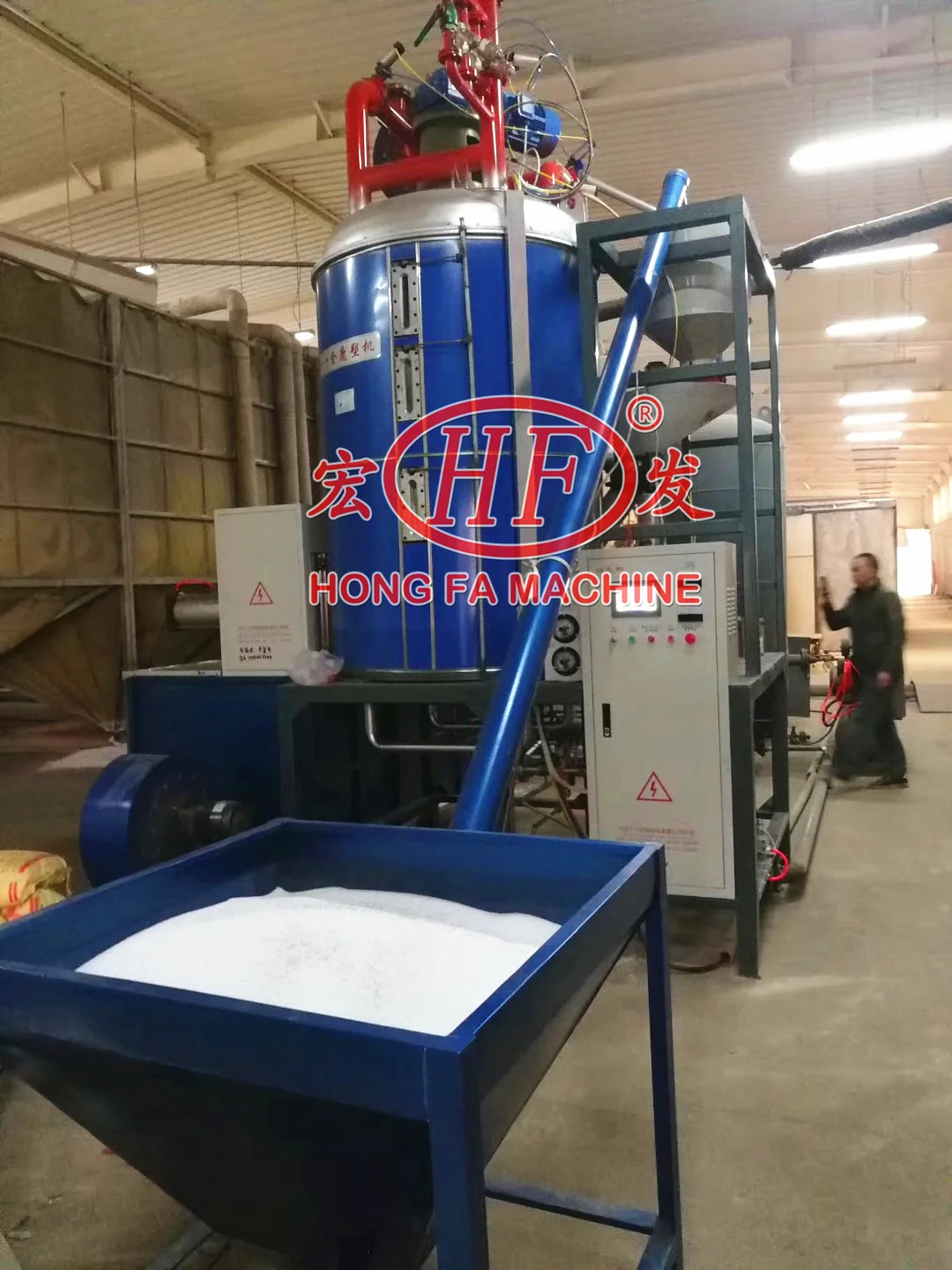

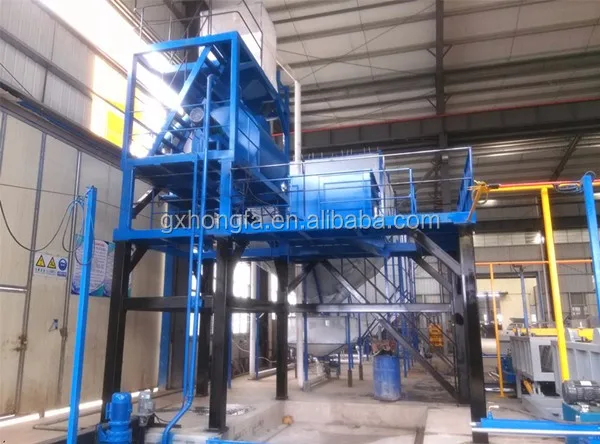

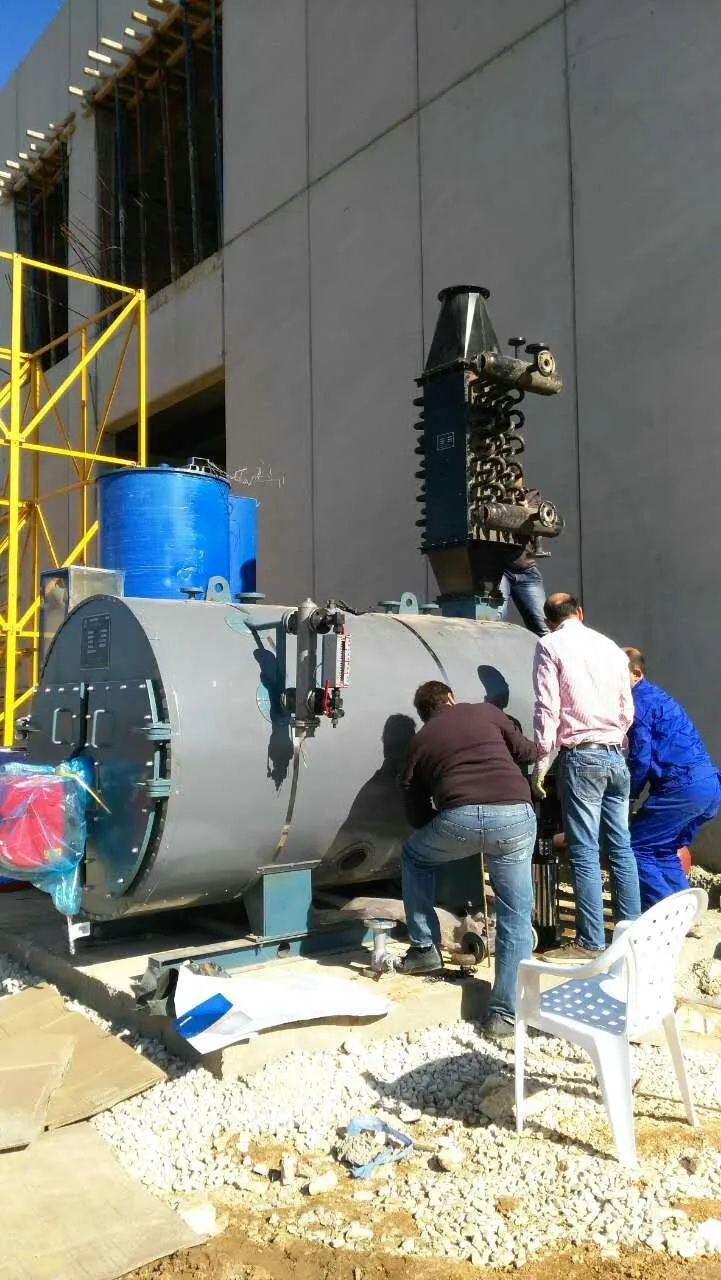

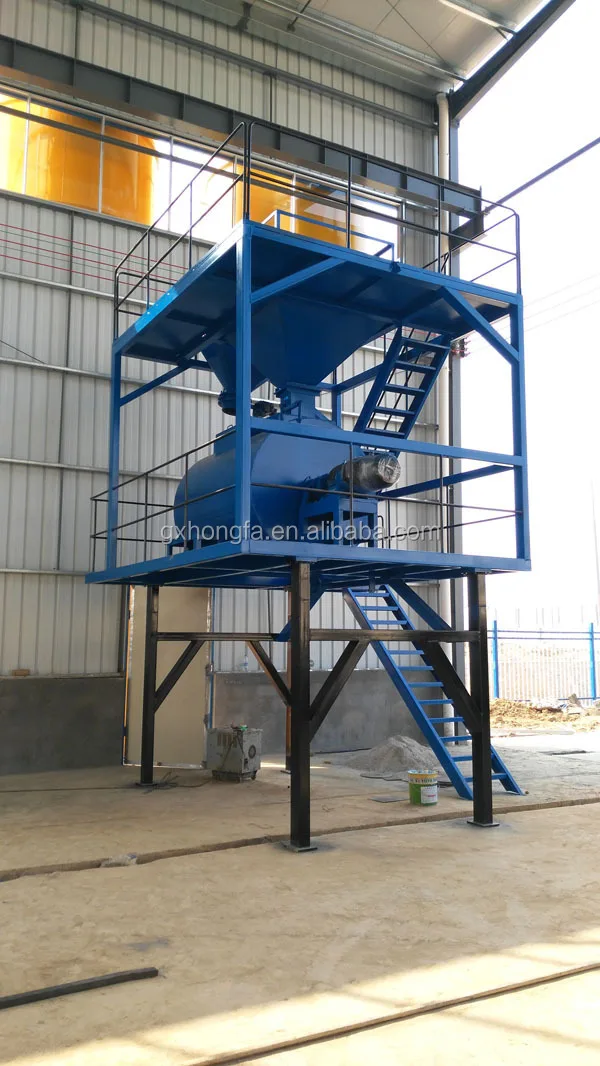

Boiler Capacity: 0.5t/h Available Fuels :Coal diesel oil and natural gas etc. Function: Generate the steam for the EPS expander	EPS Expander Machine with Fluidized Drying Bed Power: 7.75 KW Function: Expand the EPS raw materials to foam particle	JS3600 Mixing Machine Power: 11 KW Capacity: 3.6 m3 Dimension: 5140x3045x9530 mm Function: Mix Materials,like cement.sand, fly ash, water, EPS, and additives etc.

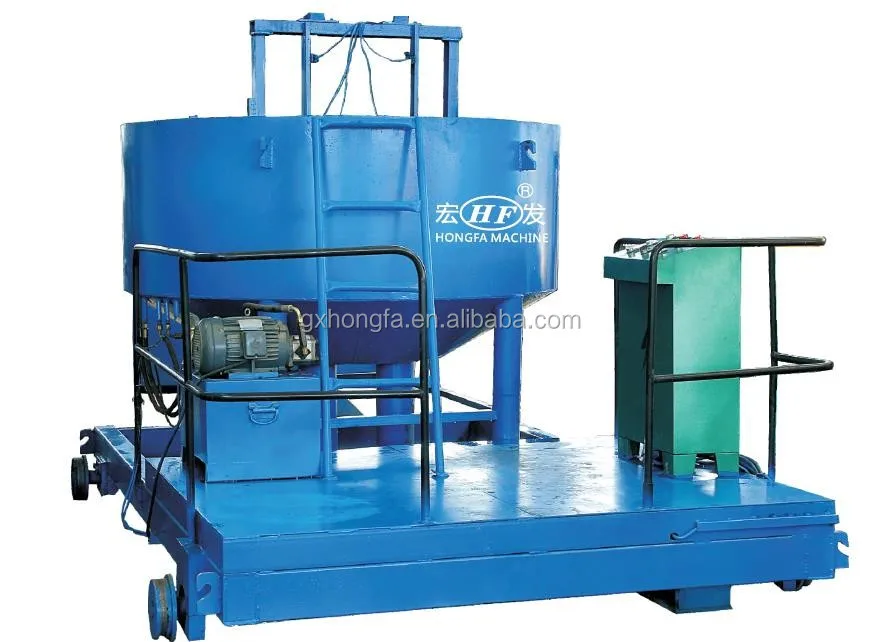

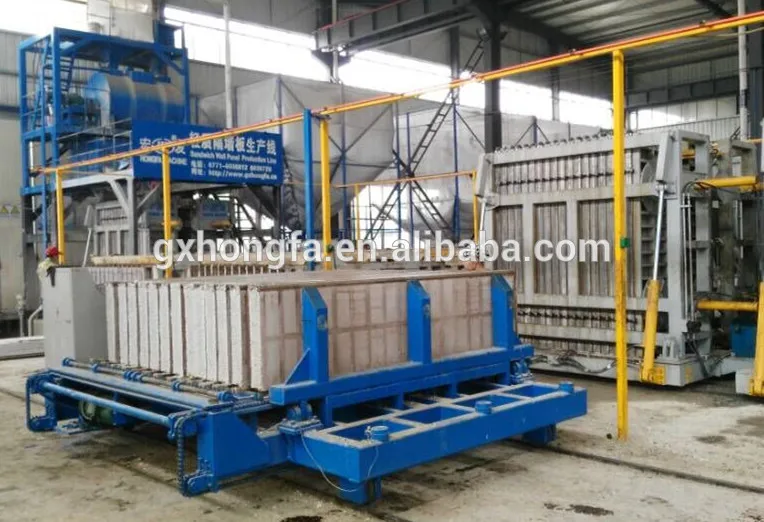

Movable Slurry lnfusing Machine Power: 5.2 KW Capacity: 3 m2 Dimension: 3000x2000x1950 mm Function: Infuse the slurry to the mold car	Stationary Platform and Movable Slurry Infusing Unit Power: 3 KW Capacity: 3 m2 Function: For slurry infusing, with optional natural and hydraulic methods	Mobile Demoulding and Stacking Machine Power: 5.2 KW Dimension: 4400x3527x1519mm Type: Hydraulic Function: Automatic remove the finished panels from the mold cars and turn over the products for forklifts to transport and stack to the storage field

1.The raw materials to make EPS concrete lightweight wall panel

1) Outside (side board) - Calcium silicate board or Cement fiberboard - Also can be without the side board.

2) Inside (core material) - Cement, Foam EPS, Fly Ash, Additives (Hydroxypropyl methyl cellulose) Or without EPS foam The fly ash can be replaceable by sand or other material

2.Common Specifications of EPSlightweight wall panel

StandardL*W*H:2440mm*610mm*50mm/60mm/75mm/90mm/100mm/120mm/150mm/180mm/200mm/250mm,othersizesuchaslength3000mm,3200mm,3500mm,4000mmcanbecustomized.

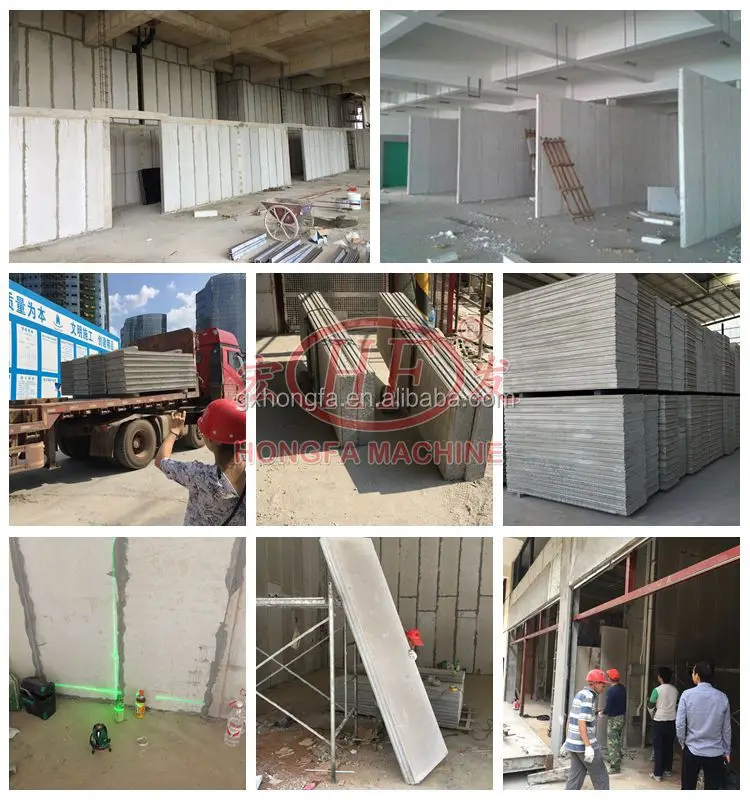

3.Applied range of lightweight EPS wall panel

For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can be widely applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, shopping mall, amusement, old house reconstruction, residence and workshop.

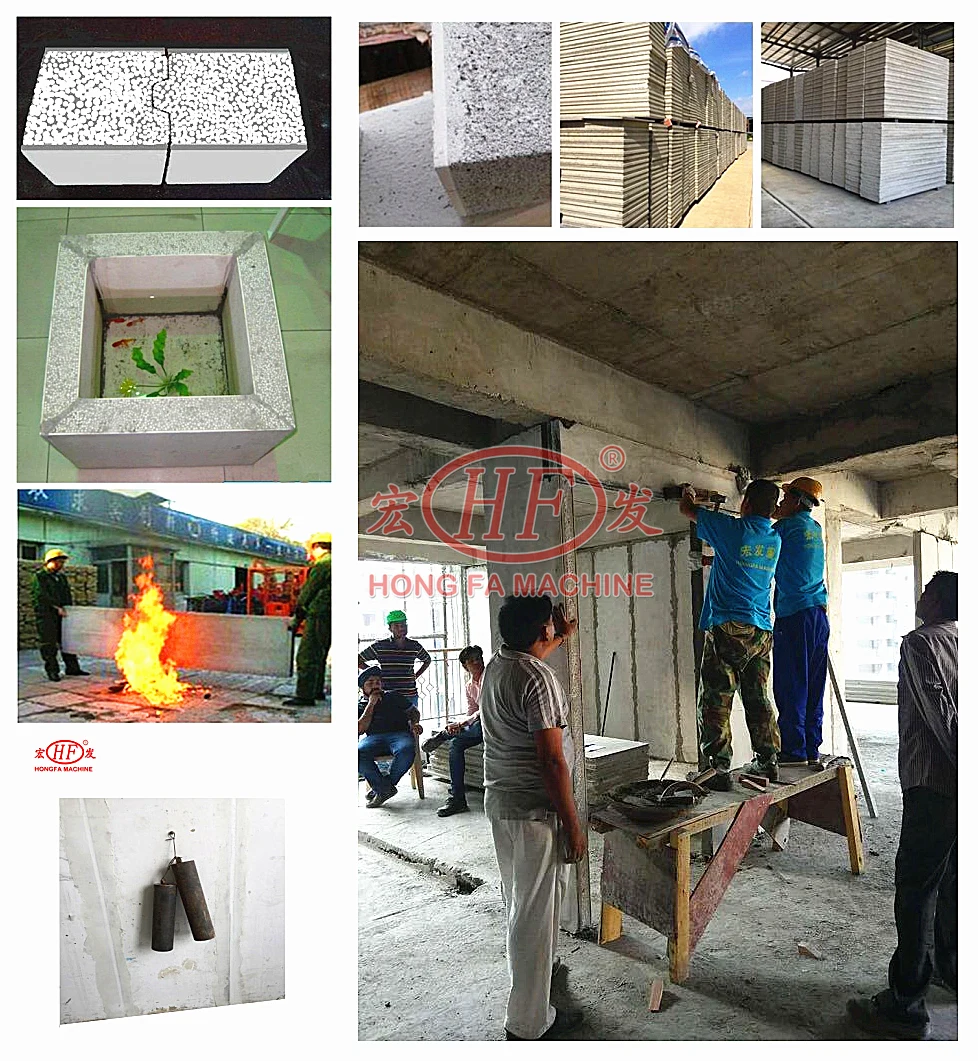

4.Advantages of Hongfa wall sandwich panel

Light weight----Excellent sound insulation----- Heat Insulation

Waterproof Fire proof--------- Energy Efficient Environmental

Convenient construction-----High Intensity without deformation.

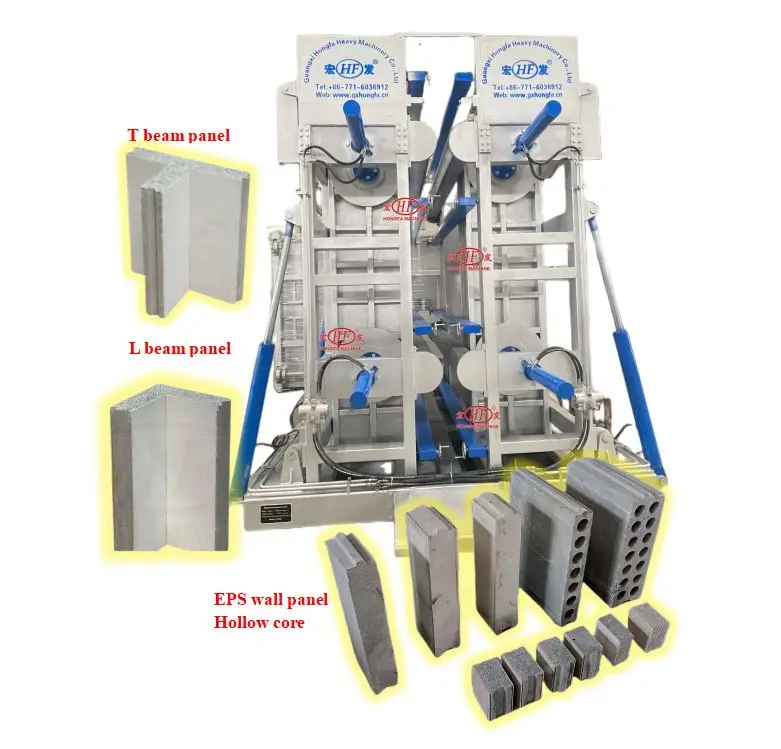

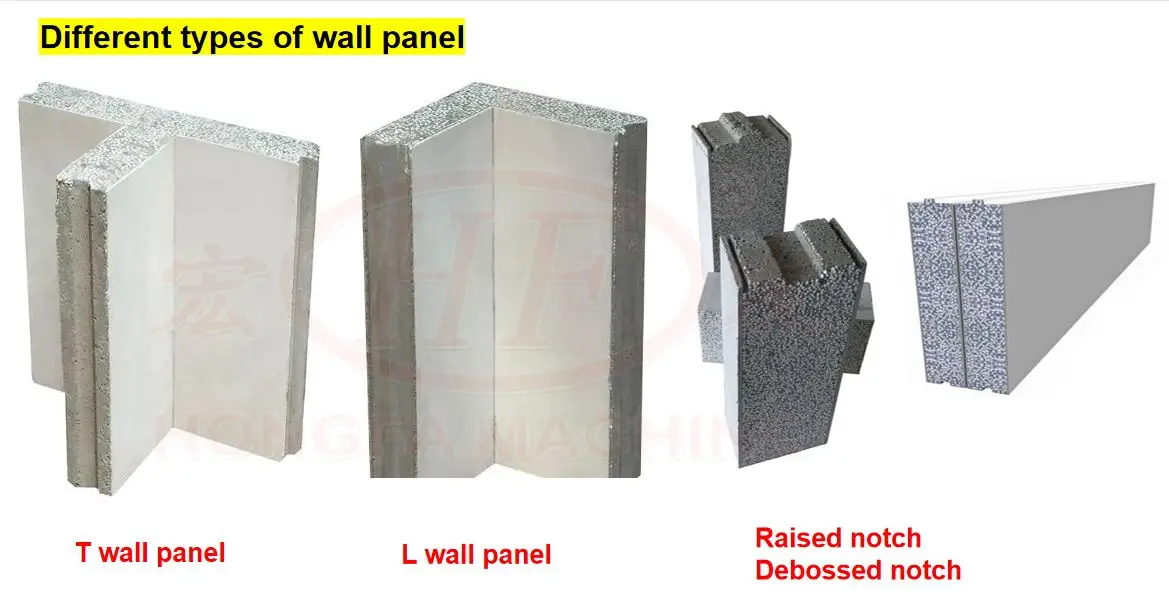

Our machine support making different shapes of wall panels, like" T " shape and "L" shape, which are usually be placed on the corner of the building.

T/L Shape precast concrete panels wall machine/Precast concrete hollow core wall panel machine/precast wall panel machineConcrete Precast Forming Machine Wall Board Making Machinery sandwich lightweight eps wall panel machine production lineprecast concrete hollow core wall panel machine a panneaux muraux T shape wall panel L beam wall panel machine

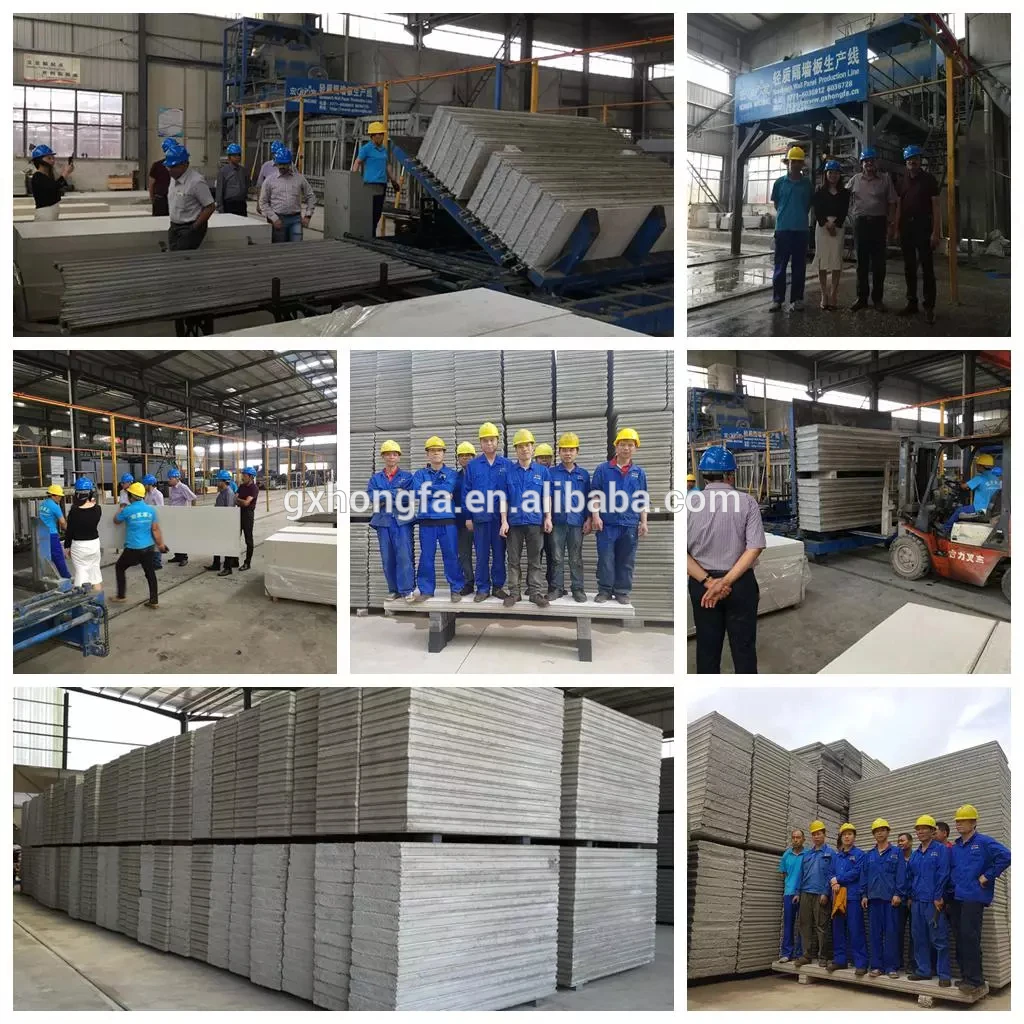

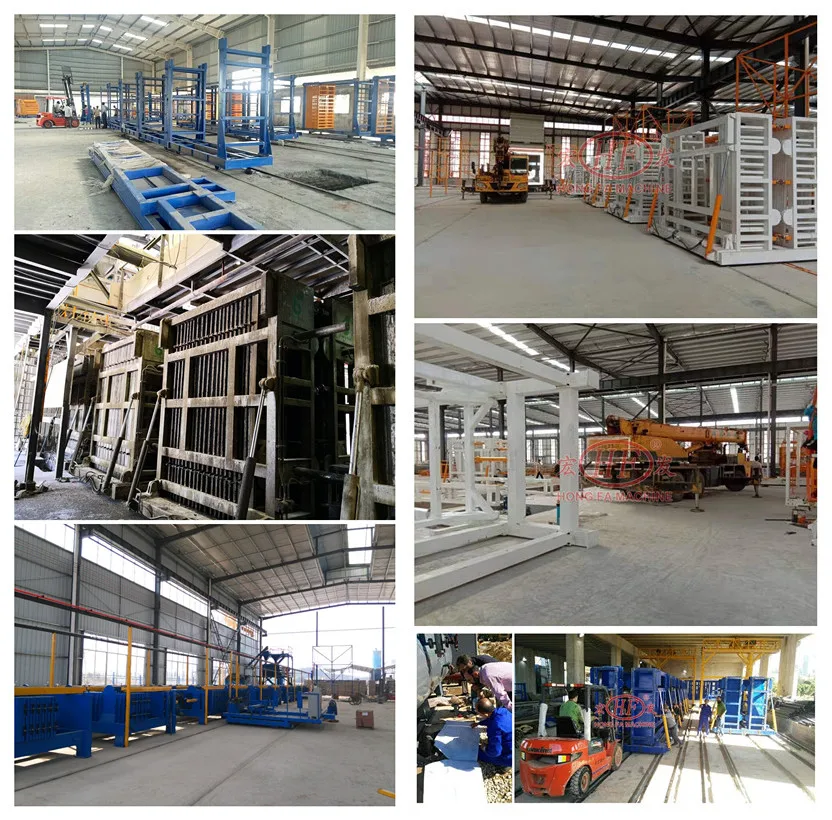

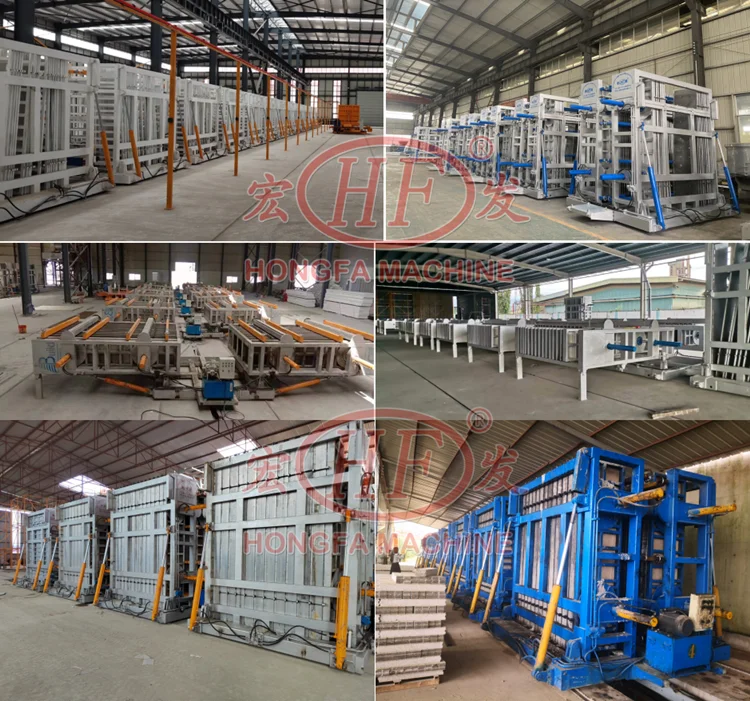

Successful Plants ofcementEPS Sandwich Concrete Wall Panel Making Machine in Board Making Machinery

Hongfa Group Produce Several types oflightweightEPS Sandwich Concrete Wall Panel Making Machine in Board Making Machinery

1:Horizontal type Lightweight Precast Concrete Wall Panel Making Machine HFP512A
This EPS wall panel making machine is automatic type, easy operation and less workers.

Brief introduction:

(1)Horizontal lightweight wall panel molding machine adopts PLC and touch screen control, automatic filling, electronic weighing to realize automatic production.
(2) With the same machine, it can adjust the panel size and thickness. The thickness could be from 60 to 25
(3)Most components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.

3:Semi automatic vertical Lightweight Concrete Wall Panel Making Machine HFP540M

Manually install the moulds and boards, the highest output amount the three types, but requires more workers. This kind of sandwich lightweight wall panel machine is in lowest investment.

This sandwich concrete dry wall panel is in low investment and highest capacity. This kind of sandwich lightweight wall panel machine can be considered due to the limit of functional requirements.
