HONGFA Aac Machine Construction Building Foamed Cellular Light Weight Concrete Blocks Making Machine

(15 Lượt)

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Nhà sản xuất, chế tạo • 2 năm

Giá

2,147,483,647 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

HONGFA Aac Machine Construction Building Foamed Cellular Light Weight Concrete Blocks Making Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

HONGFA Aac Machine Construction Building Foamed Cellular Light Weight Concrete Blocks Making Machine

Nhà cung cấp

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Thông tin nha cung cấp của bạn

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

HONGFA Sand Fly Aac Machine Aac Block Machine Production Line Aac Concrete Block Machine

Hongfa has 80 production line plant abroad AAC (Autoclaved aerated concrete) block Main raw materials of AAC are siliceous material (sand, fly ash and Silicon tailings) and Calcium materials (lime and cement) mixed with foaming agent (aluminum powder).

It is the product of light porous silicate through the following processes: batching, mixing, pouring, hardening,
cutting,autoclaving and curing etc. Because of large amount of well-distributed tiny pores after foaming, it is named autoclaved aerated concrete. AAC Classification: In general, it can be classified according to the types of raw materials, manufacture process and functions.

Based on the shape of AAC products, it can be divided into: AAC blocks and AAC panels. It is a revolutionary material offering anunique combination of high durability and strength, low weight, excellent heat insulation, fire resistant, noise absorption,unprecedented build ability and superior ecological green features. In China, AAC is one of the light wall materials which waspopularized and applied at the earliest and the most widely.

More Infor Contact Tina: 86 18275773233

Specification

Raw material preparation for AAC plant:

AAC block raw material required performance:
Fly ash: A lot has been said about this raw material in this Project Profile itself. But this Raw material is freely available in
Thermal Power plants. There are no taxes on this item whatsoever. Transportation charges are only to be attended by the
entrepreneur.
Sand (65-70%): The core raw material of AAC product; the main resource of silica-aluminum components; correspond with JC409-91,the clay should less than 4%.

Lime(12-20%): One of the main raw materials of fly ash AAC; the main effect is to provide efficient calcium oxide with cooperation of cement making calcium oxide react with SiO2, Al2O3 in hot water then to produce calcium silicate hydrate. Therefore, lime is also the main resource of strength. Effective calcium oxide of lime should not less than 65%, over 80% is perfect and should accord with JC/T621-1996.
Cement(8-10%): This Project aims to utilize OPC cement as main binder material. It will give faster strength to the bricks,
besides giving improved consistent quality. It also ensures a better cost effectiveness for the same. Using OPC will be a
standardized practice. The other prime advantages of using OPC (compared to other binders) is it’s easy availability locally
through nationwide Retail Network of Cement Companies.
Gypsum(1-2%): Gypsum is the foaming regulator in AAC which dispels quicklime and postpones slurry’s densification.CaSO4 should be more than 70%.
Aluminum Podwer(0.074%): It is the forming agent type and recommendation for supply depend on raw materials and mix formula:A lot
has been said about this raw material in this Project Profile itself. But this Raw material is freely available in Thermal Power
plants. There are no taxes on this item whatsoever. Transportation charges are only to be attended by the entrepreneur.

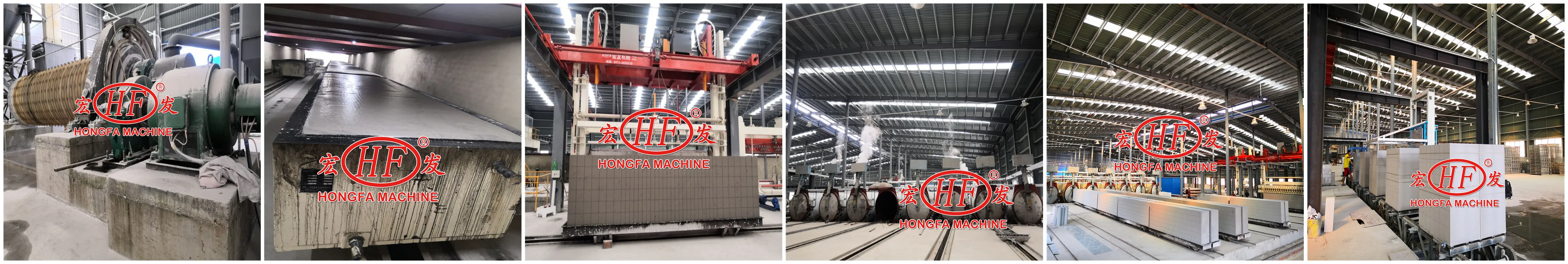

Main Equipment For AAC Line

Raw material dealing

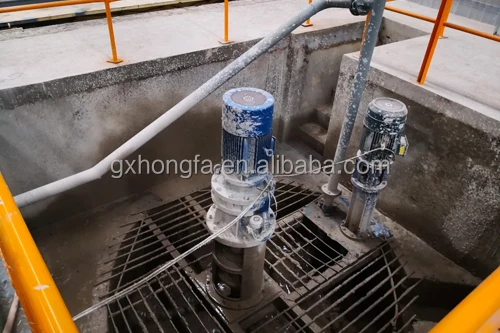

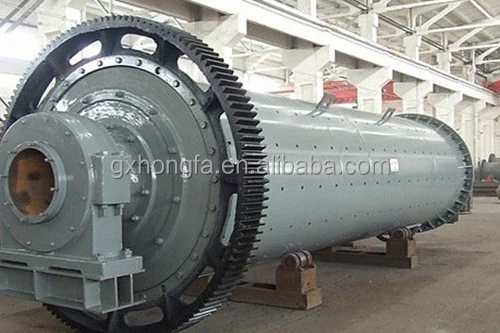

Put the fly ash or sand into the ball mill to mill via the conveyor belt, after milling, put the slurry into the slurry storage tank by slurry pump.

Batching, mixing and pouring p

The lime, cement will convey by conveyor to the dry powder measure scale to scale separately. The slurry convey by slurry pump then to the automatic scale;the power and slurry put into the mixer,pouring into the mould.

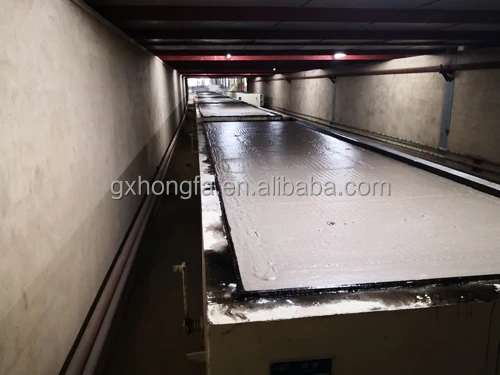

Curing process

After slurry pouring into the mould, put the mould box into the curing room with 50~70℃. After 2-3 hours curing, the blocks become soft solid and ready for cutting.

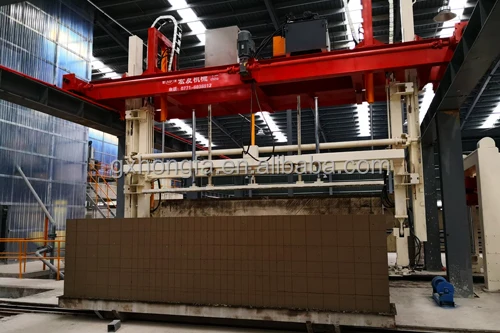

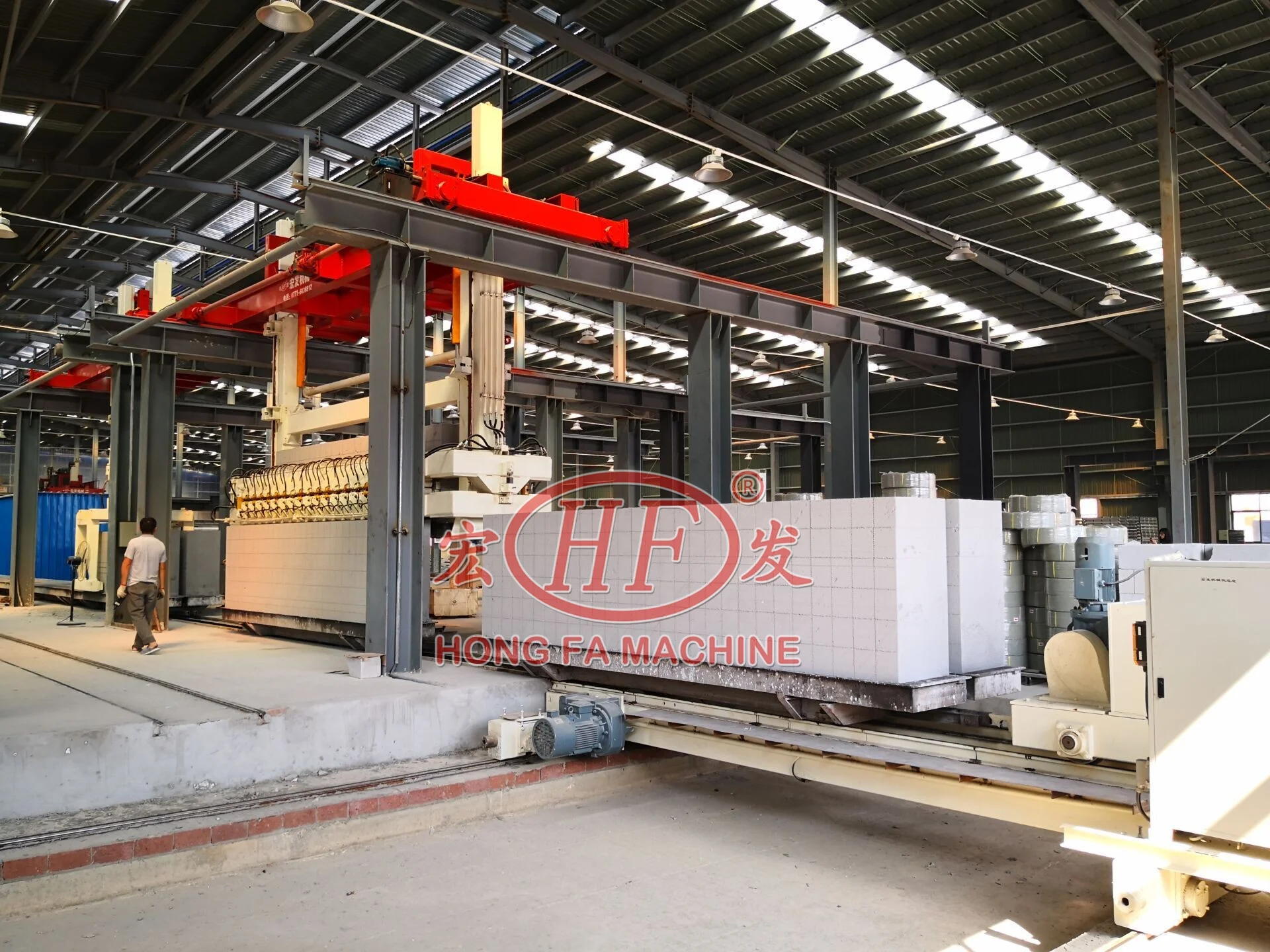

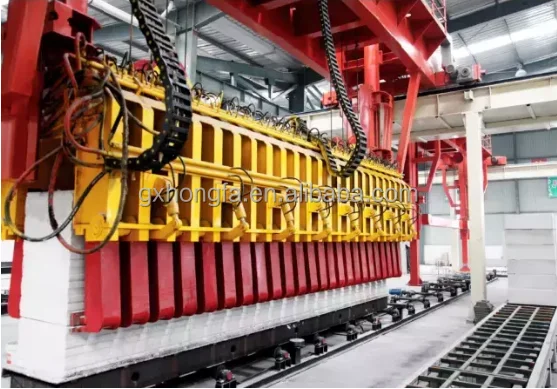

Cutting process

Cutting size can be adjusted flexibly, with 0 broken rate.

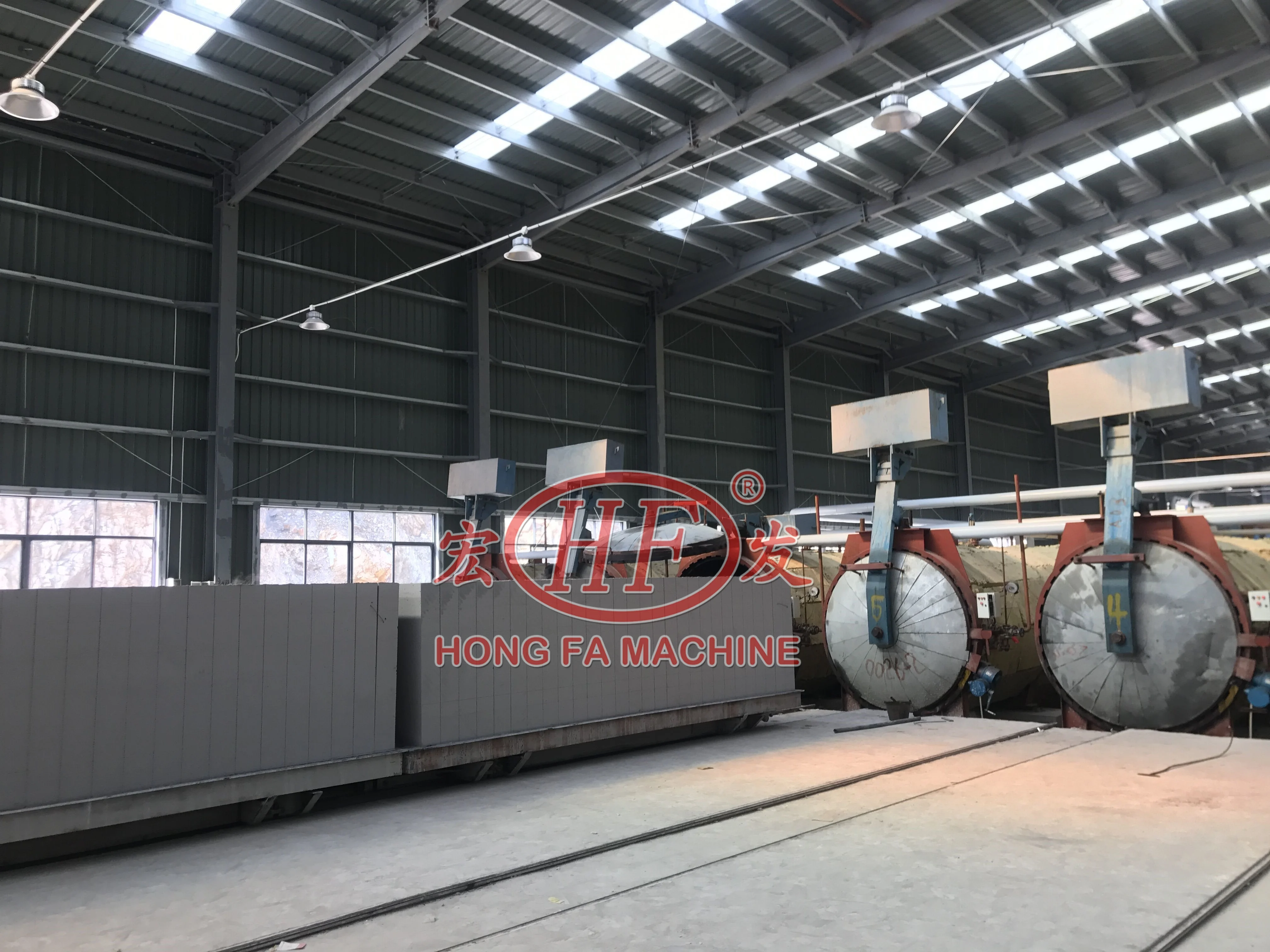

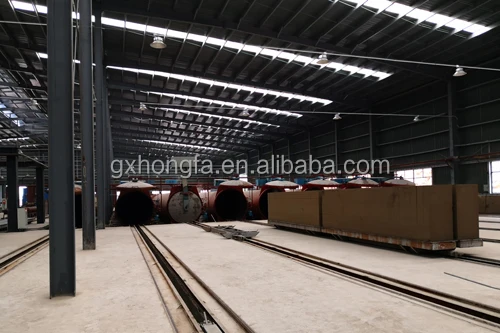

Aerated autoclaved process

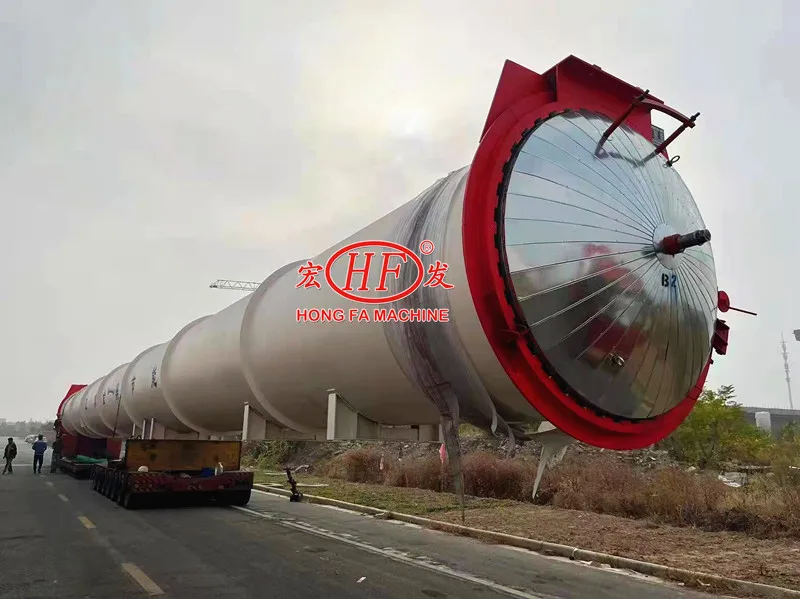

Finished cutting using semi-product crane carry to the front of autoclave grouped, hoisting machine or dragger will drag steam trolley into autoclave to steam,it need 6-10 hours.

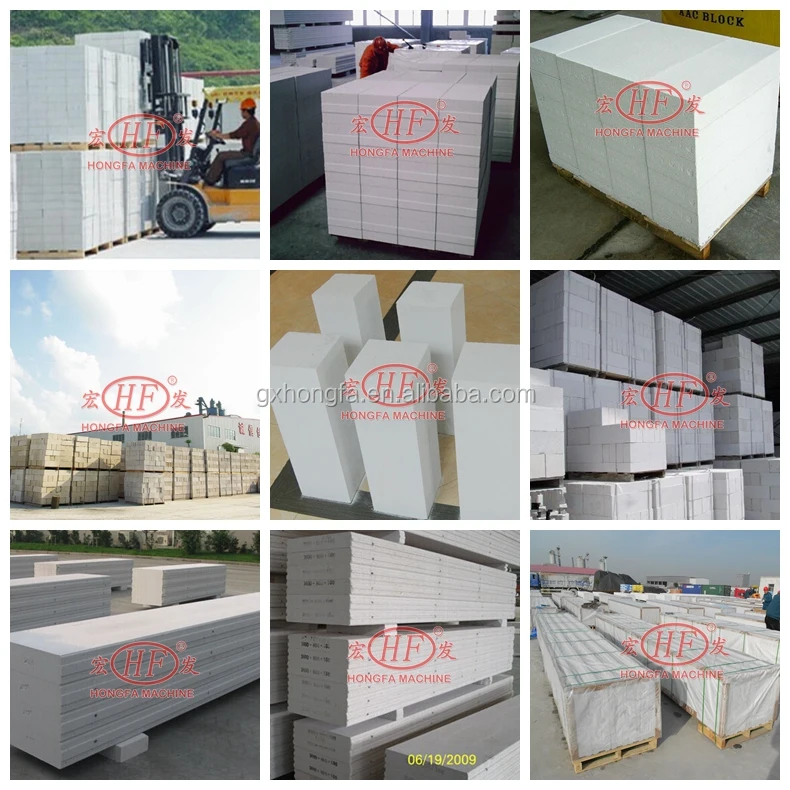

Finished block dealing process

After 6-10 hours, finished products come out of autoclave, with separting machine to separate blocks layer by layer.

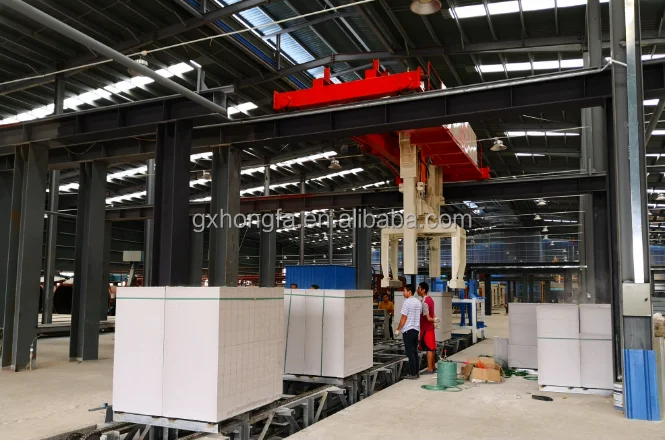

Packing process

Using finished block carry hanger clamp the finished product to package line on wooden pallets,after package, then by forklift
transport the finished products to piled yard according to specifications to stack.

Hot Sale Products

Click The Pictures For More Information

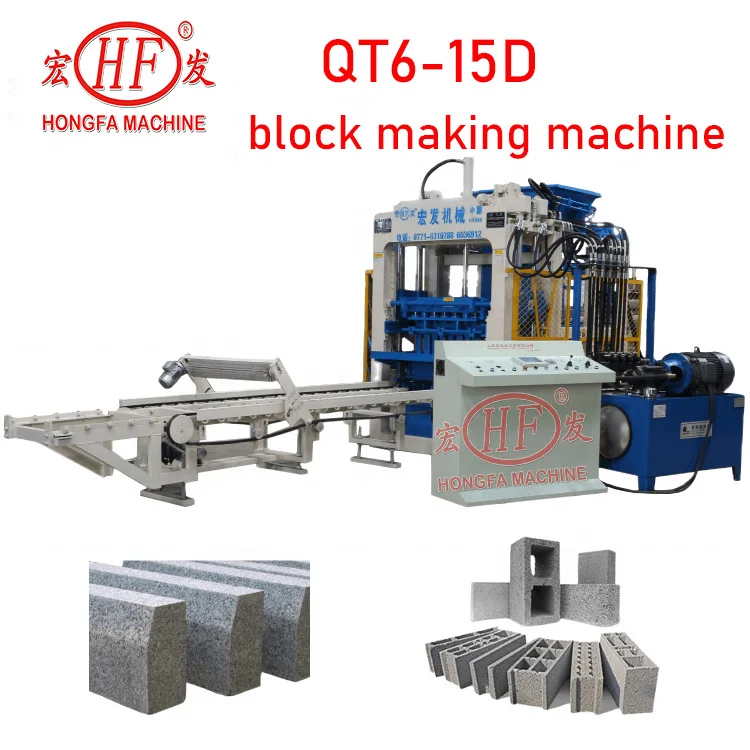

QT6-15D BLOCK MAKING MACHNE

HFP530A WALL PANEL MACHINE

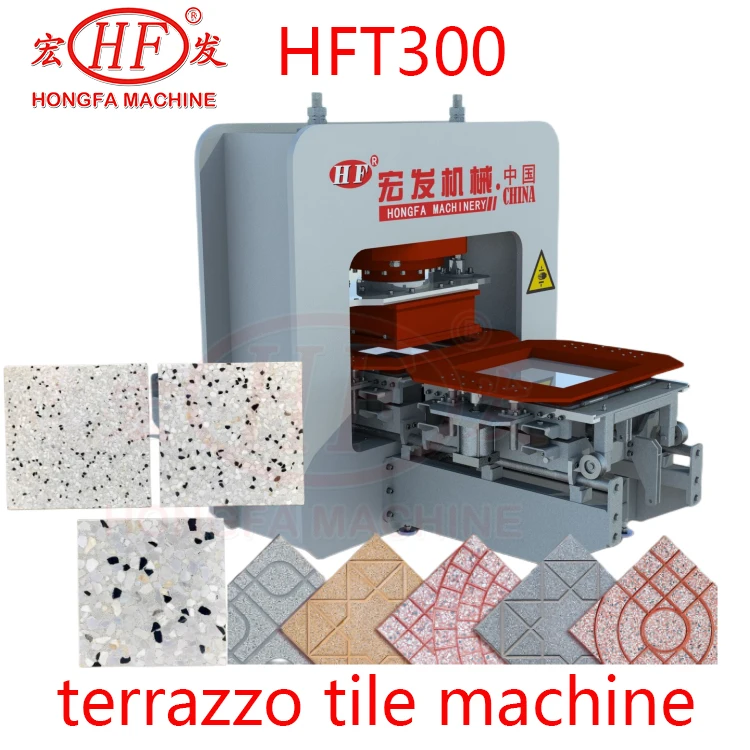

HFT300 TERRAZZO TILE MACHINE

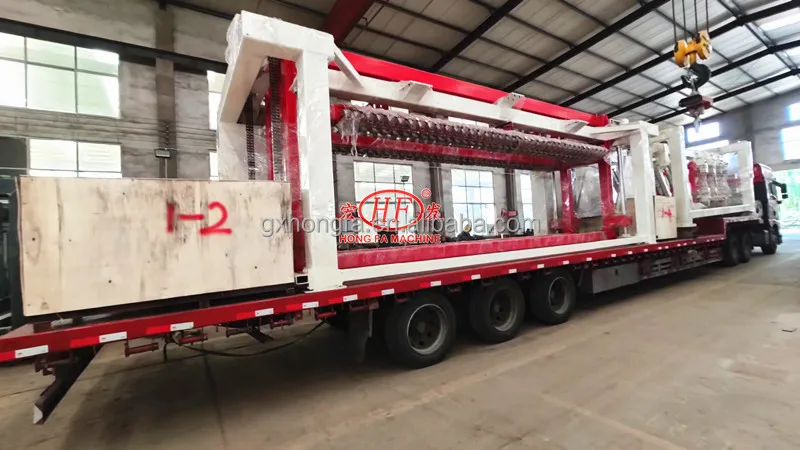

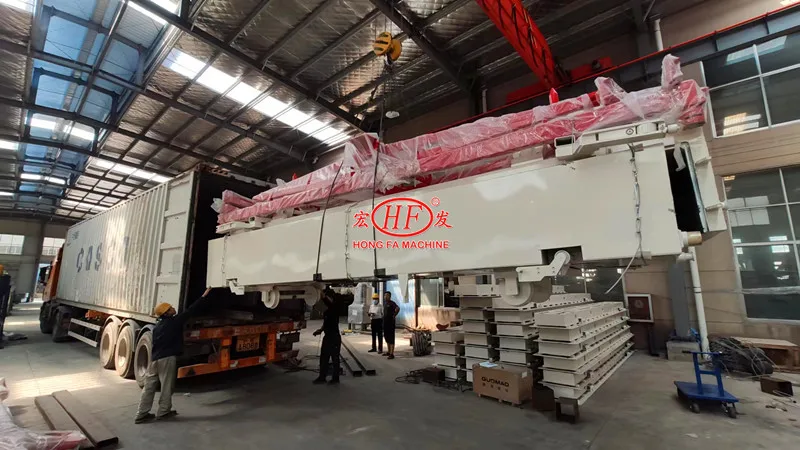

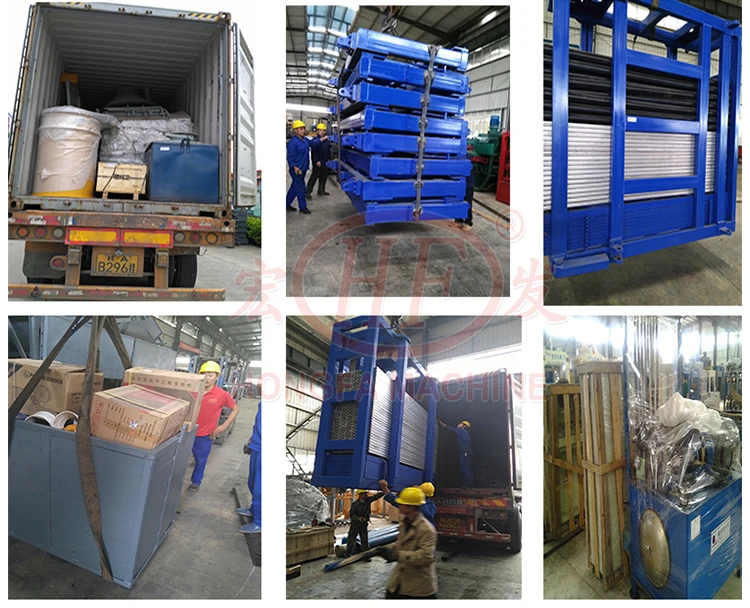

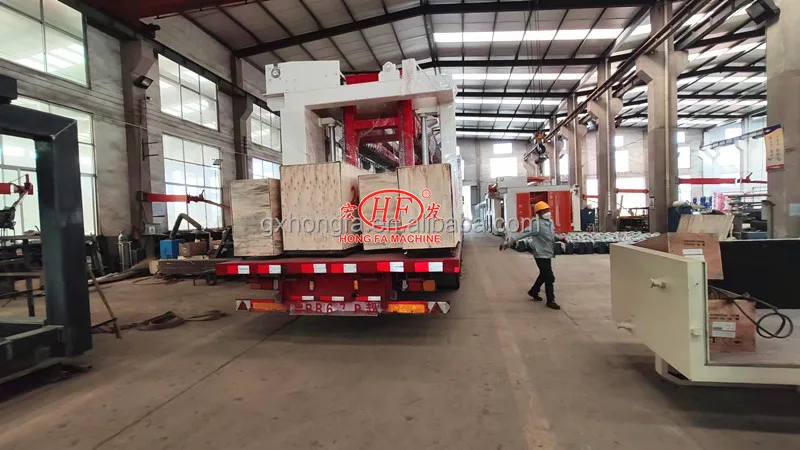

Packing&Shipping

Packing: Naked packing or stretch film packing or according to customers' requirements
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer of board making machinery

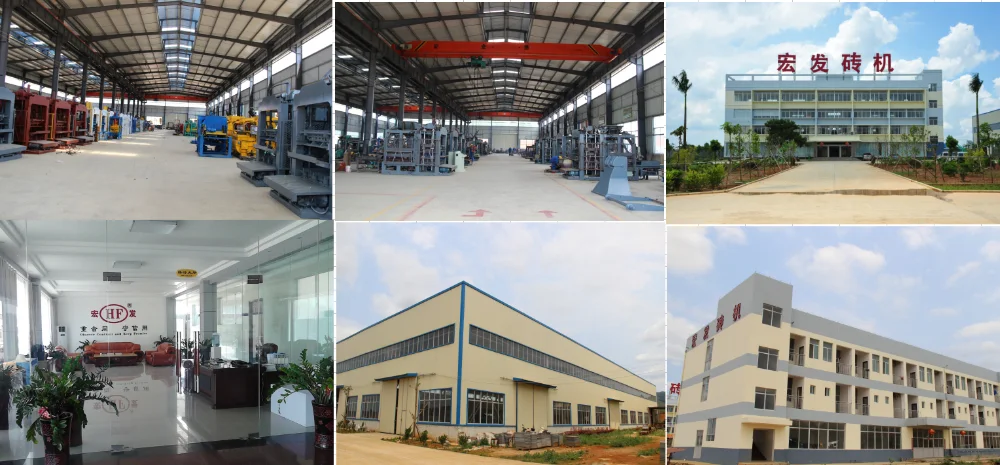

Company Introduction

Hongfa Machinery Group

We are a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine,concrete mixing plant,mixer,concrete brick making machine,concrete tile making machine and concrete pipe making machine etc. with more than 30 years experience and being the biggest manufacturer in China at present.All the products are conformity with the standard of the state, and gets the ISO9001-2000 Quality System certificate, also honored as "One of the Top Ten Famous Brands of Brick & Tile field in China" and other honors.

Hongfa Machinery's Hono

Our Services & Strength

Guarantee for one year and after sale service for whole life.To offer free design,free technology support and free machine maintenance trainning.

We will provide you with a set of spare parts for free!

Exhibitions & cooperations

Hongfa, as a top brand enterprise in China, our products are also exported to Russia, Brazil, Thailand, Indonesia, Vietnam,Angola, Bangladesh, India, Australia, Sudan, etc., 132 countries and regions, deeply welcomed by clients from all around the world.

FAQ

1. Can this machine make my brick or other size block?

We would design and do the mould according to customer's Drawing.

2.Are your company is the manufacture or trading company?

We are Direct factory,not agent or trading company,and the quality and after-sale services is quaranteed.

3.What is the guarantee period?

We guarantee for one year after installation finished at buyer's factory.

4.What is your terms of payment ?

30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).

5.The price cover to what equipment?

Please refer to our quotation list.

Sales Manager :Tina Huang
Tel:0086-18275773233(whatsApp)
Fax:0086-771-6036901
Guangxi Hongfa Heavy Machinery Co., Ltd.
Wesite: www.gxhongfa.cn
Factory add: Linyi city, Shandong province & Nanning city, Guangxi Province, China
