GW Laser Source Fiber Price Fast Response High Power Fiber Laser Cutting Electric Source 1000W 1500W 2000W 3000W

Name: GW Laser Source Fiber Price Fast Response High Power Fiber Laser Cutting Electric Source 1000W 1500W 2000W 3000W
Price: 99750000 VND
Availability: InStock
Rating: 5 (100 reviews)

(10 Lượt)

Công ty TNHH Phát triển Công nghệ Tongxing

Nhà sản xuất, chế tạo • 2 năm •

Giá

99,750,000 đ

Giá sỉ

0986xxxxxx

Giá số lượng lớn

0986xxxxxx

GW Laser Source Fiber Price Fast Response High Power Fiber Laser Cutting Electric Source 1000W 1500W 2000W 3000W

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

GW Laser Source Fiber Price Fast Response High Power Fiber Laser Cutting Electric Source 1000W 1500W 2000W 3000W

Nhà cung cấp

Công ty TNHH Phát triển Công nghệ Tongxing

Thông tin nha cung cấp của bạn

Công ty TNHH Phát triển Công nghệ Tongxing

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

Product Description

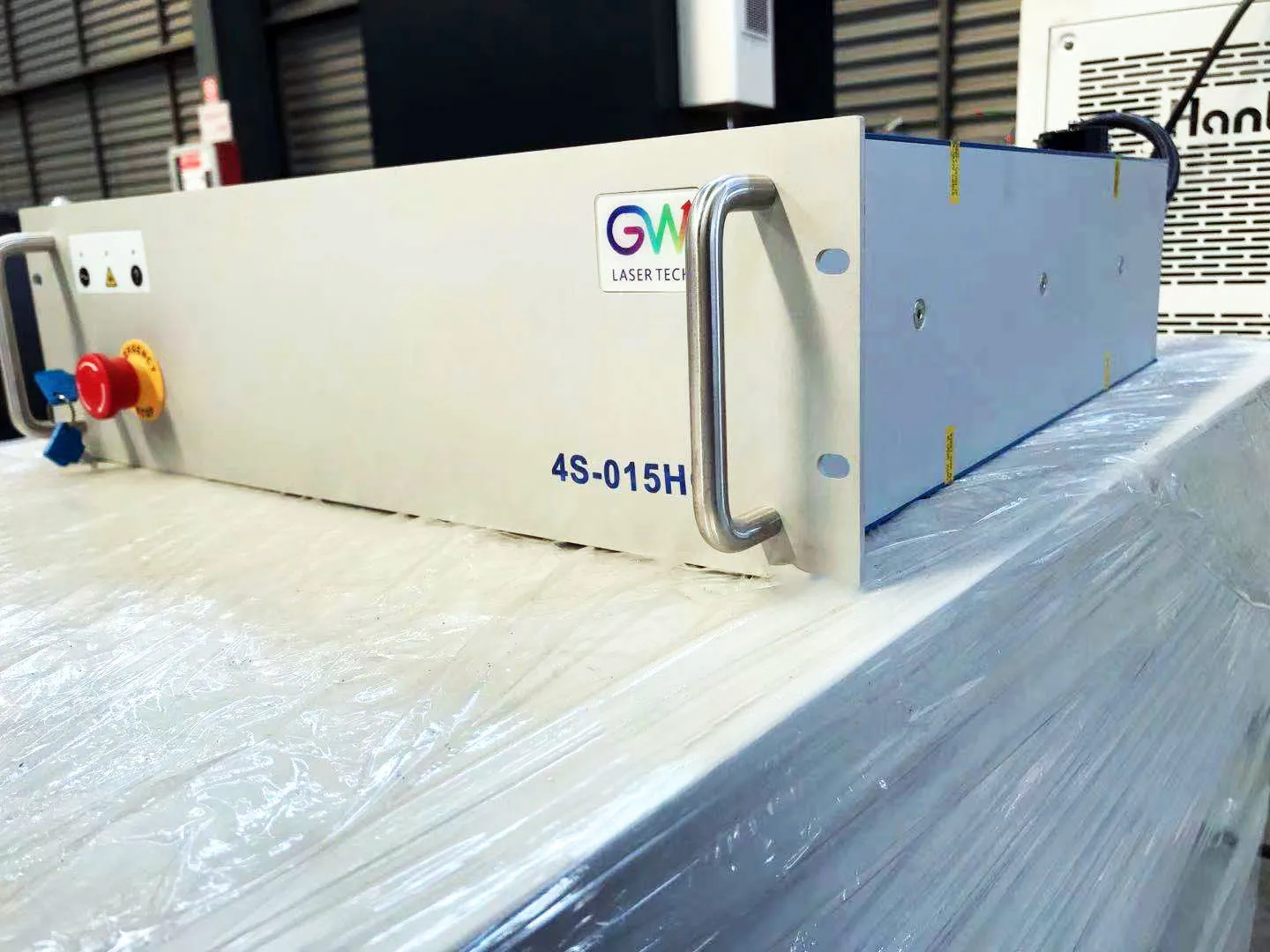

GW Laser Source Fiber Price Fast Response High Power Fiber Laser Cutting Electric Source 1000W 1500W 2000W 3000W

About GW Laser Tech

Since its inception in 2014, GW LaserTech has been providing reliable and competitive industrial lasers, as well as professional laser application services and industrial laser solutions for customers around the world.
GW LaserTech believes in WIIE (Win- win, Integrity, Innovation and Excellence). With the determined pursuit of cutting edge laser technology, GW LaserTech is well positioned to provide our customers the innovative industrial laser products for advanced manufacturing including aerospace, automobile, medical, laser additive manufacturing, microelectronics and many other applications that require advanced laser products and innovative industrial laser solutions. GW LaserTech is here to bridge the cutting-edge laser technology and the advanced manufacturing with its application expertise.

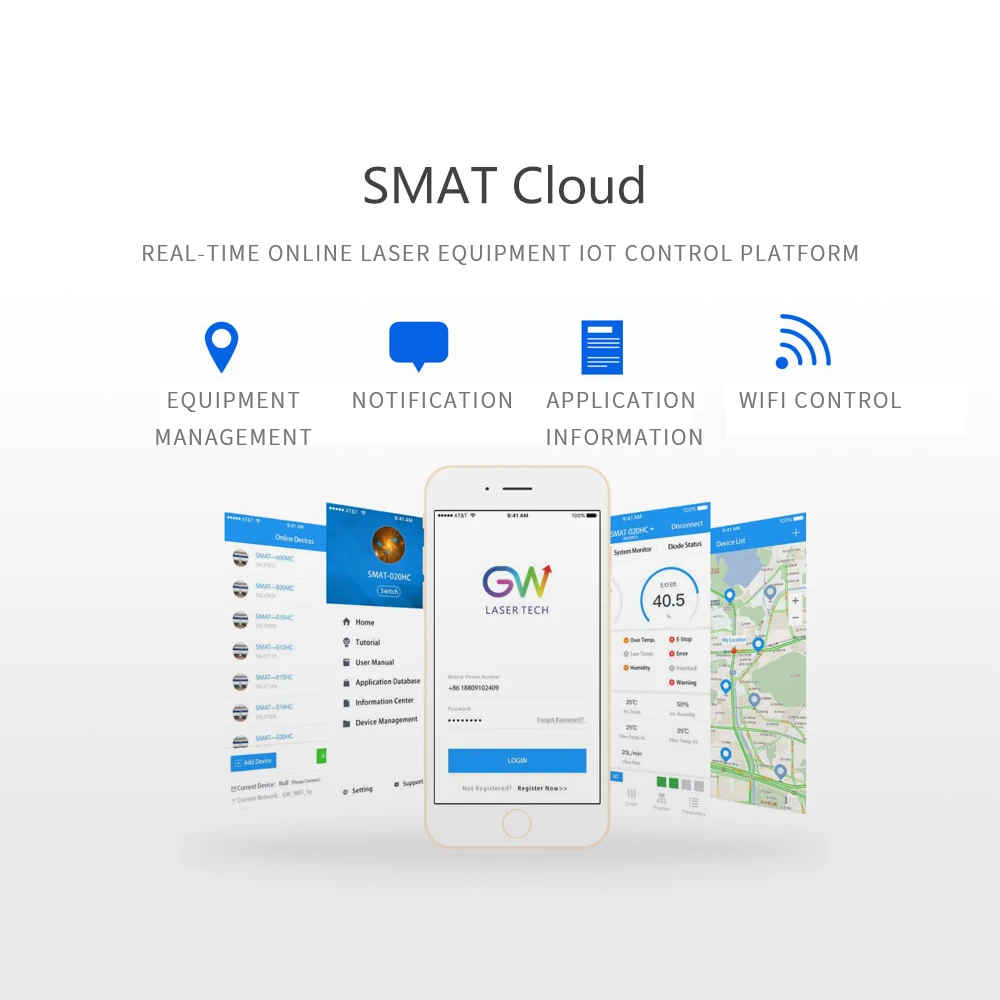

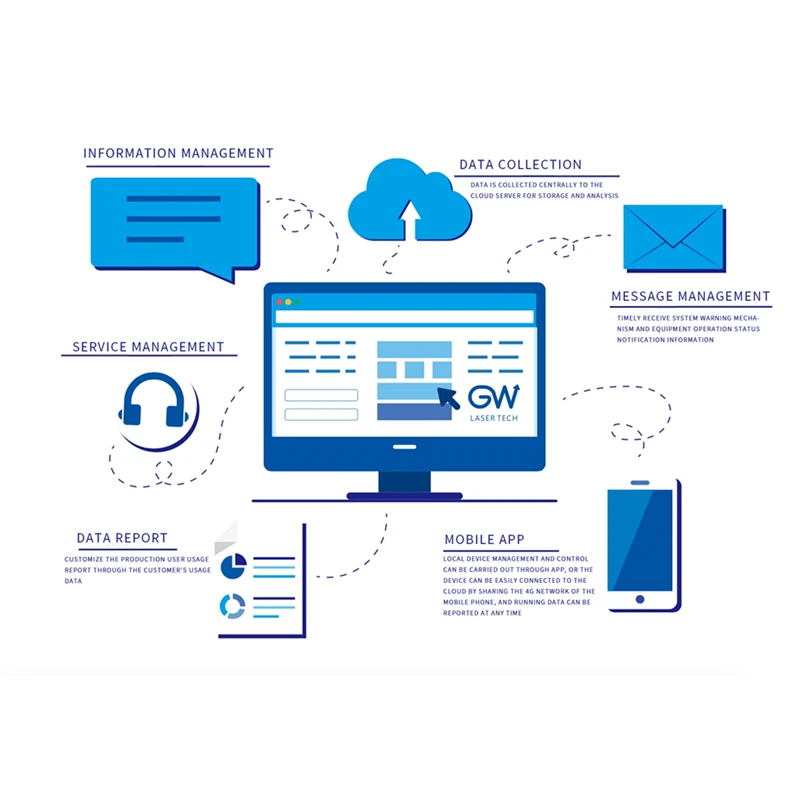

The Connected Laser - Intelligent Remote Service

With the proprietary SMAT technology,every GW laser can be connected,and is capable of being remotely monitored and serviced. In
addition, the connected GW lasers are capable of self diagnosis, early failure prevention and other self-protection feautres.GW
laser products can be connected to cloud platform through Ethernet, 2G /3G /4G /5G, WiFi, etc,manage the laser through Android /
Apple App and send the data to the cloud,based on the cloud platform, the cloud management and visualization of laser management can be fully realized.

Features

Specification

1. Optical Specification
Norminal Maximum Power (W)	1500W
Operation Mode	C/P/M
Output Power Range（%）	1-100%
Laser Wavelength (nm)	1075 ± 10 nm
Laser Beam Quality @ Collimator	M2≤ 1.3, for 20 μm fiber
Power Stability	< 2%（the water temperature is 25 ± 1 °C）
Maximum Modulation Frequency	50kHz
Laser response time	< 10us
Guiding Laser Wavelength (nm)	650
Guiding Laser Tuning Range (mW)	0.5-1
2. Fiber Delivery System
Interface	QBH
Delivery Fiber Core Diameter & Length	20μm/15m, other length available upon request
Delivery Fiber Type	Step index fiber with breakage and thermal monitor
Delivery Cable Length	15 +/- 0.5m standard, other length available upon request
3. Cooling
Minimum Cooling Capacity	3.0 kW
Minimum Flow Rate	25 L/min
Coolant Temperature Range	25 ± 3 °C
Supply Coolant Pressure	5-6 bar
4. Electrical and Environmental
Supply Voltage	220VAC/50Hz/60Hz
Electrical Power Consumption	<= 5.0 kW
Ambient Temperature Range	5 - 45°C
Ambient Humidity	<=95 degree
5. Control Interface
Digital Signal	24 VDC
Power Control	0-10 V DC (40 μs - 60 μs Level, resp. a pulse period)/Digits
Trigger Control Gate	24 VDC
Control Interface	TTL / RS232 (HMI) / Ethernet / Databus
6. Mechanical Specifications
Dimension	590 x 482 x 132 [mm] (L×W×H)
Weight	40kgs

Applications&Samples

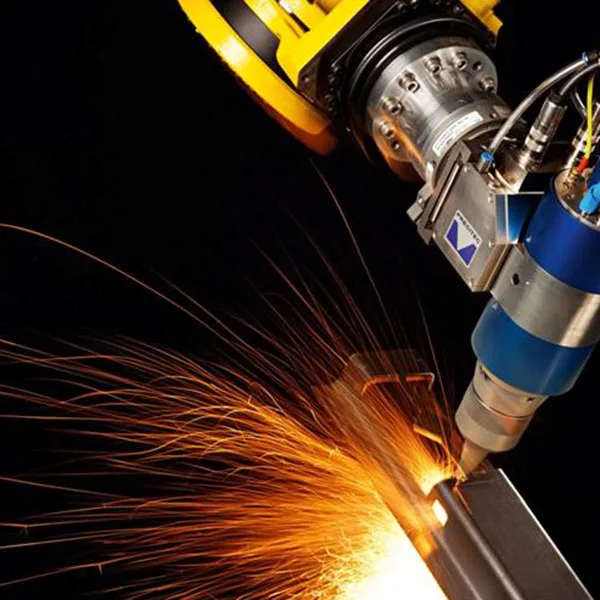

Applications:

Cutting, Drilling, Marking & Deep Engraving, Metal Welding, Brazing, Surface Cleaning & Texture, Heat Treatment, Additive
Manufacturing, Cladding.....

Laser Cutting Laser Printing Laser Welding Laser Driling

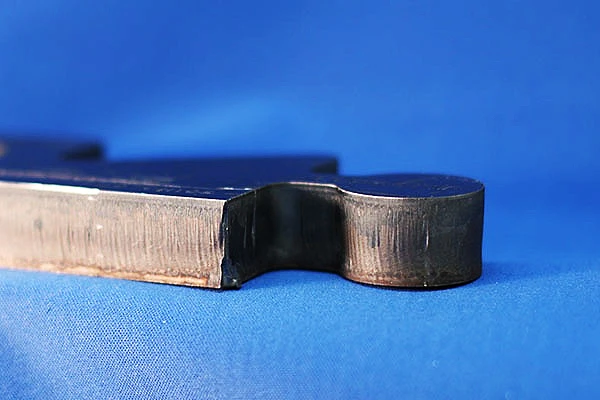

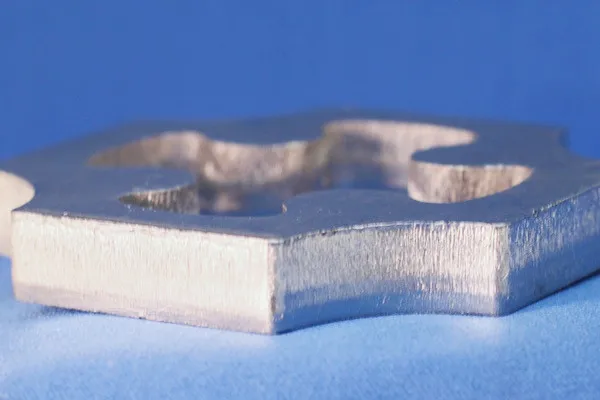

Samples:

Packing & Delivery

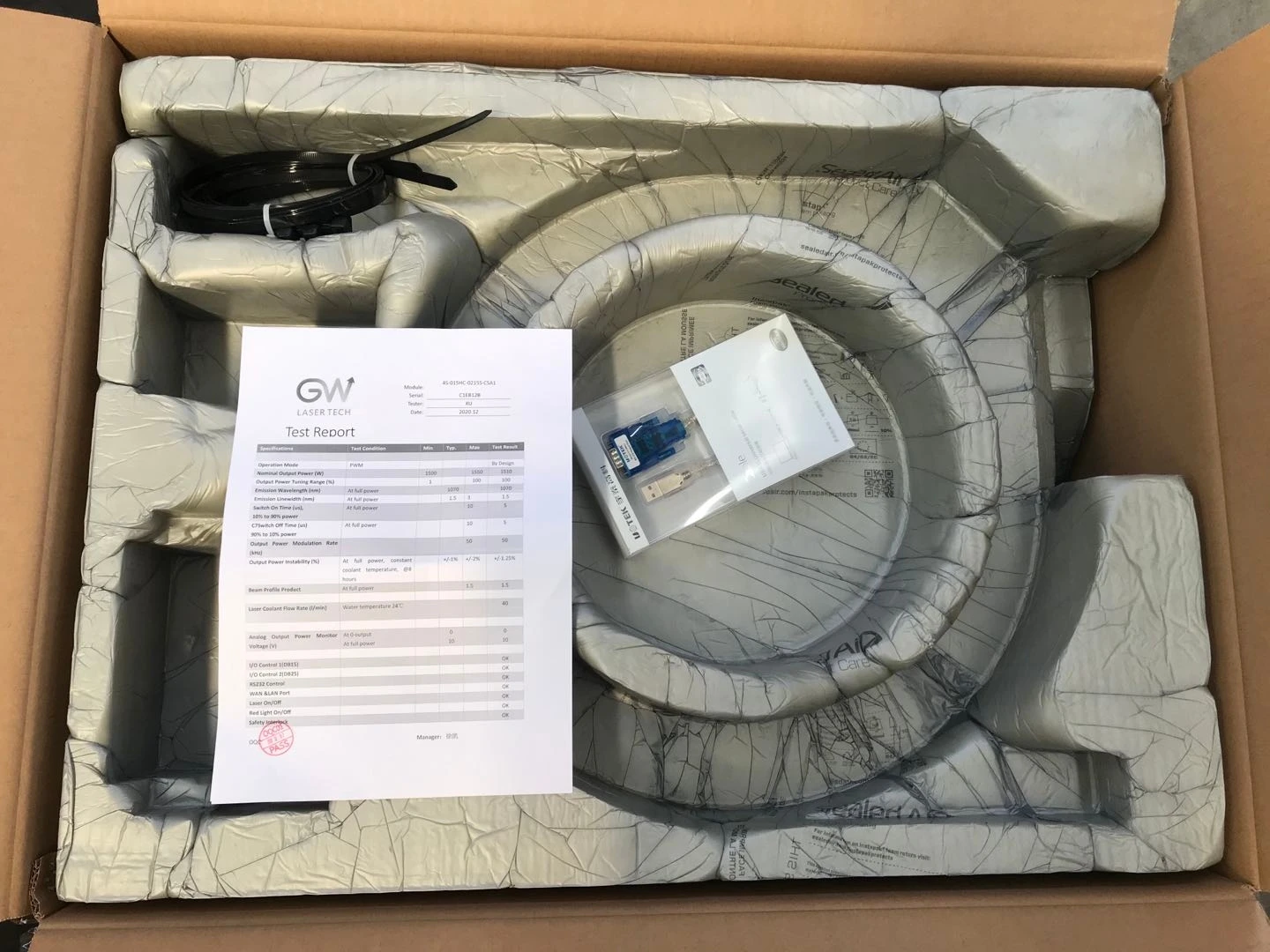

Packing:

Shipping:

Our Service

Pre-Sales Service: 1.Professional sales team for 24-hours online Inquiry and consulting service 2.Sample testing service After Sales Service: 1.After Sales
We provide 1-3 year’s guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.
2.Quality Control
Skilled and strict Quality Inspection Team is available during the material purchasingand production procedure.
All finished machine we delivered are 100% strictly tested by our QC departmentand engineering department.
We will provide detailed Machine pictures and Test videos to customers before delivery.
3.OEM Service
Customized and OEM orders are welcome due to our aboundant experiences.All the OEM services are free, customer only need to provide us with your logodrawing. function requirements, colors etc.
4.Privacy
None of your personally identifiable information ( such as your name, address, emailaddress, bank info, etc ) will be disclosedor shared with any third partes.
Contact All of your inquiries or questions or helps will be answered within 24 hours,even in holiday. Also, please feel free to
call us if you have any emergency questions.
5.Payment terms
Alibaba Trade Assurance ( New,safe and popular payment terms)
30% T/T paid in advance as deposit, the balance paid before shipment.
lrevocable LC at sight.
6.Documents Support
Certificate support: CE,ISO,CO,FORM A,FORM E,FORM F ,FTA,CCPIT Certificate and so on.
All Documents for clearance customs support : Contract ,Packing list,CommercialInvoice,Export declaration and so on.

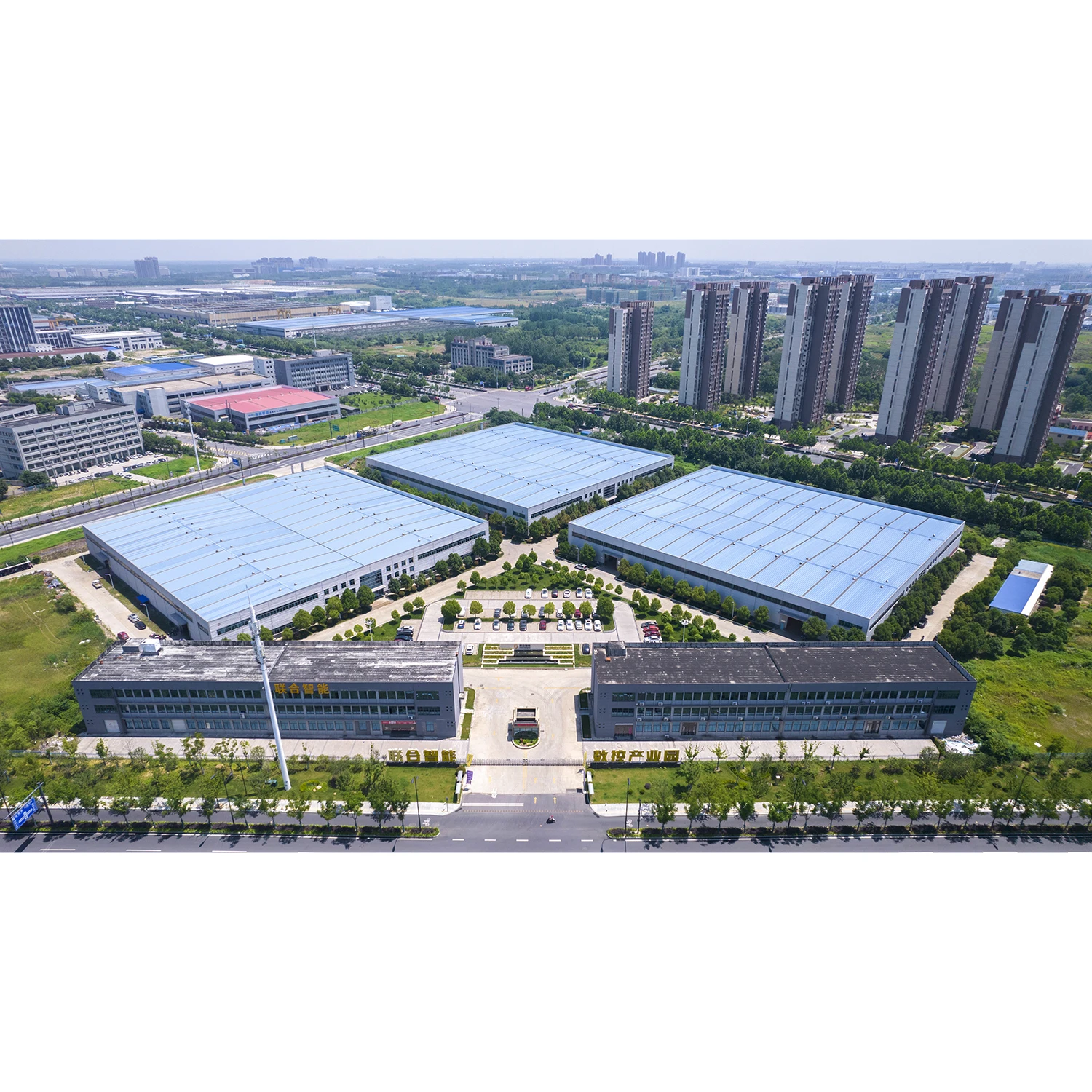

Company Profile

Our company TONGXING Technology Development Co.,Ltd established in 1992,lies in HEFEI --One of Chinese scientific and technology cities.It has been working on researching and manufacturing CNC machinery in field of woodworking stone engraving,metal processing,glass cutting and advertising etc. over 20 years.

The main products: Heavy moving column CNC machining center,Heavy static column CNC machining center,High accuracy metal cutting machine,High precision fiber laser machine,Vanguard series CNC engraver, Multistage CNC machine center,SUDA high accuracy CNC engraver, SUDA laser cutting machine,plasma cutting machine,totally 23 series ,more than 100 models.
Our sales worknet not only covers all Chinese provinces and municipalities,including HongKong,Taiwan&Macao,also the products are exported to more than 120 countries and regions such as Europe,America,Middle-east,South-east Asiaetc.

Our Exbitions And Customers Visit

FAQ

Q1:Are you Trading Company or Manufacture?
A1:We are the laser machines manufacturer with 3 factories in Anhui Prov. with more than 20 years production experience.

Q2:Do you have an inspection procedure for the product?
A2:Yes,We have a strict inspection of product quality and packing.
each machine has been inspected through following steps:

1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and electrical performing before shipping;

2.100% sample testing, that is, each machine has been tested by the processed sample before shipping;

Q3:Can you accept small quantity?
A3:Yes,small quantity is accepted and quick delivery.

Q4: How to operate this machine after we bought from you?
A4:We will provide manual and basic operate video for you. Also we are 24 hours online, You can contact us any time by chat tools.

Q5:How long is your delivery time?
A5:It is 3-5 days generally if we have instock, or 10-20 days when you customize the product.
