Product Description

Horizontal Type: (diameter: 300 to 2400mm; length:1000 to 5000mm)

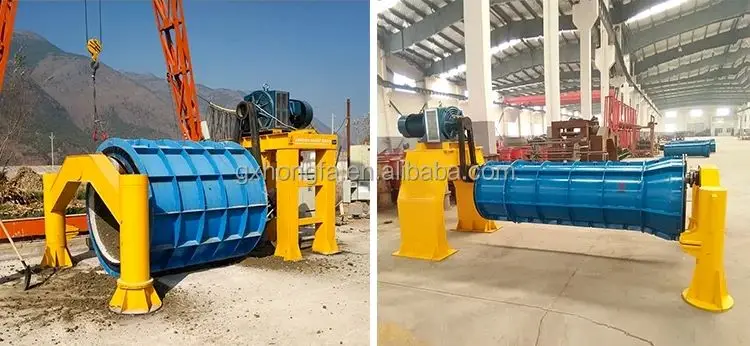

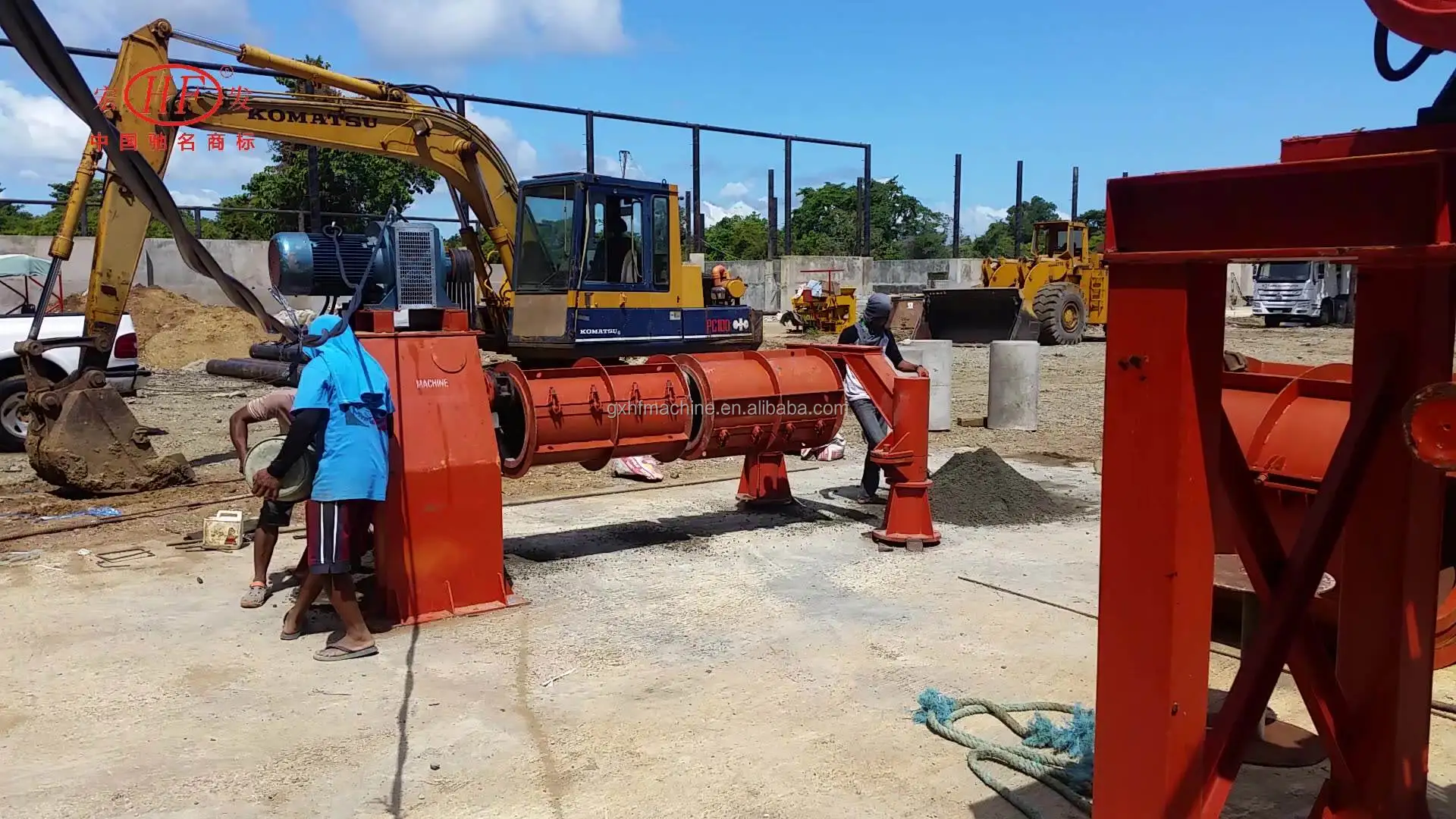

- Roller hanging type concrete pipe machine is kind of machine to produce concrete pipes and pre-stress concrete pipe. It can make pipes with diameter from 300-2500mm and with length from 1000-5000mm.

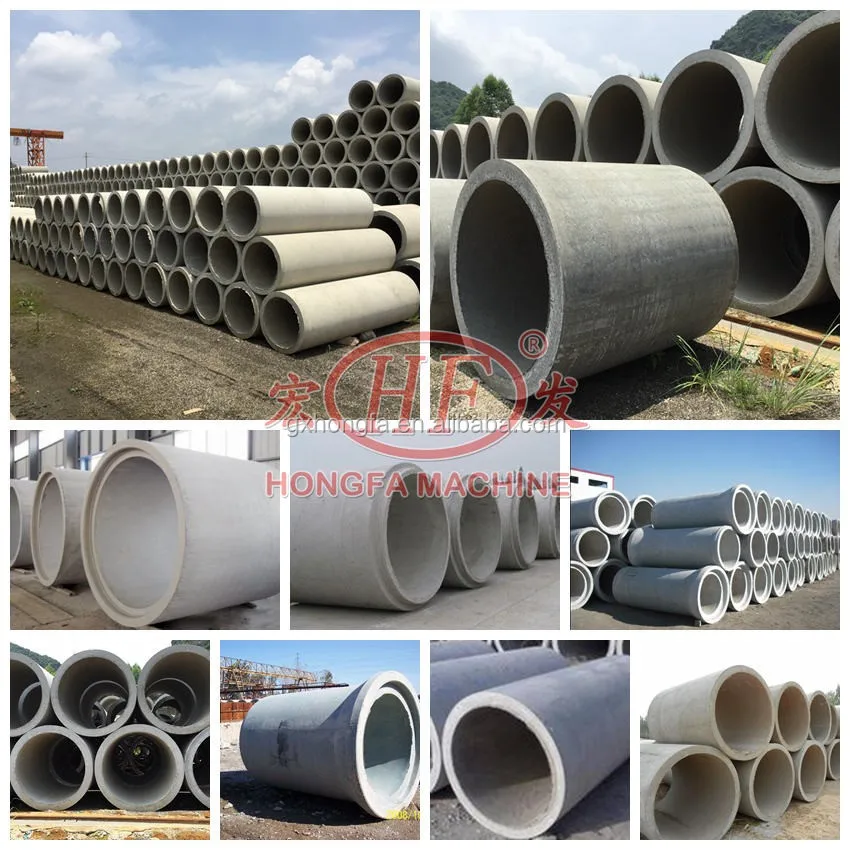

- We can design many kinds of pipe joint, including flush joint(flat mouth type), groove joint, socket and spigot joint(socket and plug mouth type) ect. And all the concrete pipes are widely used in administrate drainage, agricultural field irrigation, rood culvert and deep water well.

Working Principle

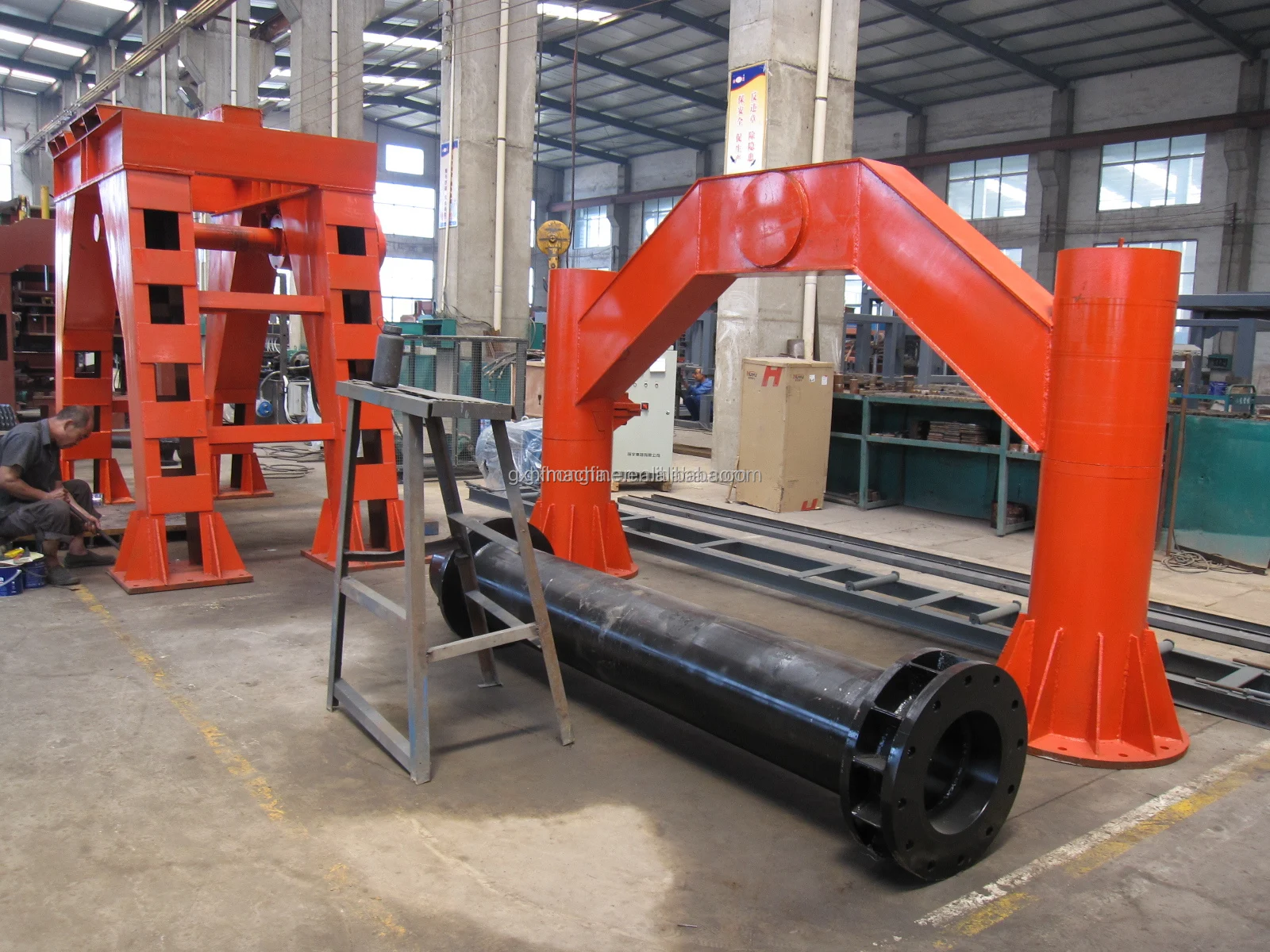

This machine uses the Roller to support the pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller, the concrete between the mould and the roller will be compacted solid to form a pipe.

Character

(1) Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with high speed roller rotation.
(2) This Concrete Pipe machine uses the dry cast material, there will no waste cement mud, then it won't pollute the environment.
(3) During the production, the noise is low, it is about 80-90 DB.
(4) The Concrete Pipes are with high pressure load and with high production efficiency.

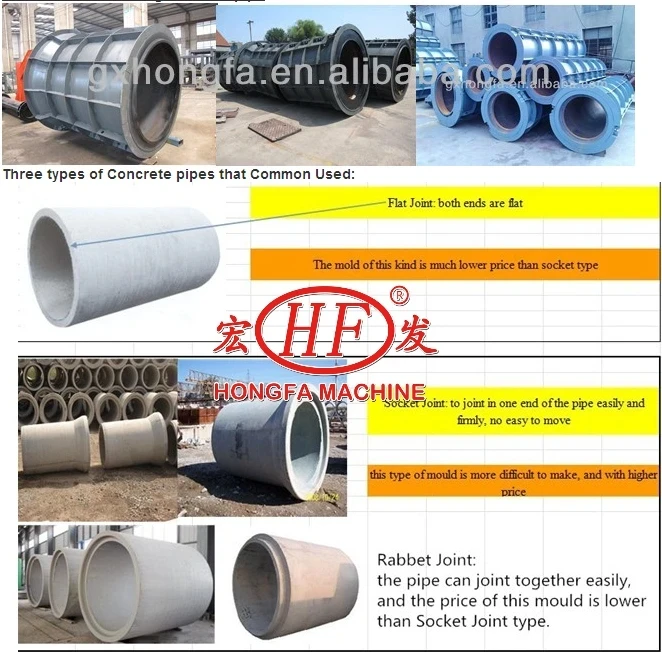

3 Types Of Pipe Joint

1. The flat joint is the earliest interface form of cement pipe. It is difficult to manufacture, high in production efficiency,andlow in manufacturing cost.
2. The rabbet joint has the advantages of the socket type, and is more significant than the socket type, but it also has a remarkable feature that the socket type does not have, that is, it is suitable for large-diameter pipes and sockets.

3. The socket joint interface adopts rubber ring to seal the water and it is a flexible connection.The cement pipe of this interface has good seismic performance.

Product Specification

Type	HF800*2000	HF1200*2000	HF1650*2000	HF2000*2000
Pipe Diameter (mm)	300-800	800-1200	1200-1650	1650-2000
Roller Diameter (mm)	127	216	273	325
Pipe Length (mm)	2000	2000	2000	2000
Motor Model	YCT225-4B	YCT1250-4B	YCT355-4A	YCT355-4B
Motor Power (KW)	15	18.5	55	75
Rolling Speed (r/m)	62-618	62-618	72-727	72-727
Machine Dimension (mm)	4100x2350x1600	4100x2350x1850	4550x3500x2500	4550x3500x290

The pipe thickness in Chinese National Standard is:

Diameter :300,400,600,800,1000,1200,1500,2000mm

Corresponding thickness:30,40,60,80,100,120,150,200mm

Please confirm the thickness
otherwise will be subject to the Chinese National Standard.

Packaging & Shipping

Packing&Shipping

Packing: The pipe machine will be well prepared and proper packaged with Plastic Film Wrapping. All process are accordance with international standard, which ensure the machines and equipment in the container are seaworthy.
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer of board making machinery.

1.We have successfully exported and established more than 100 sets of Pipe machine in domestic and overseas. So we
have many type of business model in other countries.
2.Our company has set up office in Vietnam, Indonesia, South Africa and sale service station in nanning Guangxi province and will
ensure the matericals rapid and timely service.

Our Services

Pre-sales Service
* Inquiry and consulting support.
* Solution support.
* View our Factory.
After-sales Service
* Training how to install the machine, training how to use the machine, English instructions available.
* Engineers available to service machinery overseas.

From the day our products sold, we will promise to do as follows:
(1) Provide corresponding technical solutions and site layout;
(2) Provide guidance equipment installation and operation for users.
(3) For each equipment ,we will train mainly operating personnel 5-10.
(4)12 months guarantee, and provide lifelong technical support.
(5) Feedback within 24 hours after consulting.
(6) Build customers using and maintaining files as soon as dispatch machines;
(7) After finish debugging of equipment, users inspect and sign the acceptance certificate according to the situation of site service.

FAQ

Q: Are you manufacturer or trading company?

A: We are Direct factory, not agent or trading company, the quality and after-sale services is guaranteed.

Q: How long is the warranty of your equipment?

A: 1year

Q: Can this machine make my panel or other size panel?

A: We would design and do the mould according to customer's Drawing or as ours.

Q: When do you delivery the goods?

A: Normally 30 days after receipt of deposit and moulds confirmation from Buyer.

Q: What about the payment?

A: 30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).

Q: What does the total price include?

A: After some simple communication, we will make the plan according to you target on Capacity and budget. Then we will send the accurrate quotation for you shortly.

Q: Would you mind provide the video?

A:The video is available to send to you, please contact me.
