Double Filters Ceiling Mounted ERV Central Ventilation System

(13 Lượt)

Công ty TNHH Công nghệ thanh lọc Ningbo Yinyu

Nhà sản xuất, chế tạo • 2 năm

Giá

13,250,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Double Filters Ceiling Mounted ERV Central Ventilation System

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Double Filters Ceiling Mounted ERV Central Ventilation System

Nhà cung cấp

Công ty TNHH Công nghệ thanh lọc Ningbo Yinyu

Thông tin nha cung cấp của bạn

Công ty TNHH Công nghệ thanh lọc Ningbo Yinyu

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Heat Recovery Air Solution Wall Mount Fresh Air ERV Ventilation Systems HVAC system

Product Description

Model			XHBQ-D2TH	XHBQ-D3TH	XHBQ-D4TH	XHBQ-D6TH	XHBQ-D8TH	XHBQ-D10TH	XHBQ-D13TH
Airflow	(m3/h)	L	150	250	350	500	700	900	1000
		M	200	300	400	600	800	1000	1300
		H	200	300	400	600	800	1000	1300
External pressure	(Pa)	L	60	75	80	89	92	80	75
		M	70	82	85	92	96	85	85
		H	75	85	88	97	100	86	90
Enthalpy Eff.(%)	Cooling	L	60	62	62	63	57	60	58
		M	55	57	57	59	55	58	56
		H	55	57	57	59	5	58	56
	Heating	L	63	65	65	67	63	64	62
		M	59	61	60	61	57	62	59
		H	59	61	60	61	57	62	59
Temp.Eff.	%	L	75	73	74	76	74	76	76
		M	70	68	69	70	68	70	70
		H	70	68	69	70	68	70	70
Noice	dB(A)	L	22	23	25	25	32	32	37
		M	25	27	29	31	37	36	40
		H	27	30	32	35	39	40	42
Voltage (V)			220	220	220	220	220	220	220
Current (A)			0.5	0.56	0.72	0.96	1.7	2.1	3.4
Imput Power (W)			105	117	150	200	355	440	710
Net Weight (KG)			23	25	31	36	60	70	79

Features ofXHBQ-TH series energy heat recovery ventilator

- Airflow various from 150-1300m3/h

- Sensible and latent heat recovery

- Quiet operation

- Suspended installation

- Bypass-function

- Optional HDK-08 standard controller and HDK-10 intelligent controller

Installation ofXHBQ-TH series energy heat recovery ventilator

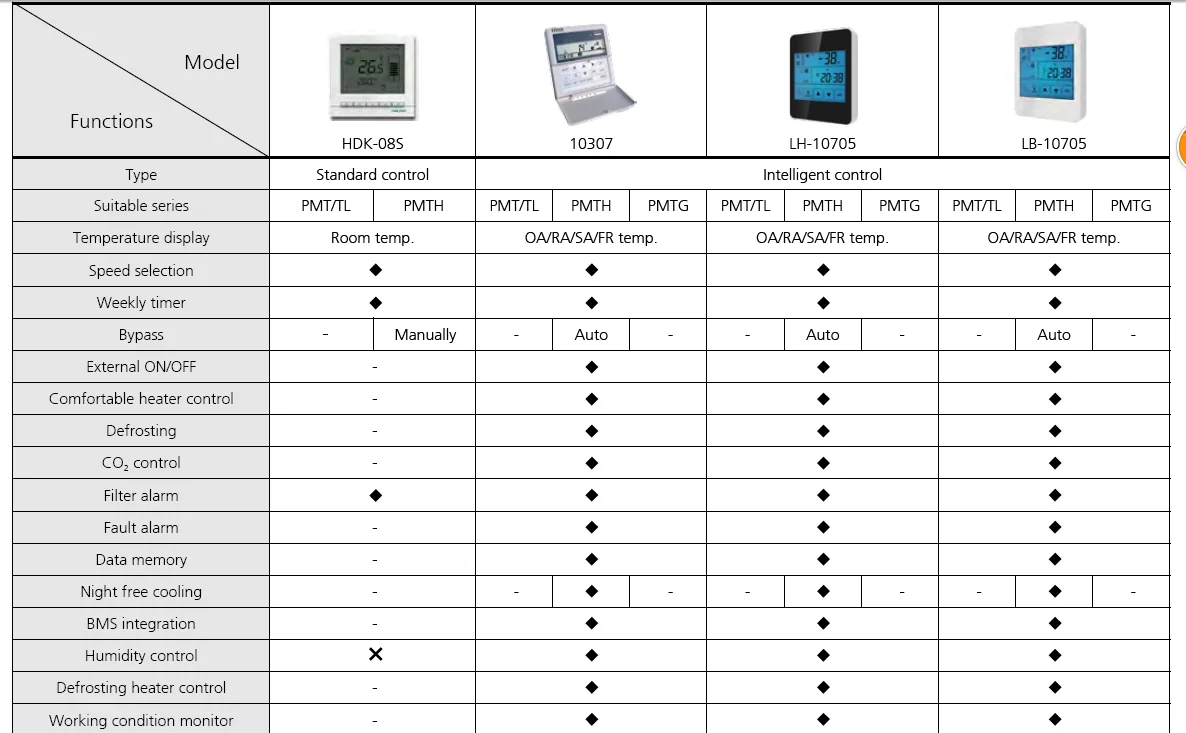

Control systemXHBQ-TH series energy heat recovery ventilator

HDK-08 standard controller

- 3 speeds

-Ventilation mode and energy recovery mode switch

-Temperature value revision

HDK-10 intelligent controller

- 3 speeds

- Temperature display

- Auto-bypass

- Weekly timer

- Auto restart

- Auto defrosting

- Optional CO2 sensor connection

- BMS system

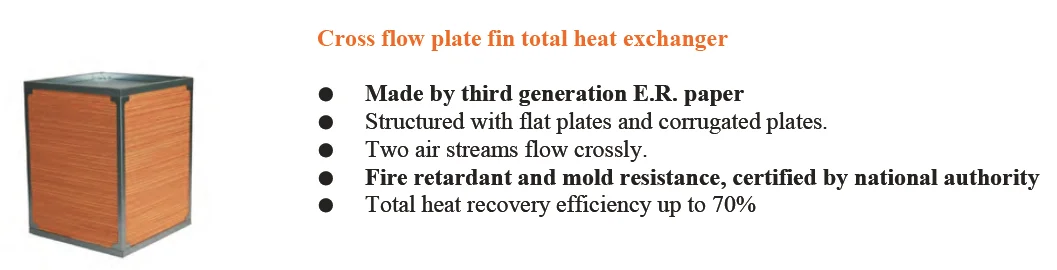

Heat exchanger of XHBQ-TH series heat recovery ventilator

Heat exchanger of Suspended installation 80% efficiency corssflow heat recovery ventilatoris made of ER paper which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance. The clearance between the fibers is very small, so only the moisture molecules of small diameter can go through, the odor molecules of larger diameter are unable to pass through it. By this means, the temperature and humidity can be recovered smoothly, and prevent the pollutants infiltrating to the fresh air.

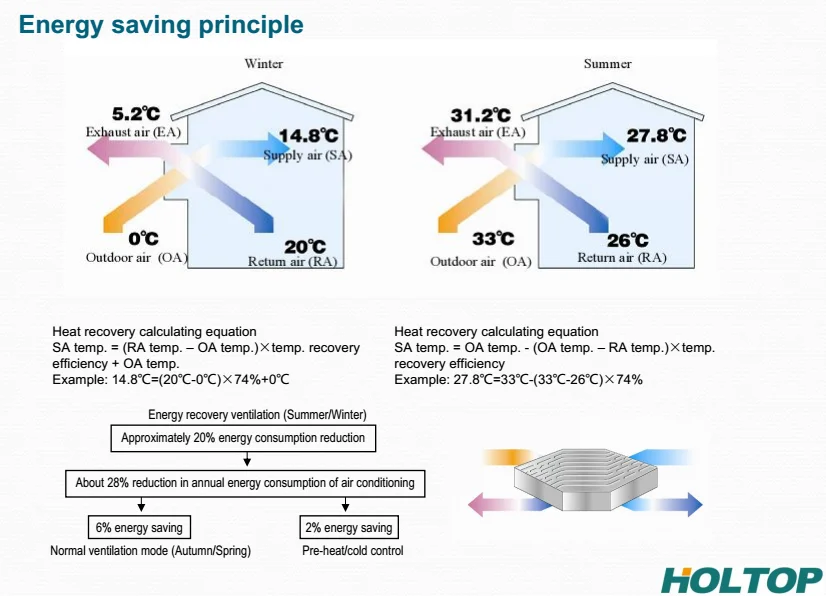

Working principle ofXHBQ-TH series heat recovery ventilator

Holtop heat & energy recovery ventilator can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only smooth away the problem of indoor pollution, but also saving energy.

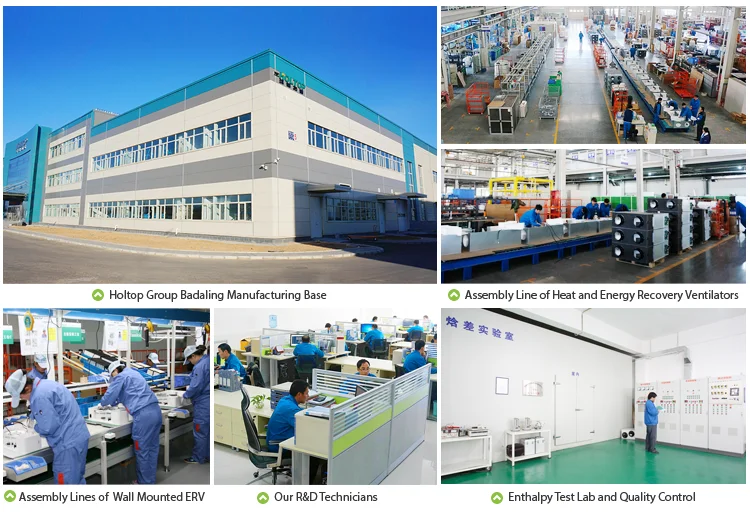

Holtop Factory

Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to theresearch and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002.The main products inclusesenergy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop also offer turnkey hvac solutions for different industry.

Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain,covering area of 30,000 square meters. Themanufacturing baseis inBeijing's Badaling Economic Development Zone,covering an area of 60 acres,withan annual production capacity of 200,000 unitsof air heat recoveryequipments.

Holtop builds a sound certificate system ofISO9001, ISO14001 and OHSAS18001as well as product certification systems. Moreover, it hasalaboratory certified by national authority.As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possessesdozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as ZhongguancunHigh-Tech Enterprise.

Holtop partner

Holtop cooperate with so many world famous brands, offering OEM /ODM service.

Holtop certificate

Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, CB, RCM, RoHs, FCC, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
