HFB5200A-10-15D Automatic Concrete BlockCement Building Paving Brick Making Machine & Production Line

Brief intruduction
A.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.
B.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.
C.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,therefore ,different materials can be able to produce the high quality products.
D.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.

Control system
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need aprofessional person but only need asimple trained one to the operator.

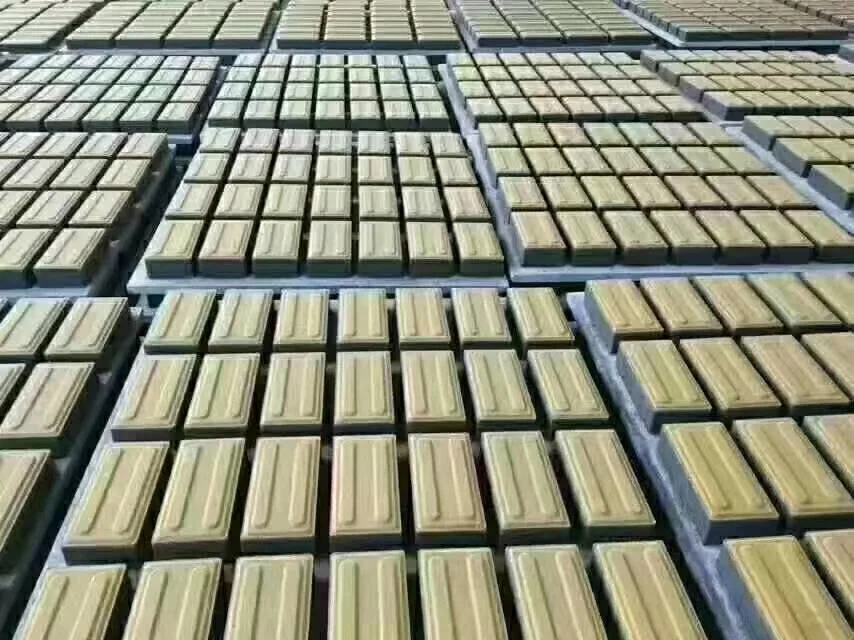

Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.

Productivity(can change moulds):

Item	Size(mm)	Molding cycle	Pcs/Mold	Pcs/hour	Pcs/8hours
Hollow block	400200200	15-20s	10	1800~2400pcs	14400-19200pcs
Solid brick	24011553	15-17s	56	11850-13440	94900-107500
Paving brick	22011050	20-25s	35	5040-6300	40300-50400

Note:The forming cycle above capacity we counted by average15-25 seconds per pallet.

Technical Parameter:

Overall Dimension	7500×2500×3020(mm)
Rated pressure	21MPa
Main vibration form	Platform vibration
Acceleration of vibration	15-20g
Cycle Time	15-20seconds
Vibrating Frequency	2800-4500 rolls/minute
Vibration	100KN
Motors Power	53KW
Pallet Size	1220*900(mm)
Weight	12T

The raw materials:

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.

Applied Products:

Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

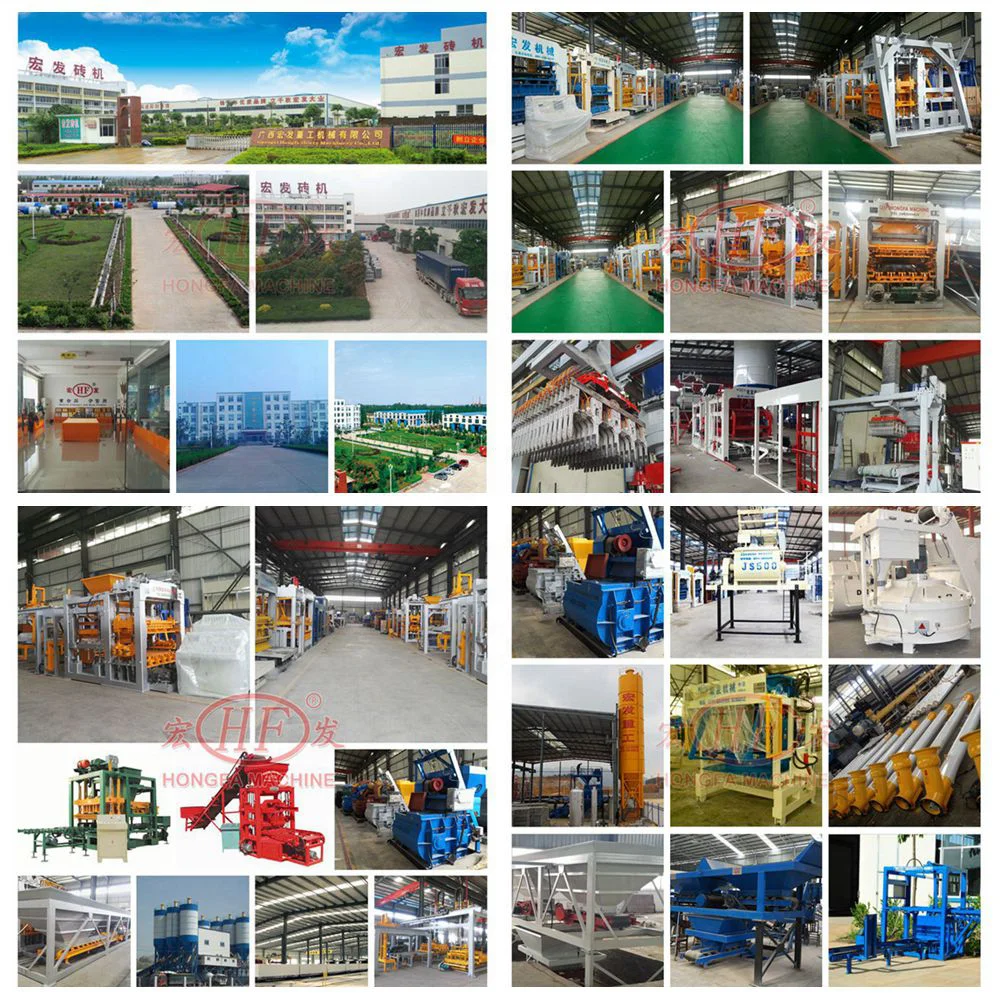

Hongfa Group Established in 1990.
A leader developer& Manufacturer of Construction Material Machinery.
Main business Range &Products:
Lightweight Panel Production Line, AAC Block Production Line, Full Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line, Concrete Pipe Machine, Concrete Tile Machine, Concrete pipe machine, Bidirectional Hydraulic Brick Maker, Mining Machinery,Concrete Batching plant,Stereo Parking Equipment,etc.

Main Products :

concrete block machine,EPS Light weight wall panel machine,AAC block production line, concrete batching plant,Artificial quartz stone plate production line,Culcium Silicate Board Production Line, wall panel making machine, concrete terrazzo tile machine and concrete pipe machine,EPS insulation concrete block production line. etc.

Automatic Block Making:
QT12-15DQT12-15QT10-15DQT10-15QT9-15 QT8-15D
QT8-15BQT6-15DQT6-15CQT6-15BQT4-15DQT4-15C
QT4-15BQT4-20CQTJ4-25
Semi-automatic:
QTJ4-35B2QTJ4-40B2
Semi-automatic egg-laying machine:
QTY4-30QMJ4-45QTJ2-45JMQ-6A
Color Paver Color tile forming machine:
QT3-20SMY8-150
HF-800 pipe-making machineHF-2000 pipe-making machine
Concrete Mixing Plant:
HZS25HZS35HZS50HZS60HZS series
AAC Block production line :50000~500000m³/Year

Brief intruductionofautomaticconcreteblockmakingmachine:
a) full automatic brick plant is acompact oil hydraulic machine according to the standard of international. Many parts from abroad which ensure the quality of the machine and take fro the power.
b) The vibration system contains platform vibration and mould vibration so the products are very close grained and produced quickly.
c) The novel feeding system gives material exactly and average and assures the products having ahigh density.
Control system
a) PLC intelligent control. human-computer interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need aprofessional person but only need asimple trainning to the operator.
b) Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding), through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks, hollow blocks, perforated bricks and standard bricks etc.

Hongfa Strengths
More than 30 years experience. 1500 employee (50+engineers)
2) Total 4factories with 440,000M2 and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish awin-win business relationship.

We will provide the following service for you:
1.Analyzing:Plant size, budget, automatic degree, local condition....analyzing all of your requirements
2. We offer technical support until the workers know how to operate.
3. The operating instruction will go to the customers with the equipment. Technology data and relative files forproduction line
4.We provide lifelong guidance .Visiting clients in regular times.

Exhibitions &cooperations

Hongfa, as atop brand enterprise in China, our products are also exported to Russia, Brazil, Thailand, Indonesia, Vietnam,Angola, Bangladesh, India, Australia, Sudan, etc., 132 countries and regions, deeply welcomed by clients from all around the world.
