Block Making Machine Gas Blocks Making Equipment Gas Block Line

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Block Making Machine Gas Blocks Making Equipment Gas Block Line

Nhà cung cấp

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Thông tin nha cung cấp của bạn

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

Specification

50000m3/year Aac Block Machine Automatic Aac Production Line Aac Block Production Line

Hongfa has 80 production line plant abroad AAC (Autoclaved aerated concrete) block Main raw materials of AAC are siliceous material (sand, fly ash and Silicon tailings) and Calcium materials (lime and cement) mixed with foaming agent (aluminum powder).

Production Process

50000m3/year Aac Block Machine Automatic Aac Production Line Aac Block Production Line

Raw material preparation

1. Dose and match measured raw materials;
2. After distributing, feed raw material into pouring mixer to make slurry.

Reinforcement processing

3.Automatic circulation system for cage assembly frame
4.Mesh cage anti-corrosion drying room
5.Automatic warp and weft rib full wire strip welding machine
6.Cage assembly frame shuttle
7.Mesh cage rigid connection welding machine
8.Net cage anti-corrosion spreader

Pouring pre-uperation

9. Through thoroughly mixing, the slurry is poured to mould; ,
10. After pre-curing under a certain temperature and time, the block would reach a certain hardness and prepare for cutting;

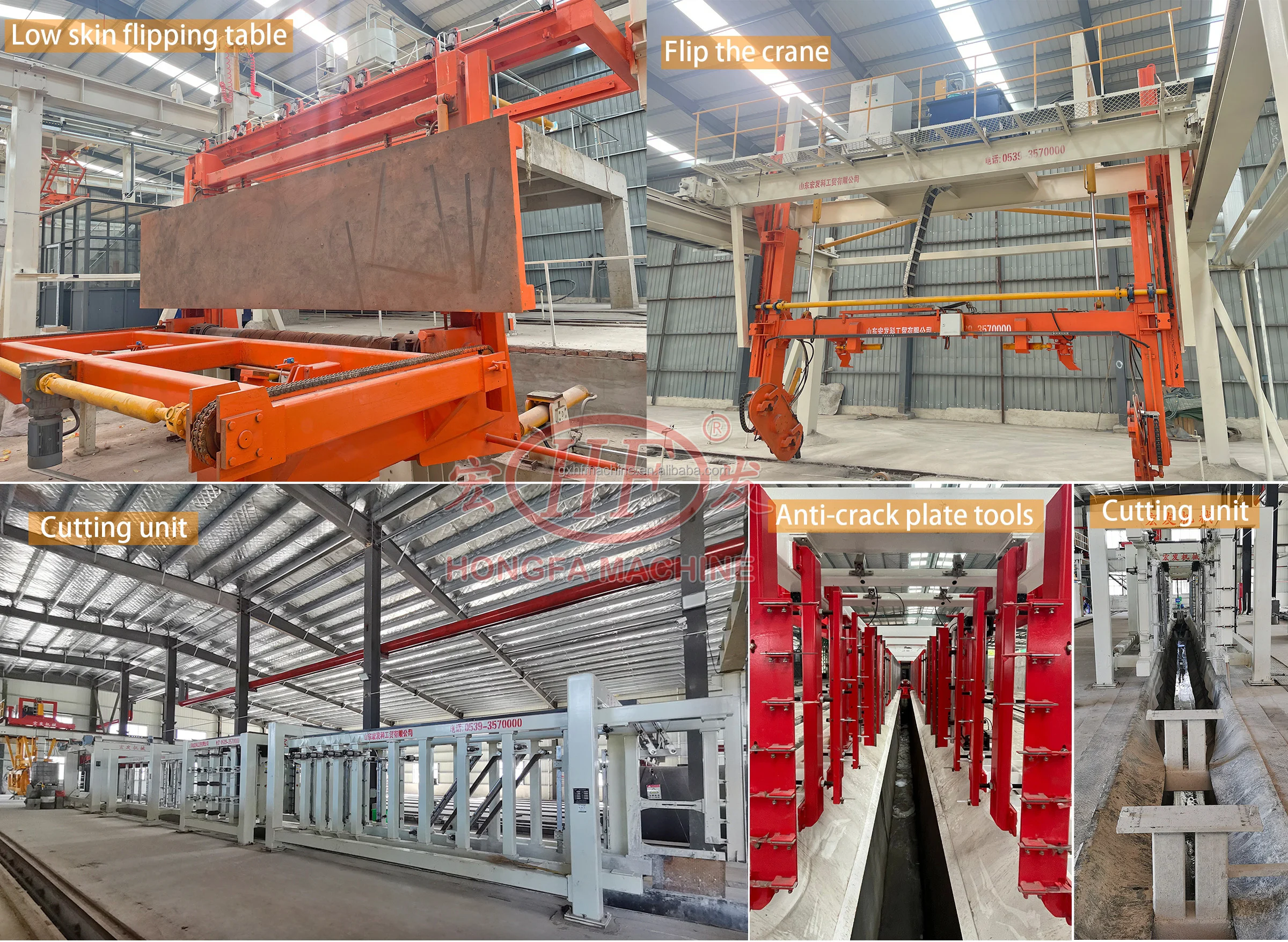

Cutting section

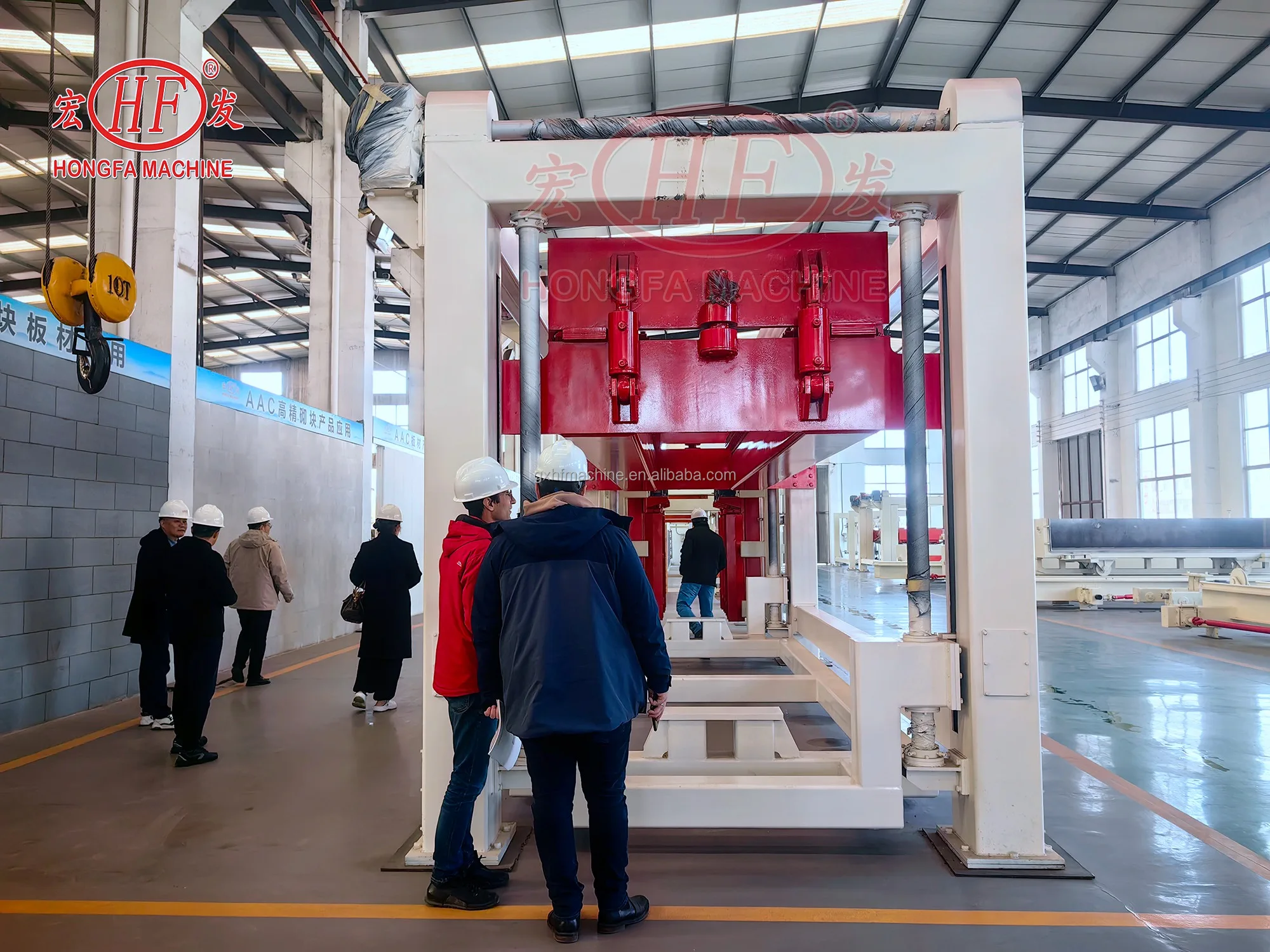

11. Tilting hoister would turn over 90 degrees of mould;
12. Then open the mould and separate it from block. And take the block with side plate to the cutting cart;

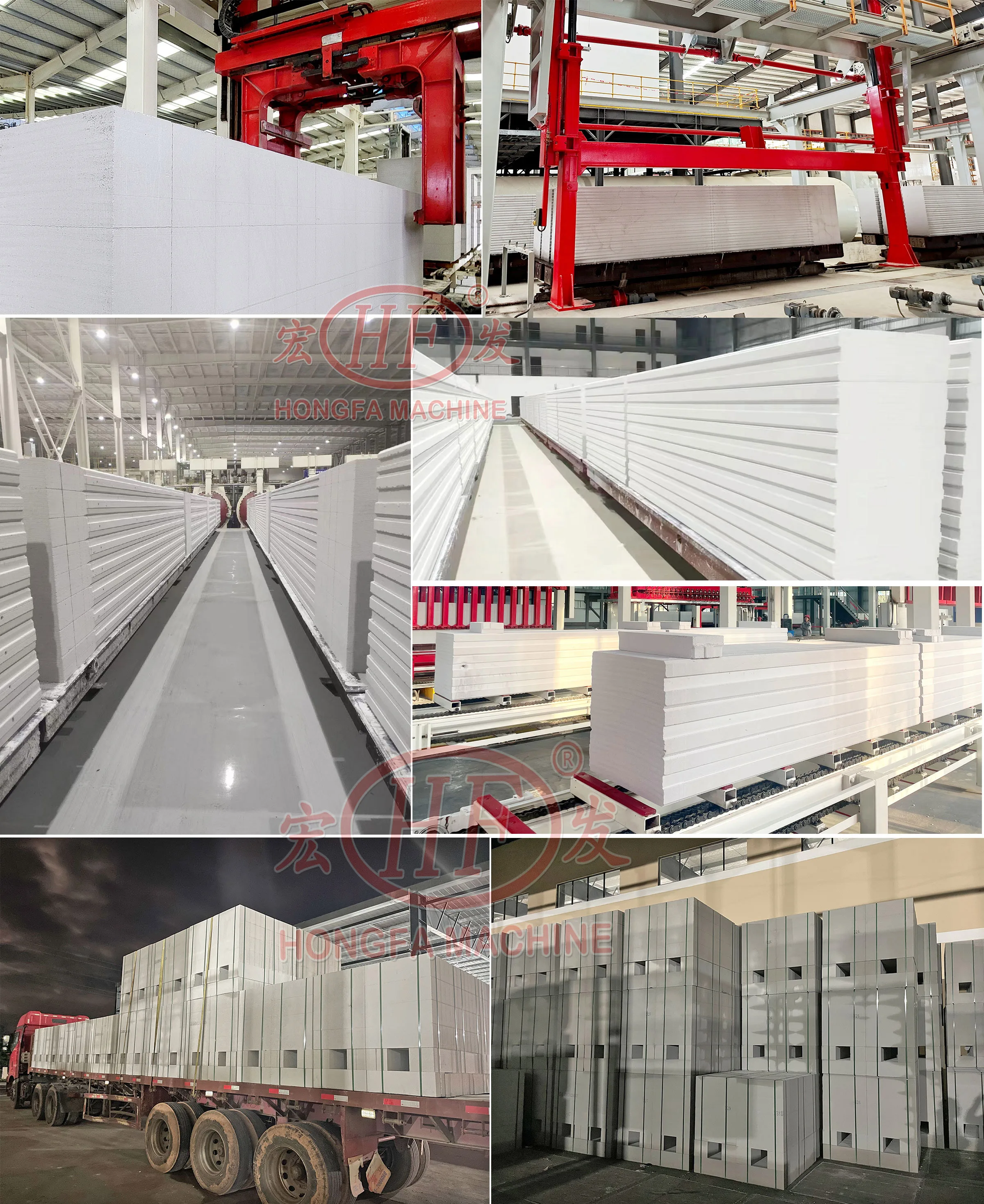

13. The horizontal cutting machine cuts blocks from both sides.
14. Then the vertical cutting;

Marshalling steaming

15. After cutting, the block is hanged to curing carts with side plate by semi-finished product hoister;
16. Grouping the carts and put them into autoclaves;
17. Curing the blocks under certain temperature and pressure;
18. Carry the finished product out of autoclave by the ferry cart

Finished product packaging

19. The finished product hoister take the finished product to finished blocks area;
20. The side plate return back through side plate roller;
21. Side plate would be organized with open mould for the next circle.

Main Equipment For AAC Line

50000m3/year Aac Block Machine Automatic Aac Production Line Aac Block Production Line

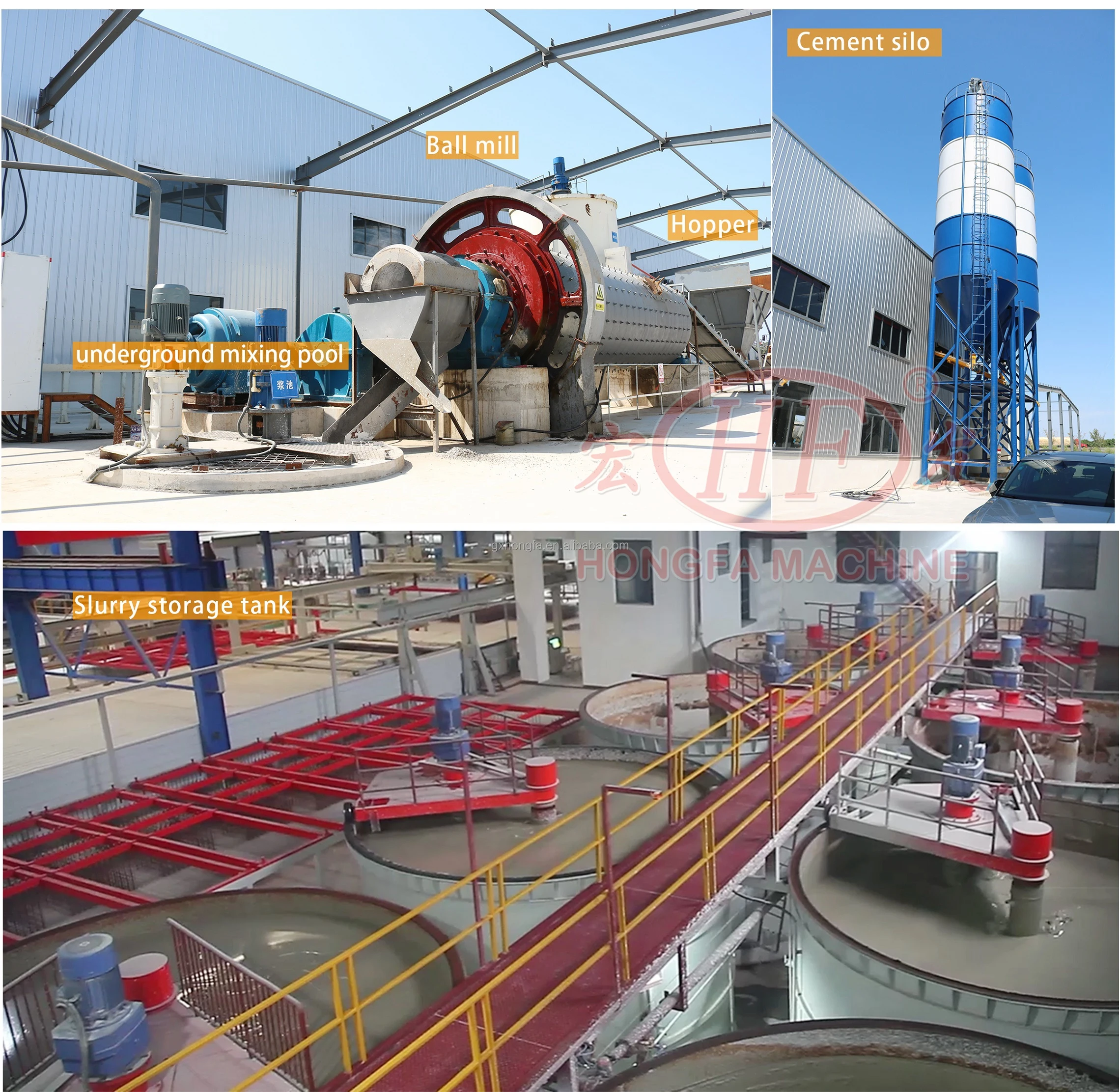

1. Gas Ball Mill: grinding sand to slurry

Type	Diameter	Length	Productivity	Feeeding size	Power(KW)
Φ1200x4500mm	1200mm	4500mm	3-4t/h	≤20mm	55KW
Φ1500x5700mm	1200mm	5700mm	6-8t/h	≤20mm	130KW
Φ1830x7000mm	1830mm	7000mm	8-17t/h	≤20mm	245KW
Φ2200x9000mm	2200mm	9000mm	12-70t/h	≤20mm	380KW

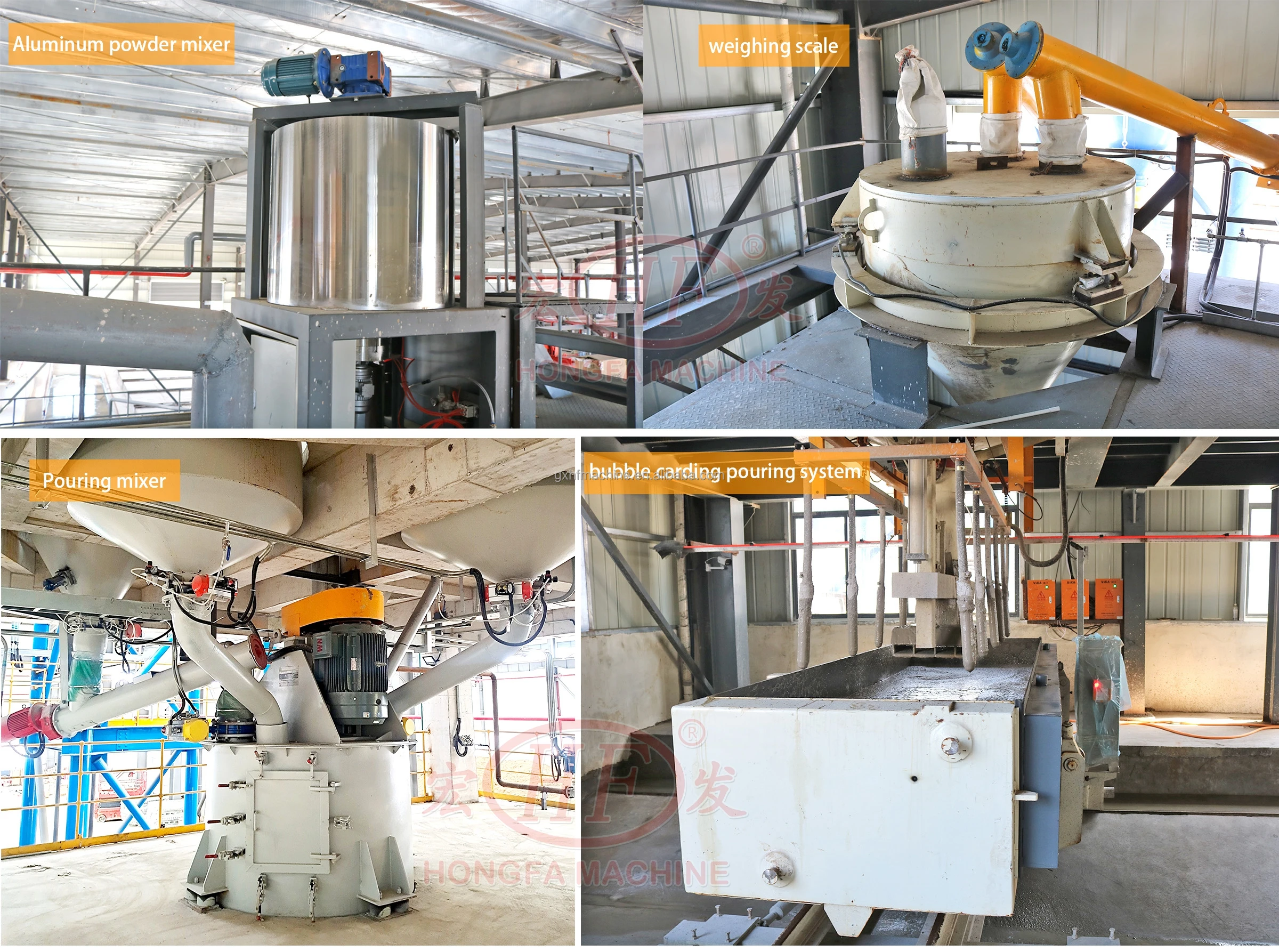

2. Gas Slurry Pouring Mixer:

To mix the standard sand ,slurry,lime,cement and aluminium paste into balance after measuring

Mixer type	Motor power	Mixer drum volume	Blade diameter	Blade speed
Diversion drum type	30kw	V=3.6m3	Φ560mm	560r/min
Diversion drum type	37kw	V=4.5m3	Φ630mm	560r/min

3. Gas block Mould:

storage sand slurry to curing

Size (mm)	Size of body(Peeling-off size)(mm)					Maximum overall size(mm)
Size (mm)		Length	Width	Heigth	Length	Width	Heigth
4200x1200x600	4200	1200	600	4720	1735	1078
4800x1200x600	4800	1200	600	5320	1735	1078
6000x1200x600	6000	1200	600	6550	1750	1085

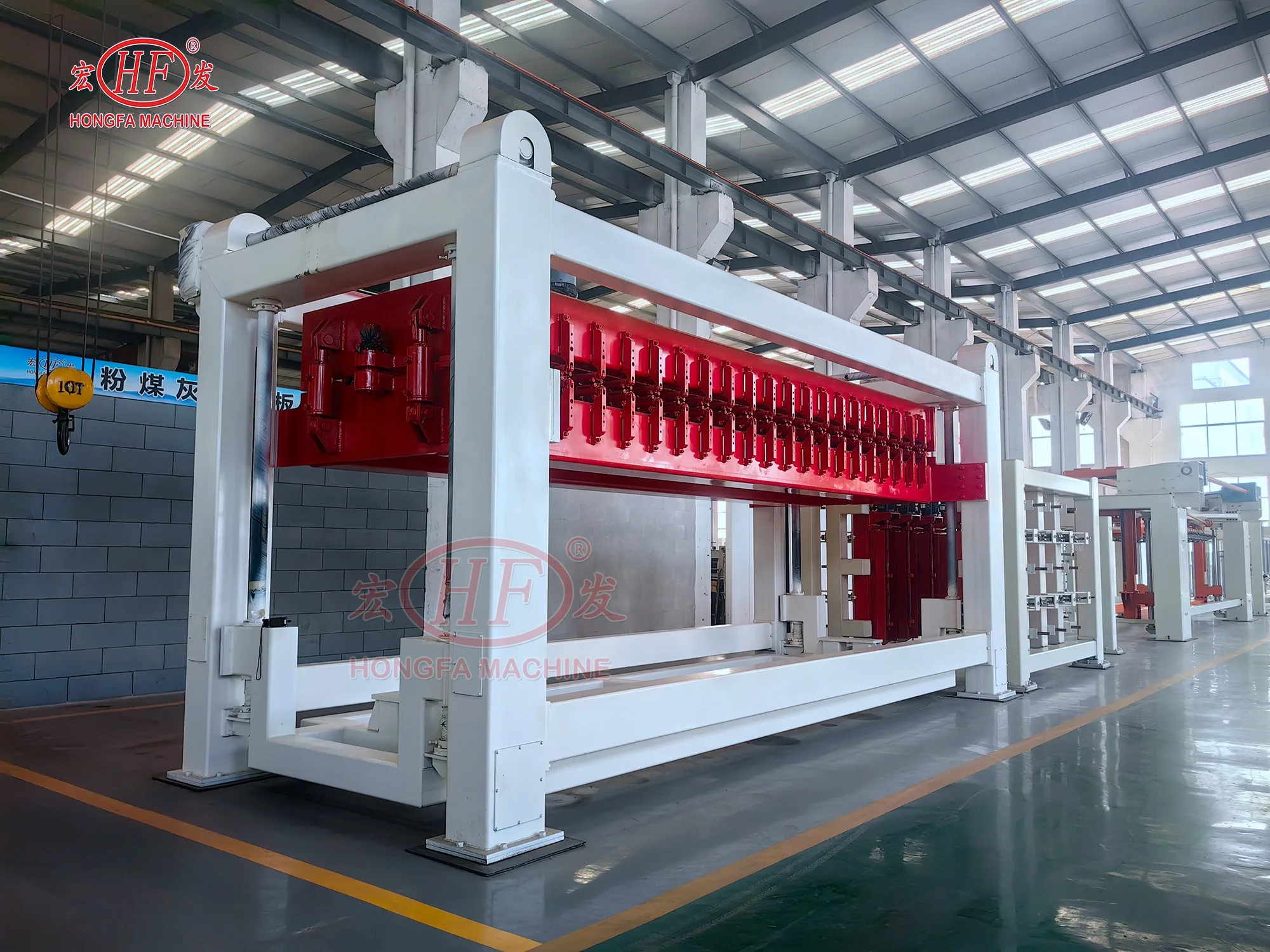

4. Cutting machine

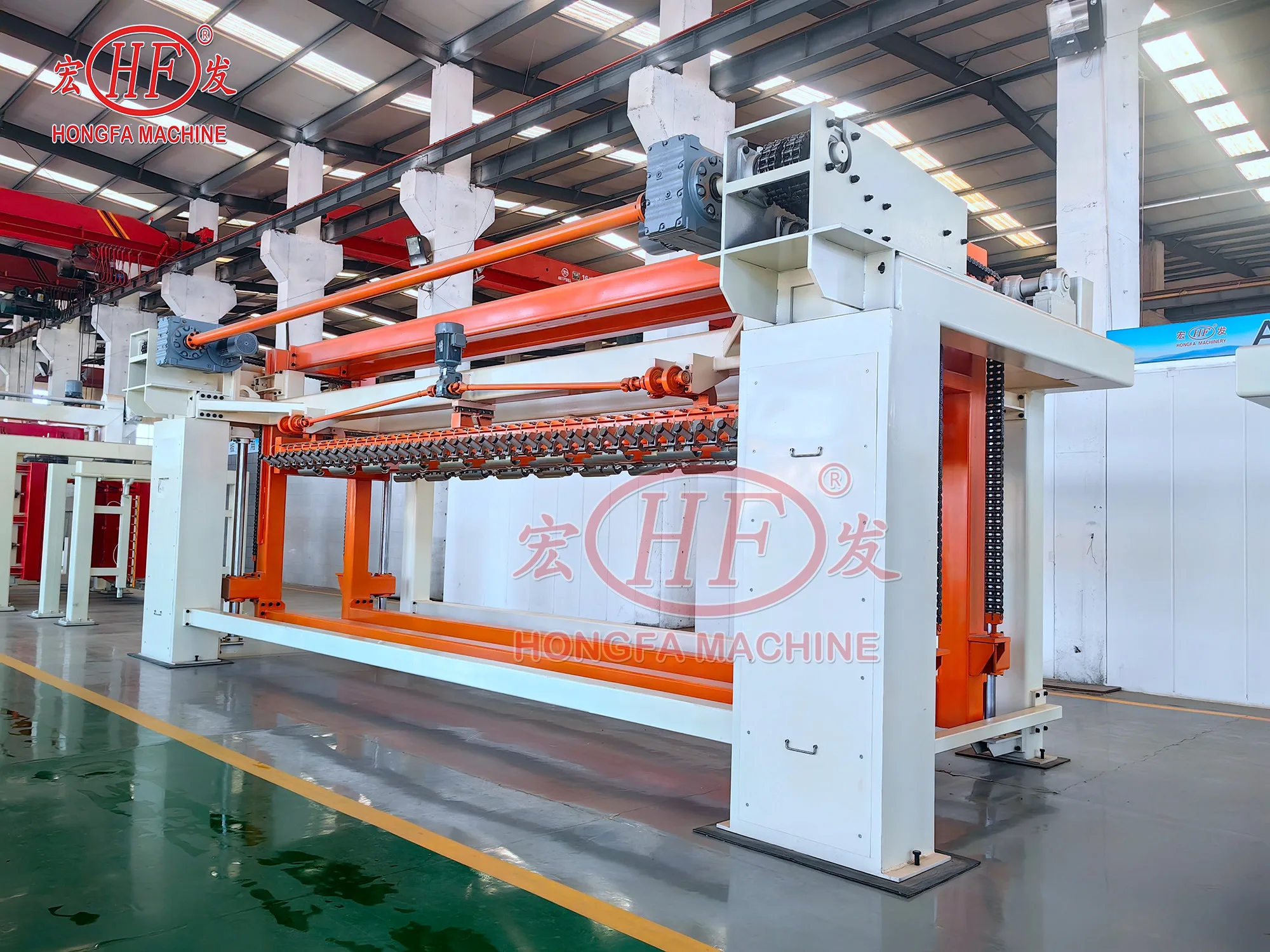

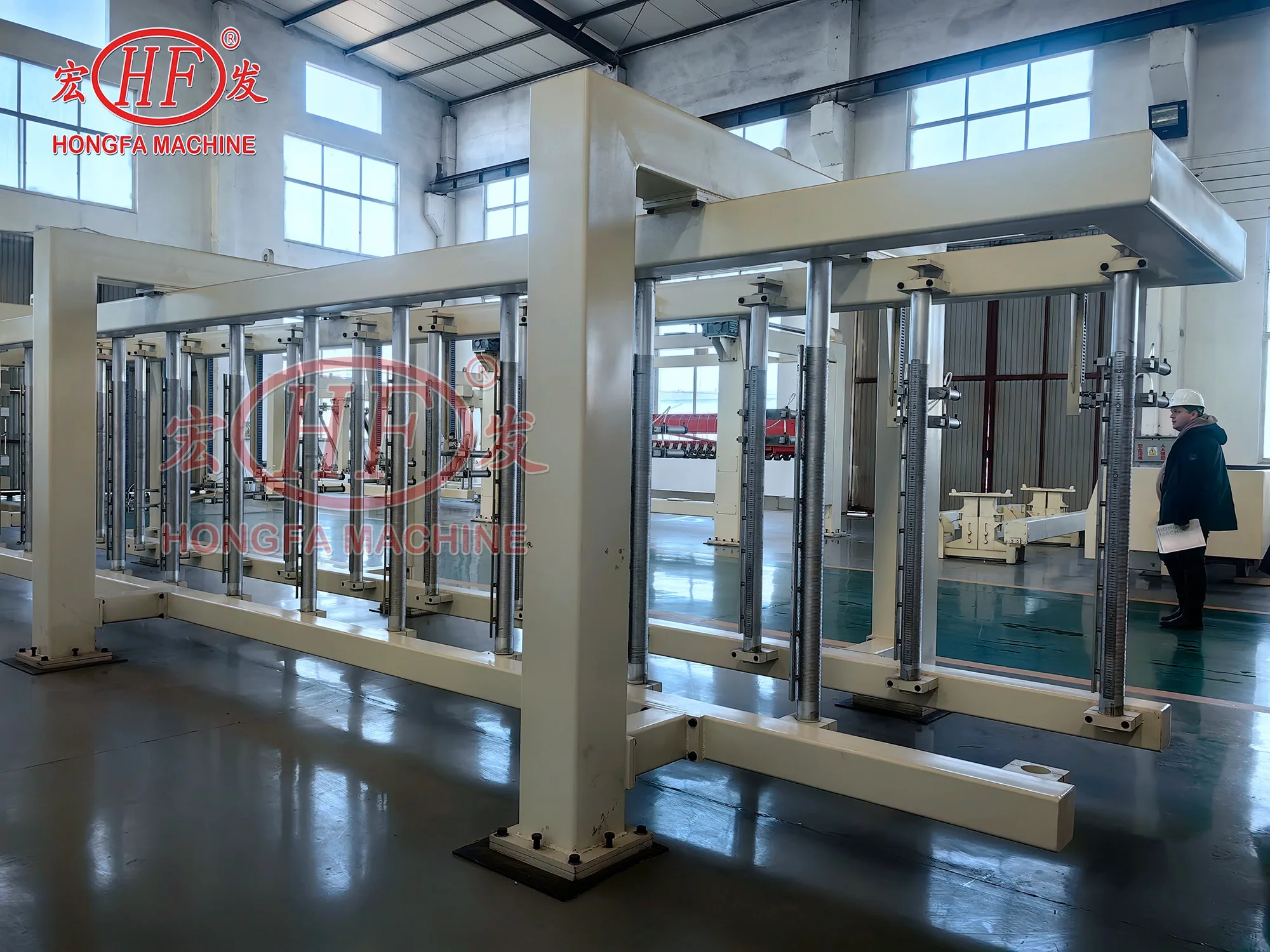

Horizatal cutting machine

Size	Min spacing of wires	Range of swing	Diameter of cutting wire	Overall size
Size	Min spacing of wires	Range of swing	Diameter of cutting wire				Length	Width	Heigth
4.2×1.2×0.6m	10mm	7.5mm	Φ0.6-Φ1.0mm	5200mm	3200mm	3560mm
4.8×1.2×0.6m	10mm	7.5mm	Φ0.6-Φ1.0mm	5900mm	3200mm	3560mm
6.0×1.2×0.6m	10mm	7.5mm	Φ0.6-Φ1.0mm	7200mm	3200mm	3560mm

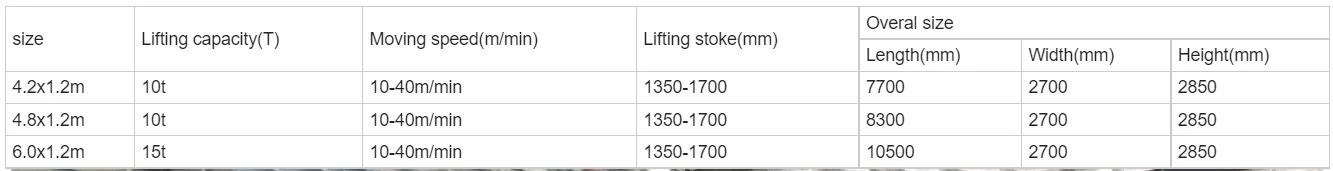

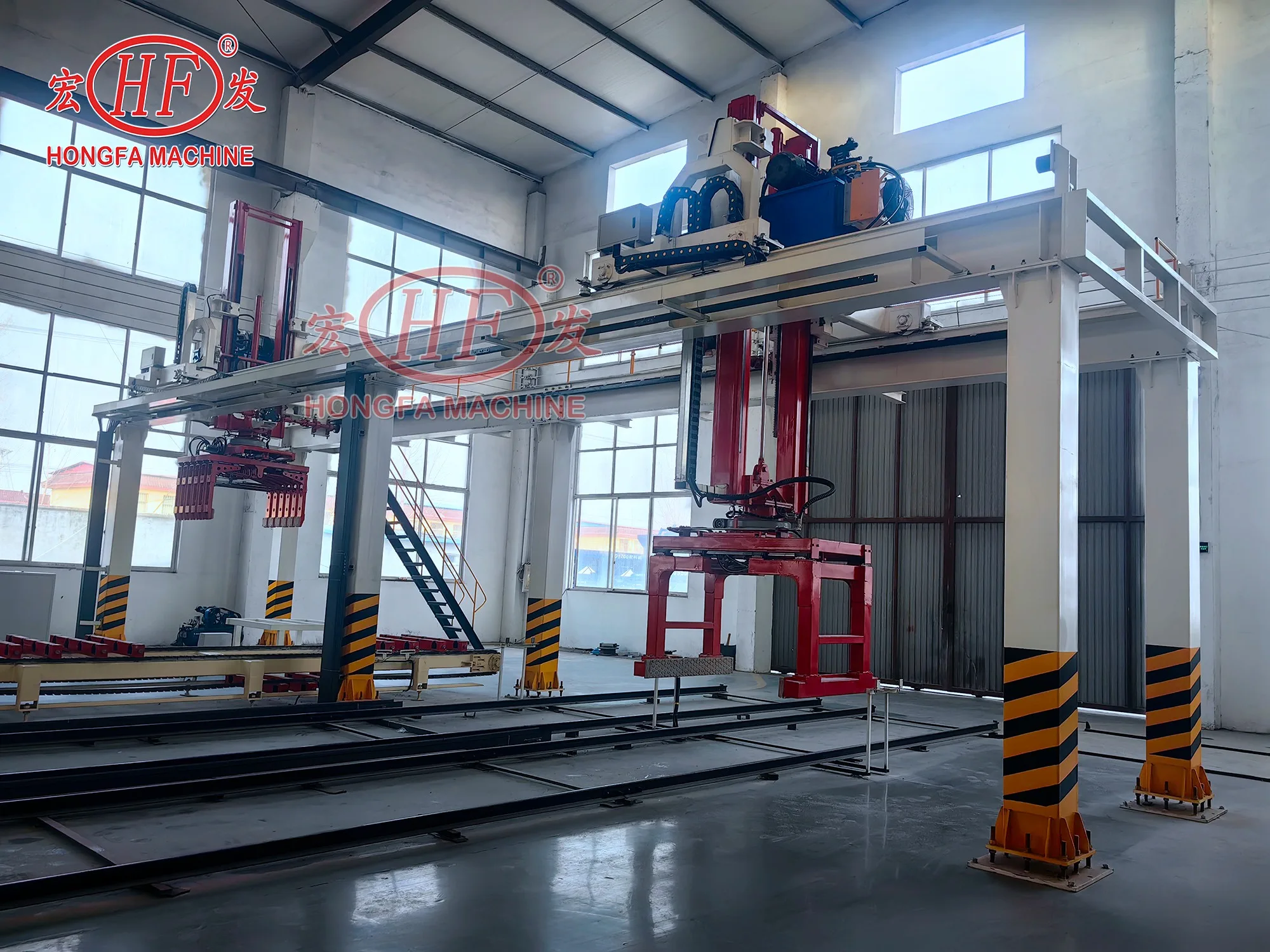

5. Gas block Hoist: hoist block mould and grouping

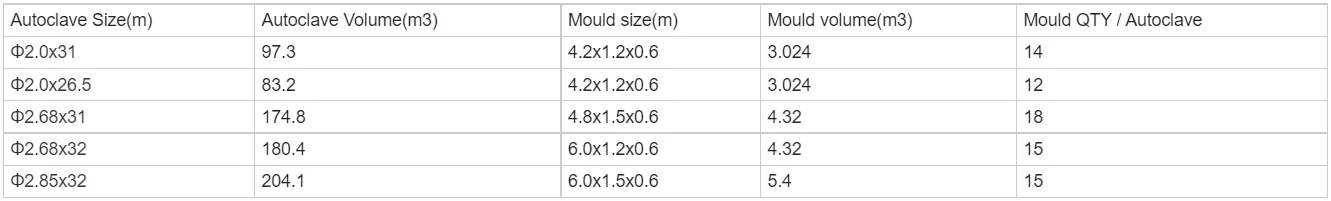

6.Gas block Autoclave

Certifications

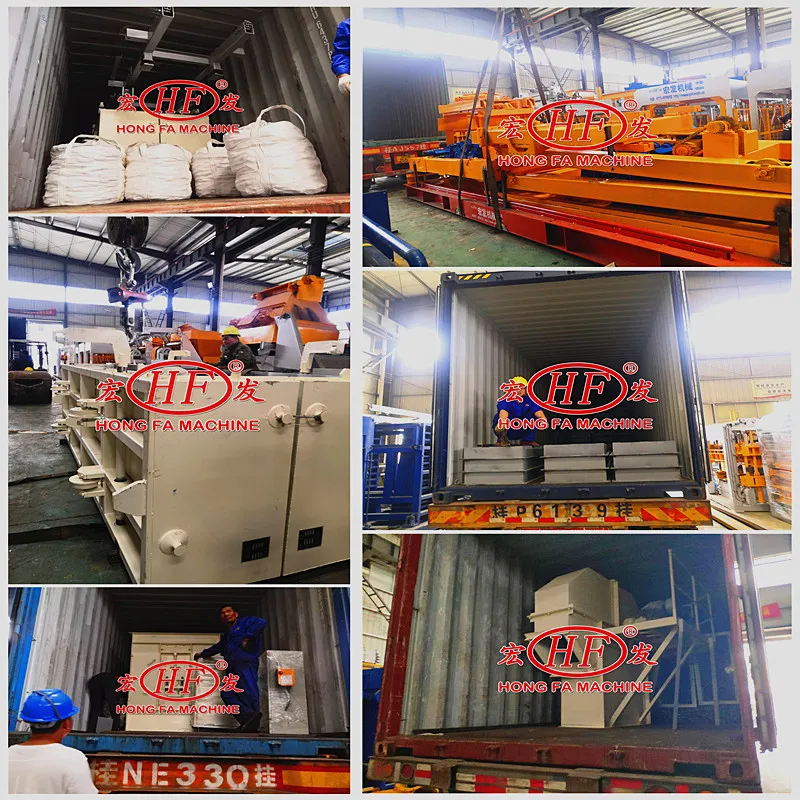

Packing&Shipping

50000m3/year Aac Block Machine Automatic Aac Production Line Aac Block Production Line

Packing: Naked packing or stretch film packing or according to customers' requirements
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer of board making machinery

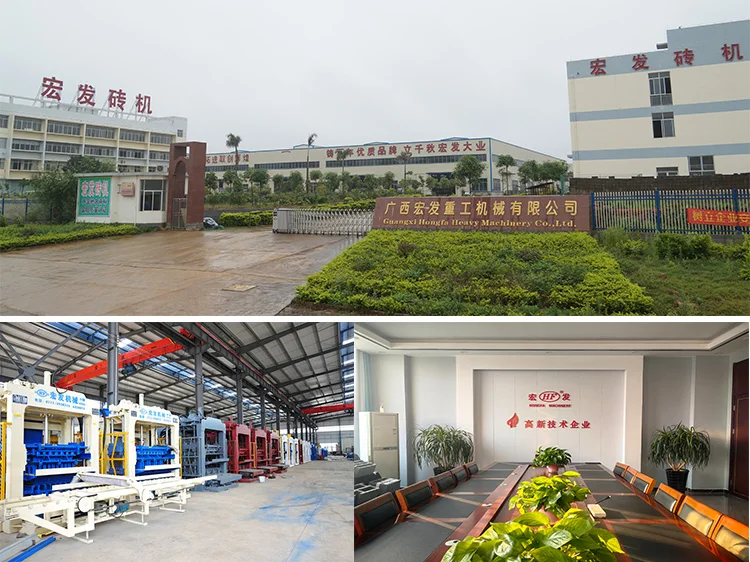

Company Introduction

Hongfa Machinery Group

We are a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine,concrete mixing plant,mixer,concrete brick making machine,concrete tile making machine and concrete pipe making machine etc. with more than 30 years experience and being the biggest manufacturer in China at present.All the products are conformity with the standard of the state, and gets the ISO9001-2000 Quality System certificate, also honored as "One of the Top Ten Famous Brands of Brick & Tile field in China" and other honors.

Exhibitions & cooperations

Hongfa, as a top brand enterprise in China, our products are also exported to Russia, Brazil, Thailand, Indonesia, Vietnam,Angola, Bangladesh, India, Australia, Sudan, etc., 132 countries and regions, deeply welcomed by clients from all around the world.

FAQ

1. Can this machine make my brick or other size block?

We would design and do the mould according to customer's Drawing.

2.Are your company is the manufacture or trading company?

We are Direct factory,not agent or trading company,and the quality and after-sale services is quaranteed.

3.What is the guarantee period?

We guarantee for one year after installation finished at buyer's factory.

4.What is your terms of payment ?

30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).

5.The price cover to what equipment?

Please refer to our quotation list.

Sales Manager :Tina Huang
Tel:0086-18275773233(whatsApp)
Fax:0086-771-6036901
Guangxi Hongfa Heavy Machinery Co., Ltd.
Wesite: www.gxhongfa.cn
Factory add: Linyi city, Shandong province & Nanning city, Guangxi Province, China
