Automatic Cement Blocks Making Machine Interlocking Paver Making Machine Zigzag Kerbstone Tile Brick Making Machinery

(17 Lượt)

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Nhà sản xuất, chế tạo • 2 năm •

Giá

575,000,000 đ

Giá sỉ

0986xxxxxx

Giá số lượng lớn

0986xxxxxx

Automatic Cement Blocks Making Machine Interlocking Paver Making Machine Zigzag Kerbstone Tile Brick Making Machinery

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Automatic Cement Blocks Making Machine Interlocking Paver Making Machine Zigzag Kerbstone Tile Brick Making Machinery

Nhà cung cấp

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Thông tin nha cung cấp của bạn

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

automatic cement blocks making machine interlocking paver making machine zigzag kerbstone tile brick making machinery

Product Specifications

QT8-15 Brick Machine Making Brick Machine Brick Making Machinery

1) The motor for the host machine is Germany SIEMENS brand
2) Control PLC: we select original Japan Mitsubishi PLC combine with independently develop machine control program, assure stable and high efficiency working status
3) The switch will use France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54- 58 HRC so that the mould can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.

Overall Dimension	8300×1560×3000(mm）
Rated pressure	21MPa
Main vibration form	Hydraulic Platform vibration
Cycle Time	15-20seconds
Vibrating Frequency	2800-4500 rolls/minute
Vibration	690-900KN
Motors Power	55.5KW
Pallet Size	95090025(mm)
Weight	9T

Advantages Of The QT8-15 Brick Machine Making Brick Machine Brick Making Machine

Productivity Of QT8-15 Brick Machine Making Brick Machine Brick Making Machinery
Item	Size(mm)	molding cycle	Pcs/mold	Output per hour
Hollow block	400200200	15-20 s	8	1440-1920pcs
Solid brick	24011553	15-17 s	45	107520-124096
Paving brick	24011590	15-20 s	18	3240-4320pcs

Raw Material

A. 8-10% cement, 30-40 % sand , 50-60% crushed stone.

B. 8-10% cement, 30% fly ash, 60% sand or stone powder

Main Parts of Production Line

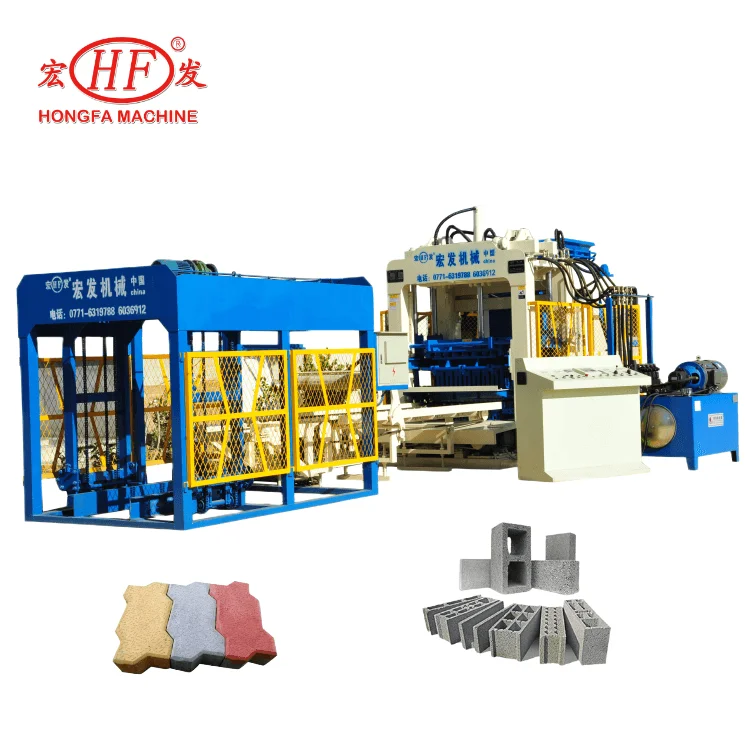

QT8-15 Brick Making Machinery Production Line

Other parts you may need except for block machine
Total production process including aggregating, mixing, molding, demolding, stacking and tranferring. Except for block machine, we also offer other parts such as cement silo, batching machine, conveyor belt, mixer, stacker, pallets(bamboo/PVC/fiber) etc.
We offer free layout design if you have got a land and want rough idea about the workshop. We would like to add value before you make final decision.

Concrete Mixer

GMT Pallets

Packing and Shipping

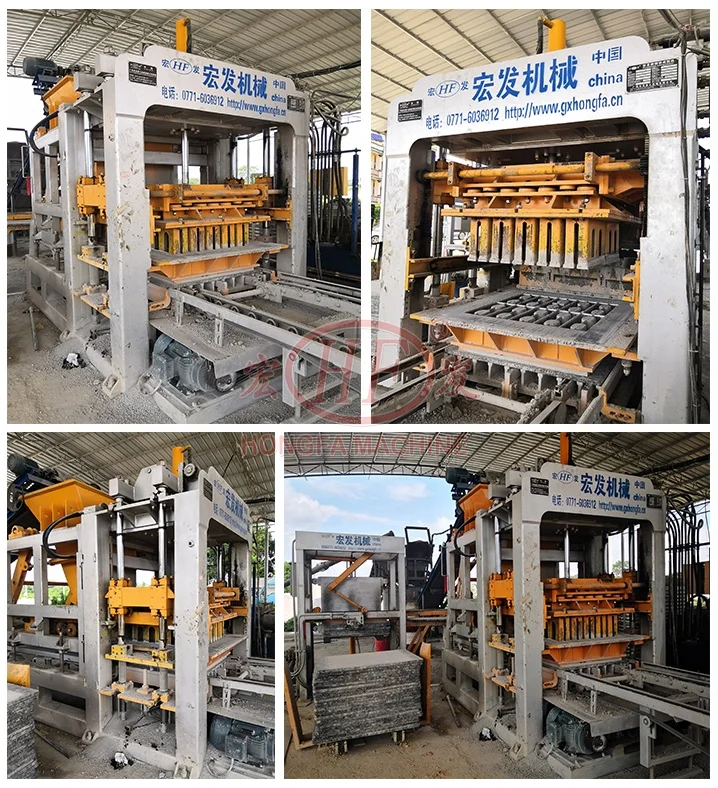

Client cases

Our Service

Pre-sale Service Support

According to each customer's demand and budget, we offer you the professional solution, process flow design and production
equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the
order. We will arrange cars, hotels for the visiting customers.

After-sale Service Support
Assist clients to finish the factory planning. Before delivery equipment to customer s, complete debugging and checking.

Arrange engineers to guide installation at customer factories and train workers on how to operate machines

Company Profile

--- Company Advantage - - -

We are a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making

machine,concrete mixing plant,mixer,concrete brick making machine,concrete tile making machine and concrete pipe making machine etc. with more than 34 years experience and being the biggest manufacturer in China at present.All the products are conformity with the standard of the state, and gets the ISO9001-2000 Quality System certificate, also honored as "One of the Top Ten Famous Brands of Brick & Tile field in China" and other honors.
