Product Description

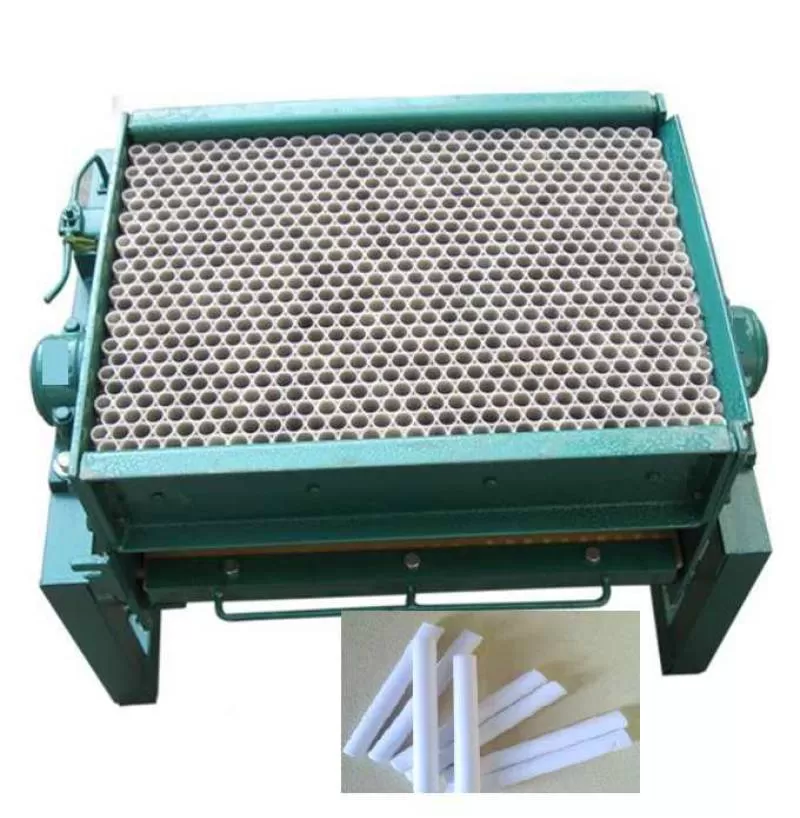

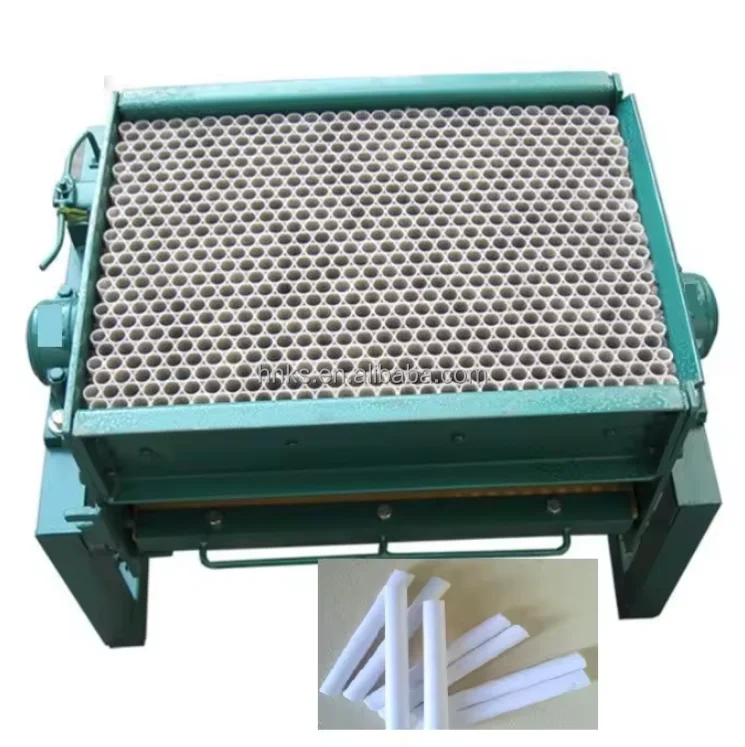

School chalk machine,tailor chalk machine ,Gypsum Powder Chalk Machine
Introductions and specifications:
The machine is supplied water automatically, mixing material by electric mixer, filling mould, taking off mould, all the work are
in a round assembly-line. The work efficiency is more higher than the traditional machine. And it can save 30% material. eligible
product is 99%.The chalk size and shape can be customized Chalk production process
1. Mold evenly brush oil, brush back and forth with a wide brush, brush the new mold should be more oil.
2. The mold plate moving up and down a few times, the screw top and the bottom plate comes into contact.
3. Turn on the water, turn on the water with a movable foot switch pedal to pedal in the end, until the water in the water last.(First mold first feed, add water)
4. Addition, the quantitative good gypsum powder into the mixing bucket.
5. Mixing, stirring for 10-20 seconds to start the motor.
6. Put the pulp, put a good brush oil stirred to die bottom of the barrel, hit the switch to open the pulp slurry was stirred well into the mold until the stream last.
7. Calibrating with a plastic scraper to scrape the pulp mold hole, scrape out the remaining pulp mold mouth gelling.
8. A mold, a new mold die not too late. Chalk can feel a little hard to top 2-5 mm, 1 to 2 minutes over again ejection.
Introductions and specifications:
The machine is supplied water automatically, mixing material by electric mixer, filling mould, taking off mould, all the work are
in a round assembly-line. The work efficiency is more higher than the traditional machine. And it can save 30% material. eligible
product is 99%.The chalk size and shape can be customized Chalk production process
1. Mold evenly brush oil, brush back and forth with a wide brush, brush the new mold should be more oil.
2. The mold plate moving up and down a few times, the screw top and the bottom plate comes into contact.
3. Turn on the water, turn on the water with a movable foot switch pedal to pedal in the end, until the water in the water last.(First mold first feed, add water)
4. Addition, the quantitative good gypsum powder into the mixing bucket.
5. Mixing, stirring for 10-20 seconds to start the motor.
6. Put the pulp, put a good brush oil stirred to die bottom of the barrel, hit the switch to open the pulp slurry was stirred well into the mold until the stream last.
7. Calibrating with a plastic scraper to scrape the pulp mold hole, scrape out the remaining pulp mold mouth gelling.
8. A mold, a new mold die not too late. Chalk can feel a little hard to top 2-5 mm, 1 to 2 minutes over again ejection.
Specification
Model | HX800-1 | HX800-2 | HX800-4 | HX800-6 |
Capacity | 50000-60000 pieces per day | 120000-150000 pieces per day | 230000-250000 pieces per day | 380000-40000 pieces per day |
Mould number | one | two | four | six |
One mould chalk quantity | 800 pieces/mould | 800 pieces/mould | 800 pieces/mould | 800 pieces/mould |
Machine weight (kg) | 50 kg | 280 kg | 400 kg | 550 kg |
Machine packing size (CBM) | 0.12 CBM | 1.6 CBM | 2 CBM | 2.5 CBM |
Worker needed | one operator | one operator | one operator | two operators |
Details Images

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are professional manufacturer of agricultural and food process machinery.We are manufacture and sell machines to our clients over 14 years.We are gold supplier on Alibaba for more than 10 year,every clients will get full protection for orders with our free Trade Assurance.Welcome visit and hope have opportunity to make cooperation in near future.
"Quality, Price, Time and Service" is the tenet of our business.
"Credit, Reposal, Negotiation and Cooperation" is our standard. "Solidity, Creation,
Factuality and Dedication" is the spirit of our company.
FAQ
1. who are we?
We are based in Henan, China, start from 2008,sell to Domestic Market(40.00%),Africa(20.00%),Southeast Asia(20.00%),Eastern Europe(10.00%),Oceania(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Russian
We are based in Henan, China, start from 2008,sell to Domestic Market(40.00%),Africa(20.00%),Southeast Asia(20.00%),Eastern Europe(10.00%),Oceania(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Russian
