100 Inch 4K Smart Board Interactive Whiteboard All in One PC Touch Screen Interactive Plat Panel for Conference and Education


100 Inch 4K Smart Board Interactive Whiteboard All in One PC Touch Screen Interactive Plat Panel for Conference and Education
Các đề xuất khác cho doanh nghiệp của bạn
Những điểm chính về sản phẩm
Thuộc tính cụ thể của ngành
Các thuộc tính khác
Mô tả sản phẩm từ nhà cung cấp
Mô tả sản phẩm
Smart Interactive Whiteboard | ||||||||
Panel | Panel Size | 50" | 55" | 65" | 70" | 75" | 86" | 100" |
Panel Brand | LG/AUO/CMO/BOE/CSOT | |||||||
Blacklight Type |
DLED | |||||||
Resolution | 3840x2160 | |||||||
Response Time |
5ms (typ.) | |||||||
Visual Angle |
178°(H)/178°(V) | |||||||
Colour | 1.07G(8/10bit) | |||||||
Life(typ) | 600,000 hrs (min.) | |||||||
Contrast (typ) |
5000:1 | |||||||
Brightness (cd/m2) |
330±30 | 330±30 | 350±30 | 350±30 | 350±30 | 350±30 | 350±30 | |
Display Area |
1095.84 *616.41 |
1209.6*680.4 |
1428.48 *803.52 |
1541*865 |
1649.66 *927.94 |
1895.04 *1065.96 |
2203*1240 | |
PCB Solutions | Teaching Type | MSD6A658, A53+Mail-G450, 1.5GHz, Android 6.0, 1G RAM+8G ROM | ||||||
Conference Type | MSD648, Cortex A53+T720MP2,1.5GHz, Android 6.0, 2G RAM+8/16/32G ROM | |||||||
Input Port | TV | *1 | *1 | *1 | *1 | *1 | *1 | *1 |
MINI- YPBPR |
*1 | *1 | *1 | *1 | *1 | *1 | *1 | |
MINI- AV |
*1 | *1 | *1 | *1 | *1 | *1 | *1 | |
PC AUDIO | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
VGA | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
USB 2.0 | *2 (Front 1) | *2 | *2 | *2 | *2 | *2 | *2 | |
ALL-USB Input | 0 | *2 (Front) | *3 (Front) | *3 (Front) | *3 (Front) | *3 (Front) | *2 (Front) | |
PC USB 3.0 Input | *1 (Front) | *1 (Front) | *1 (Front) | *1 (Front) | *1 (Front) | *1 (Front) | *1 (Front) | |
HDMI Input |
*3 (Front 1) | *3 (Front 1) | *3 (Front 1) | *3 (Front 1) | *3 (Front 1) | *3 (Front 1) | *3 (Front 1) | |
TF for Android |
*1 | *1 | *1 | *1 | *1 | *1 | *1 | |
RS-232 | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
RJ-45 | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
Output Port |
Earphone Out |
*1 | *1 | *1 | *1 | *1 | *1 | *1 |
MINI- AV Out |
*1 | *1 | *1 | *1 | *1 | *1 | *1 | |
SPIDF | *1 | *1 | *1 | *1 | *1 | *1 | *1 | |
Touch- USB out (Type B) |
*2(Front 1) | *2(Front 1) | *2(Front 1) | *2(Front 1) | *2(Front 1) | *2(Front 1) | *2(Front 1) | |
Language | OSD Language | Chinese, English etc Multi-language | ||||||
Touch Info |
Touch Technology | Infrared touch | ||||||
Touch points |
10/20 Points | |||||||
Response Time | First click<16ms,Repeated click<6ms | |||||||
Input Method |
Fingers, stylus, gloves or any other opaque material medium | |||||||
System Stability | No drift,no change with the environment | |||||||
Min Touch Diameter | 5 mm | |||||||
Touch Accuracy | ± 2mm on more than 95% touch area | |||||||
Touch life times | Over 60,000,000 times | |||||||
Tempered Glass | Glass type | 4mm tempered glass AG, (AR Optional) | ||||||
Luminou -sness |
100% without Glass,90% with AG Glass, 92% with AR Glass | |||||||
PC info | CPU | i3/i5/i7 | ||||||
RAM | DDR3 4G (Support Max to 8G) | |||||||
ROM | SSD 128G (Optional: 256G, or 500G, 1T) | |||||||
Interface | HDMI×1,VGA×1,USB2.0×2,USB3.0×2,RJ45×1,PCAUDIO×1,MIC×1,RS232×1 | |||||||
Ethernet | Gigabit LAN(RTL8111E) | |||||||
Wireless | Support Wifi &Blutooth(Optional) | |||||||
AUDIO | Realtek® High Definition Audio | |||||||
Working Condition | Temperature: -20~60℃; Humidity: 0~85%RH | |||||||
Power | DC19V 4.7A | |||||||
Power | Input Voltage | AC100 V ~ 240 V, 50-60 Hz | ||||||
Power Consumption | ≤130W | ≤150W | ≤250W | ≤270W | ≤300W | ≤350W | ≤380W | |
Standby | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | |
Environm -ental |
Working temperature | 0℃~40℃ | ||||||
Storage temperature | -20℃~55℃ | |||||||
Storage humidity | 10%~90% RH Non-Condensing | |||||||
Working humidity | 20%~80% RH Non-Condensing | |||||||
Package Details |

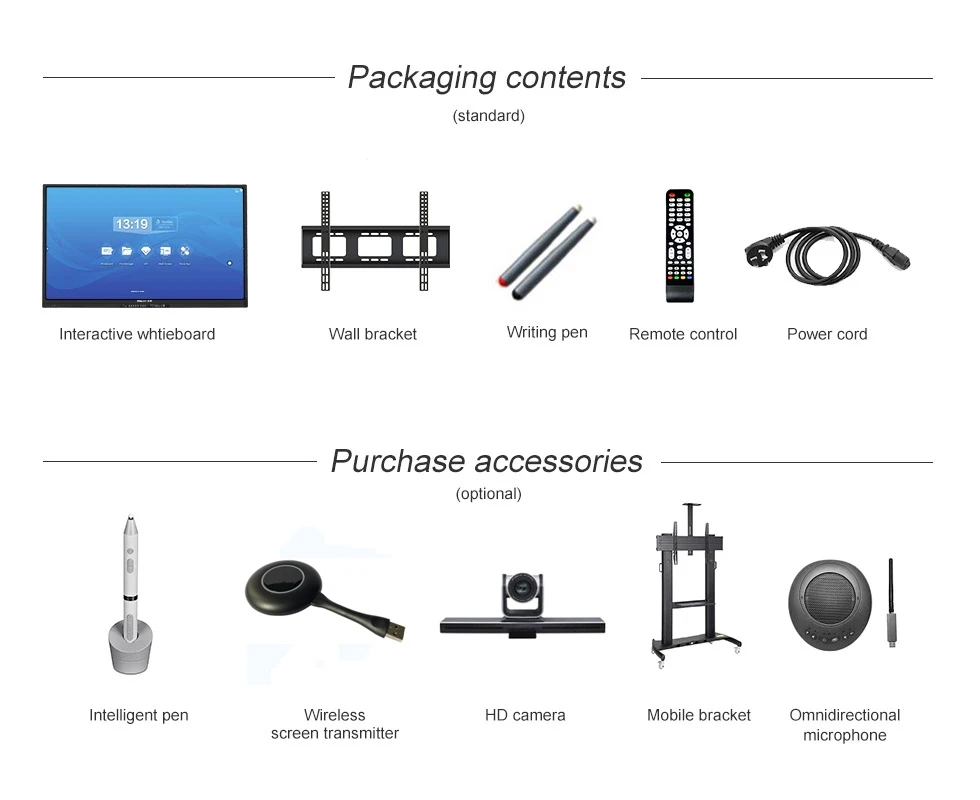

Accessory | Remote*1, Power Line*1, Touch Pen*1, Qualification*1, Warranty Card*1, Wall Mount*1 | ||||||
Net weight | 36KG | 27KG | 44KG | 50KG | 65KG | 76KG | 128KG | |
Groos weight | 42KG | 35KG | 49KG | 65KG | 85KG | 97KG | 190KG | |

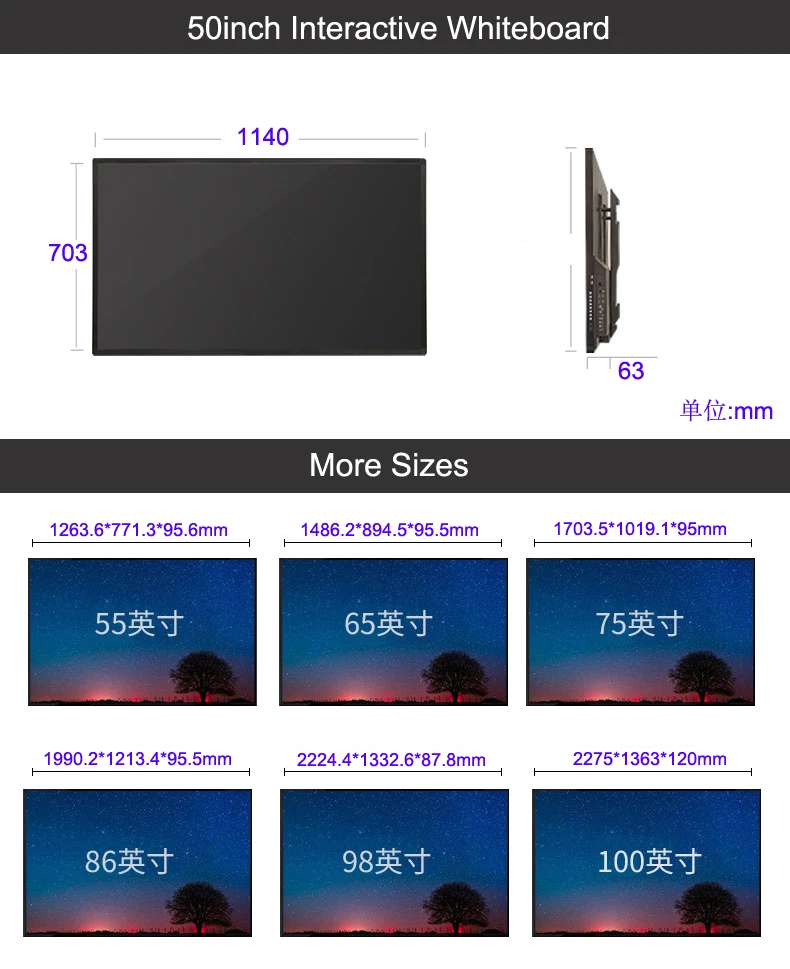

Monitor Dimension (mm) |
1140*703 *63 |
1263.6*771.3 *96 |
1486.2*894.5 *96 |
1609*980 *98 |
1703.5*1019 *95 |
1990*1213.4 *96 |
2275*1363 *120 |
|
Packing Dimension (mm) |
1300*850 *170 |
1390*880 *220 |
1720*1125 *210 |
1755*1130 *225 |
1865*1235 *255 |
2150*1342 *260 |
2435*1490 *275 |
1. PaymentTerms:
* For Smaple: 100% in advance.( T/T,Paypal, Western Union, Cash.)
* For Bulk Orders: 30% deposit in advance by T/T ,70% after finished before shipment. (B/L, L/C, Cash also Available after discussion Permit )
2. Packing: By Box, Inner: Polyfoam, Plastic Bags, Samples for Wooden Packaging Protect.
3. Delivery Date: Samples within 7 days, Bulk Within 35 days.
4. Shipping: By DHL, FedEx, TNT, UPS etc Express, By Air, By Sea.
Apply to Home, Hotel, School, Exibition,Meeting, Hospital, Beauty Institutions etc.
1. Q: How many years had your factory established?
A: Gold&Lucky Electronics already produce Interactive Flat Panel for 10 years and export to all over the world for 10 years. Had beenqualified bythirdparty "SGS" andawarded "VerifiedCustom Manufacturer" inAlibaba.
2. Q: Whereisyourfactorylocated?
A: OurfactoryislocatedinGuangzhouCity,GuangdongProvince,China.
Allourclients,fromhomeorabroad,arewarmlywelcometovisitus!
3. Q: Can we have our brand logo to be printed on the units or packaging?
A: Yes, if you have good quantity, we can print your brand logo on the product, and also can show your logo on the tv screen when start on the tv & packaging with your authorizied logo.
4. Q: Howdoesyourfactorydoregardingqualitycontrol?
A: Qualityispriority.Gold&Luckypeoplealwaysattachgreatimportancetoquality
controllingfrom theverybeginningtotheveryend.
Ourfactoryhaveindependentimportandexportlicense.
PasstheOnsiteCheckandSupplierAssessmentofAlibaba and 3C, CE, RoHs, FCC.
5. Q:Is sample order available?
A: Yes, it’s available upon request.
6. Q: HowabouttheWarranty?
A:OurWarrantyisOneyear(If you want expand the warranty time also can discuss).Wecanhelpyourepair or change themachineforfreeunderwarranty.
7. Q: What is your payment terms?
A: For Smaple: 100% in advance.( T/T,Paypal, Western Union, Cash.)
For Bulk Orders: 30% deposit in advance by T/T ,70% after finished before shipment.
(B/L, L/C, Cash also Available after discussion Permit )
